SCOTCHMAN CPO 315 HFA CNC 12.5 in. Automatic CNC Cold Saw | 230v, 3-phase
Or as low as $7,153.50 USD/month over 36 months
Or as low as $7,153.50 USD/month over 36 months

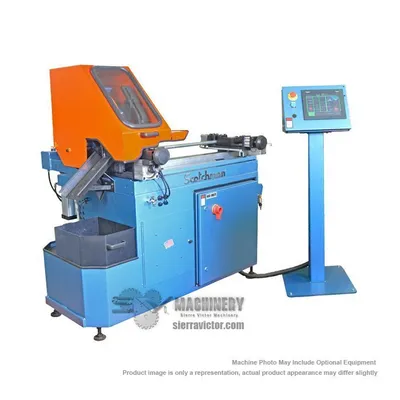

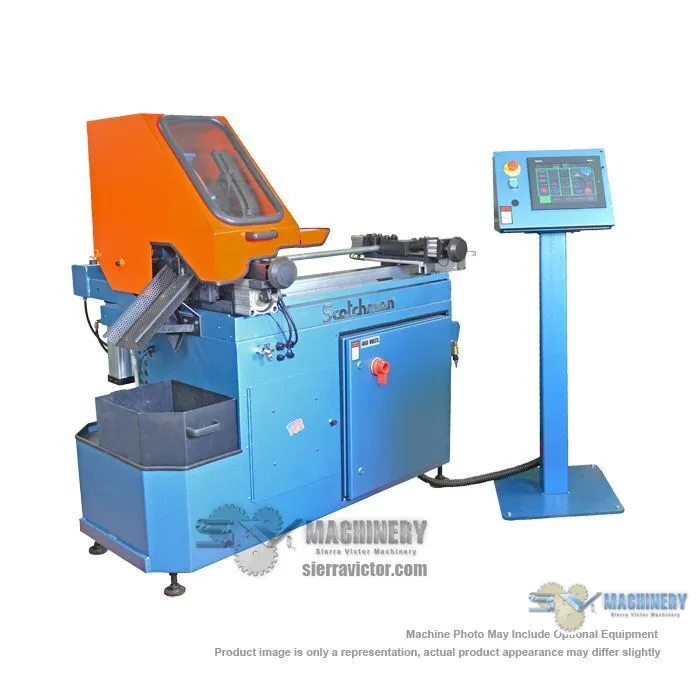

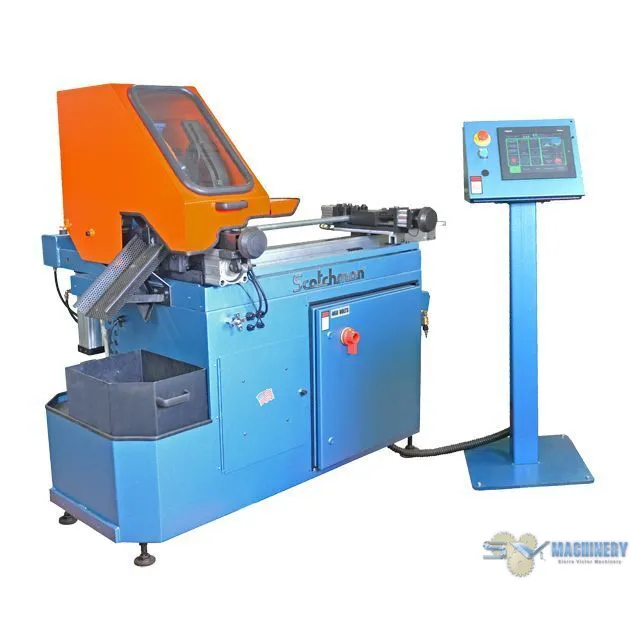

The CPO 315 HFA-CNC saw is fully programmable so every cut length is fast and accurate. It uses a 30" linear actuator, driven by a servo motor.With its 12-1/2" blade, it allows you to cut up to 3-1/2" diameter tube or pipe and up to 1-3/4" solid material, while maintaining a length tolerance of +or- .006" per index and has a squareness tolerance of +or- .002" per diameter inch.The CPO 315 HFA-CNC's standard features include a large 10" touch screen control, an unlimited length setting with a 30" single length shuttle and a variable speed control.
* Cutting Capacities Based on Mild Steel
** Available Voltages:
045012: CPO 315 HFA CNC - 230V 3 PH (VARIABLE SPEED 11-177 RPM)
045015: CPO 315 HFA CNC - 460V 3 PH (VARIABLE SPEED 11-177 RPM)
047020: CPO 315 HFA/NF CNC - 230V 3 PH (3000 RPM)
047040: CPO 315 HFA/NF CNC - 460V 3 PH (3000 RPM)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts
