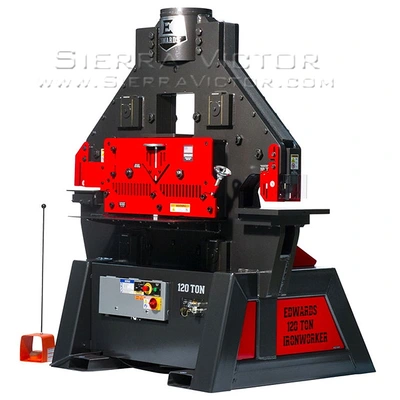

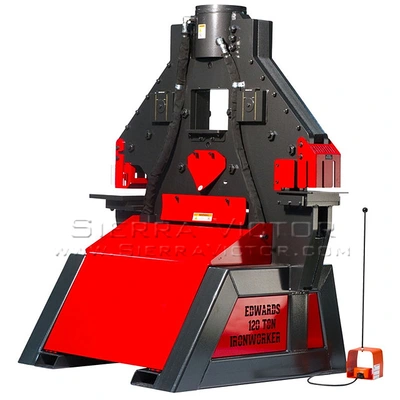

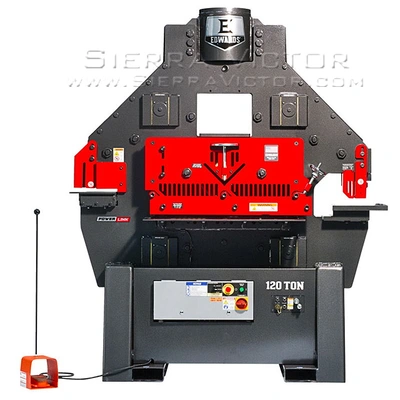

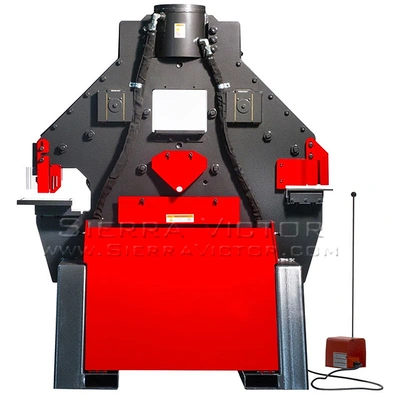

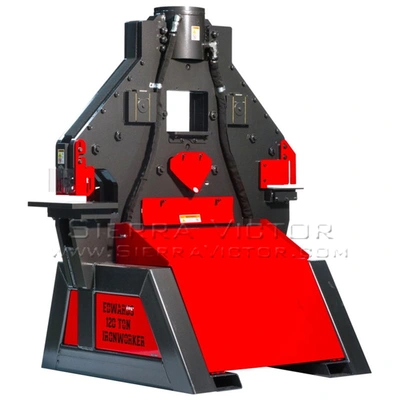

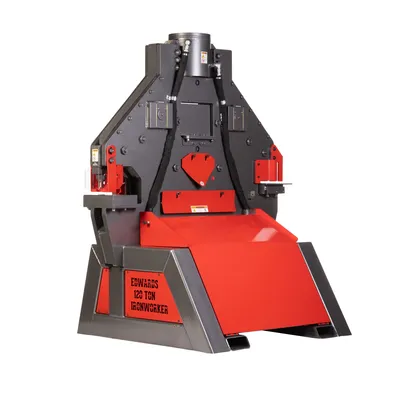

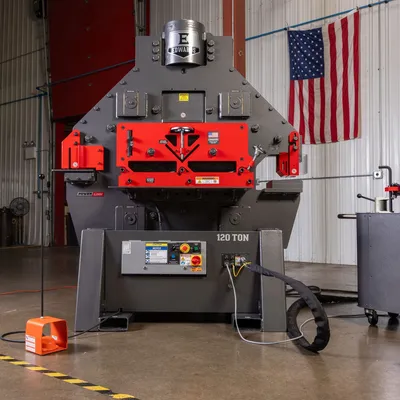

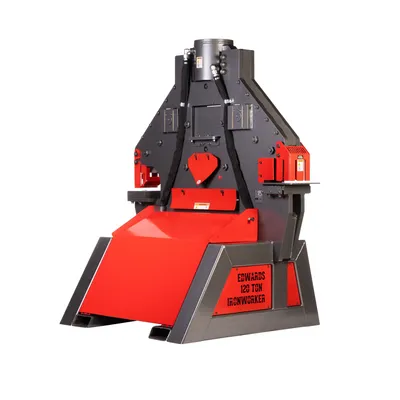

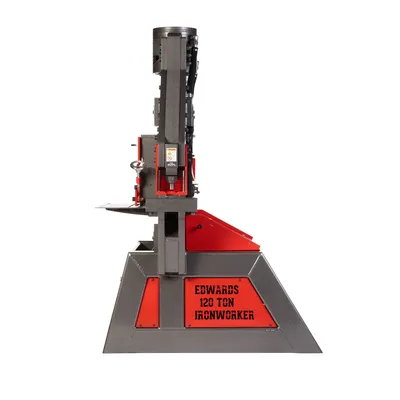

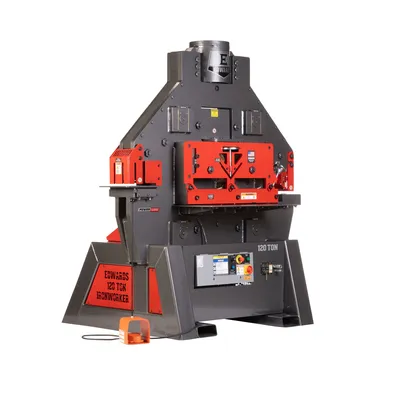

EDWARDS IW120 120 Ton Hydraulic Ironworker with PowerLink | 230v, 3-Phase

EDWARDS IW120 120 Ton Hydraulic Ironworker with PowerLink | 230v, 3-Phase

Have one to sell?
386-304-3720
dan@sierravictor.com
$47,499.00 USD

Or as low as $7,124.85 USD/month over 36 months

Fulfillment
Freight  |  Free Shipping
Have one to sell?

Overview

Type:
Ironworkers
Manufacturer:
EDWARDS
Model:
IW120
Stock #:
ED9-IW120-3P230-A
Status:
For Sale

Description

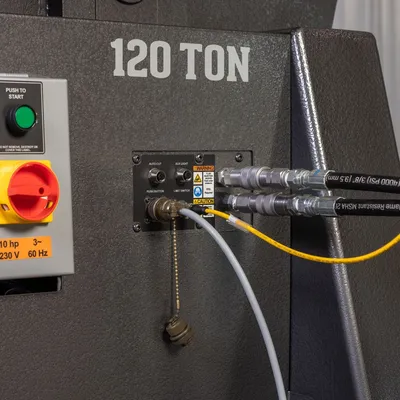

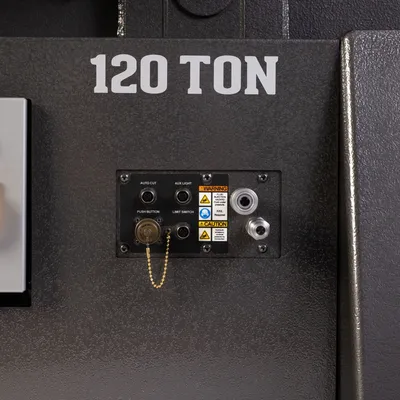

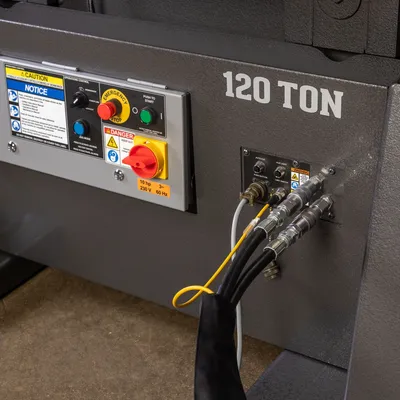

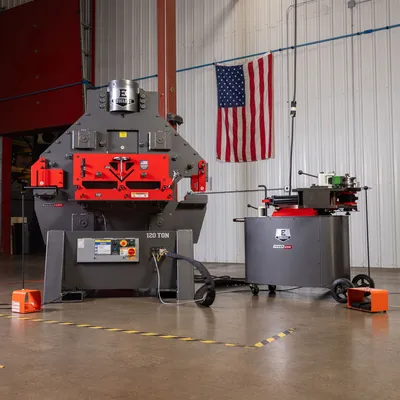

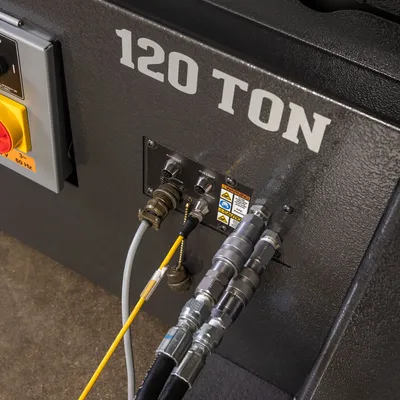

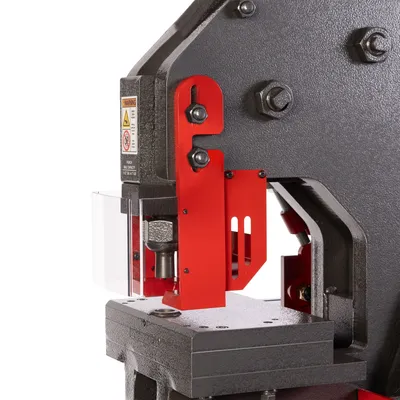

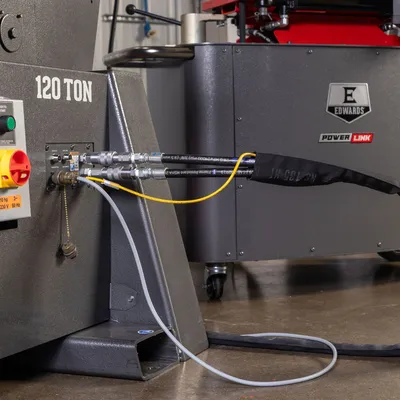

The Edwards 120 Ton ED9-IW120 Ironworker offers the most in capacity and versatility. Standard features include a Punch Assembly, 24" wide Flat Bar Shear, high capacity Angle Shear, Coper Notcher and a universal open tooling station for optional Tooling Accessories allowing you to select the perfect tool for your needs.The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

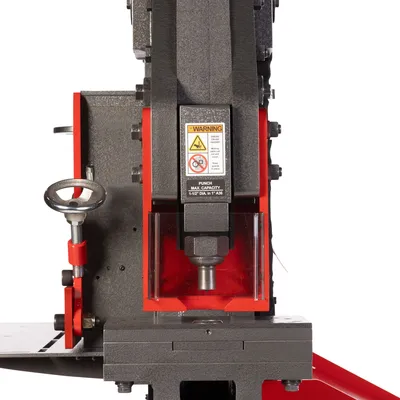

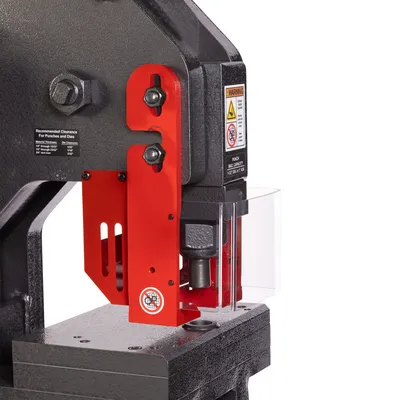

Punch Tonnage120 T108,862.3 kg
Punch - Work Height36.625"930.27 mm
Punch - Throat Depth11"279.4 mm
Punch - Open Height9-1/8 in.9-1/8 in.
Punch - Shut Height7 in.7 in.
Punch - Stroke2.5 in.2.5 in.

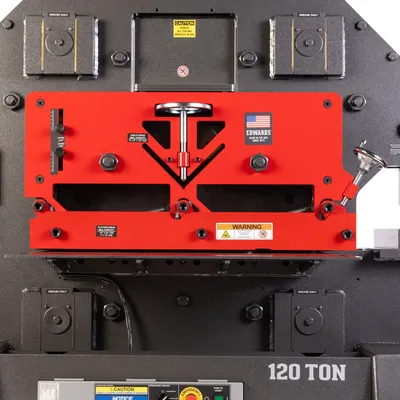

Flat Bar Shear - Max. Capacity1/2 x 24 in., 1 x 12 in.1/2 x 24 in., 1 x 12 in.
Flat Bar Shear - Max. Round Capacity1-1/4 in.1-1/4 in.
Flat Bar Shear - Max. Square Capacity1-1/4 in.1-1/4 in.
Flat Bar Shear - Work Height33-1/4 in.33-1/4 in.

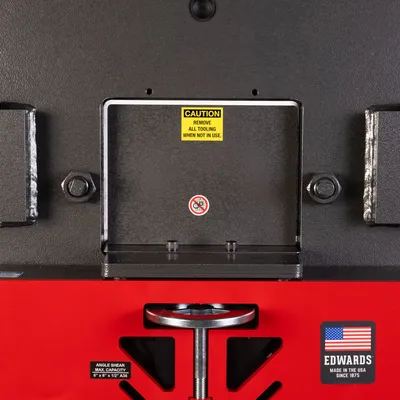

Open Cavity - Height9"228.6 mm
Open Cavity - Width11.75"298.45 mm
Open Cavity - Work Height51.75"1,314.4 mm

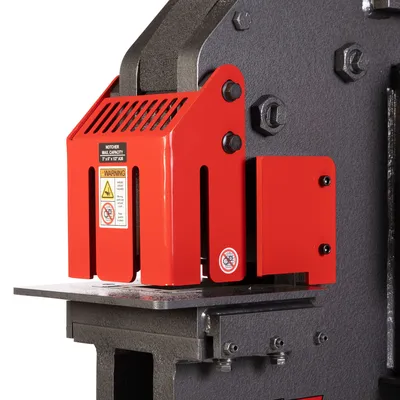

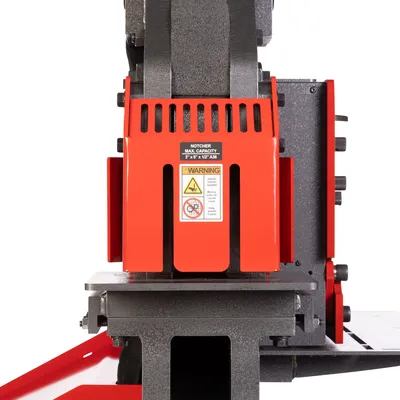

Coper Notcher - Max. Capacity3 x 6 x 1/2 in. (Max. Size)3 x 6 x 1/2 in. (Max. Size)
Coper Notcher - Work Height40 in.40 in.
Motor10 HP10 HP
Electrics230v, 3-Phase230v, 3-Phase
Hydraulic Pump Size (GPM)2424
Oil Capacity/Reservoir17 gal64.4 L
Cylinder2-3/4 in. ram2-3/4 in. ram
Valve Pressure3800 psi
Rated on65,000 PSI Tensile65,000 PSI Tensile
DimensionsH 79-3/8 x W 60 x D 60 in.H 79-3/8 x W 60 x D 60 in.
Weight5,500 lbs.5,500 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

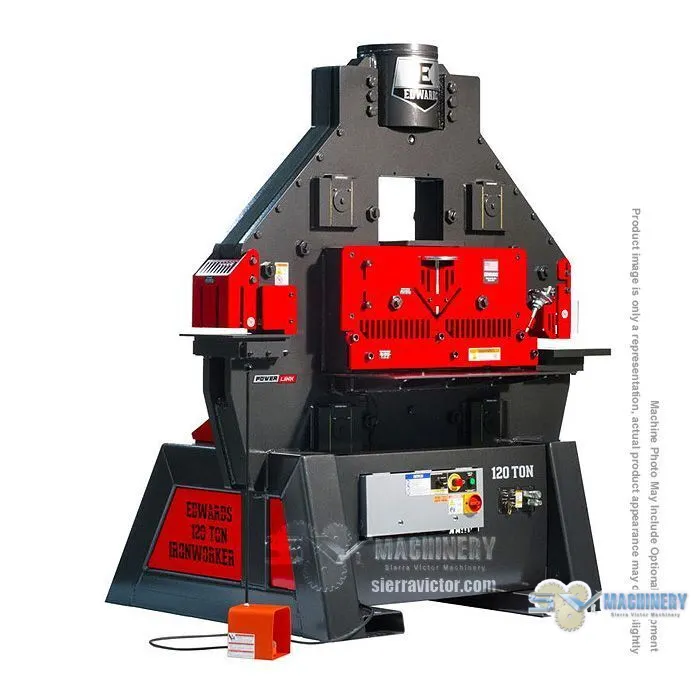

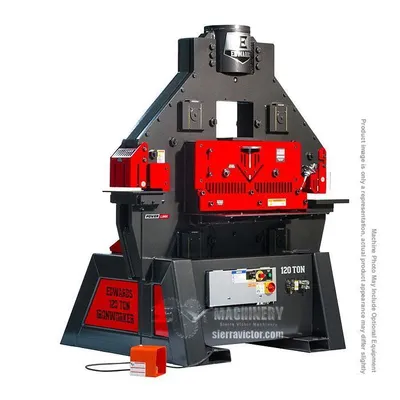

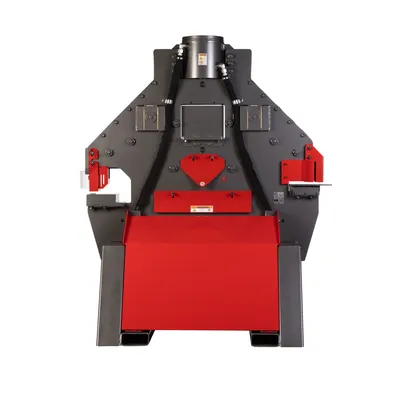

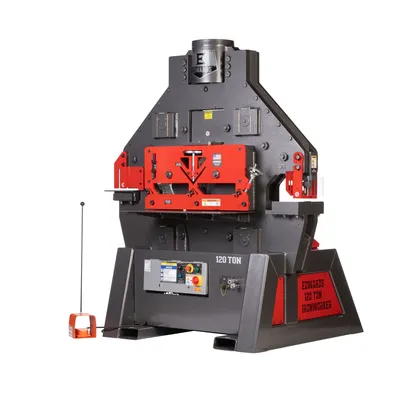

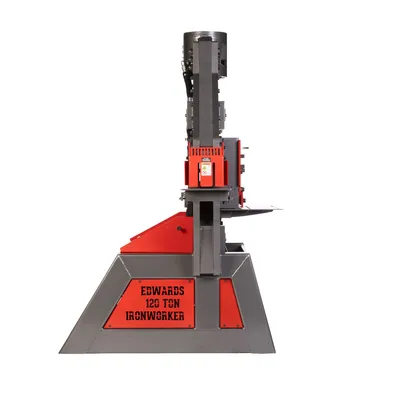

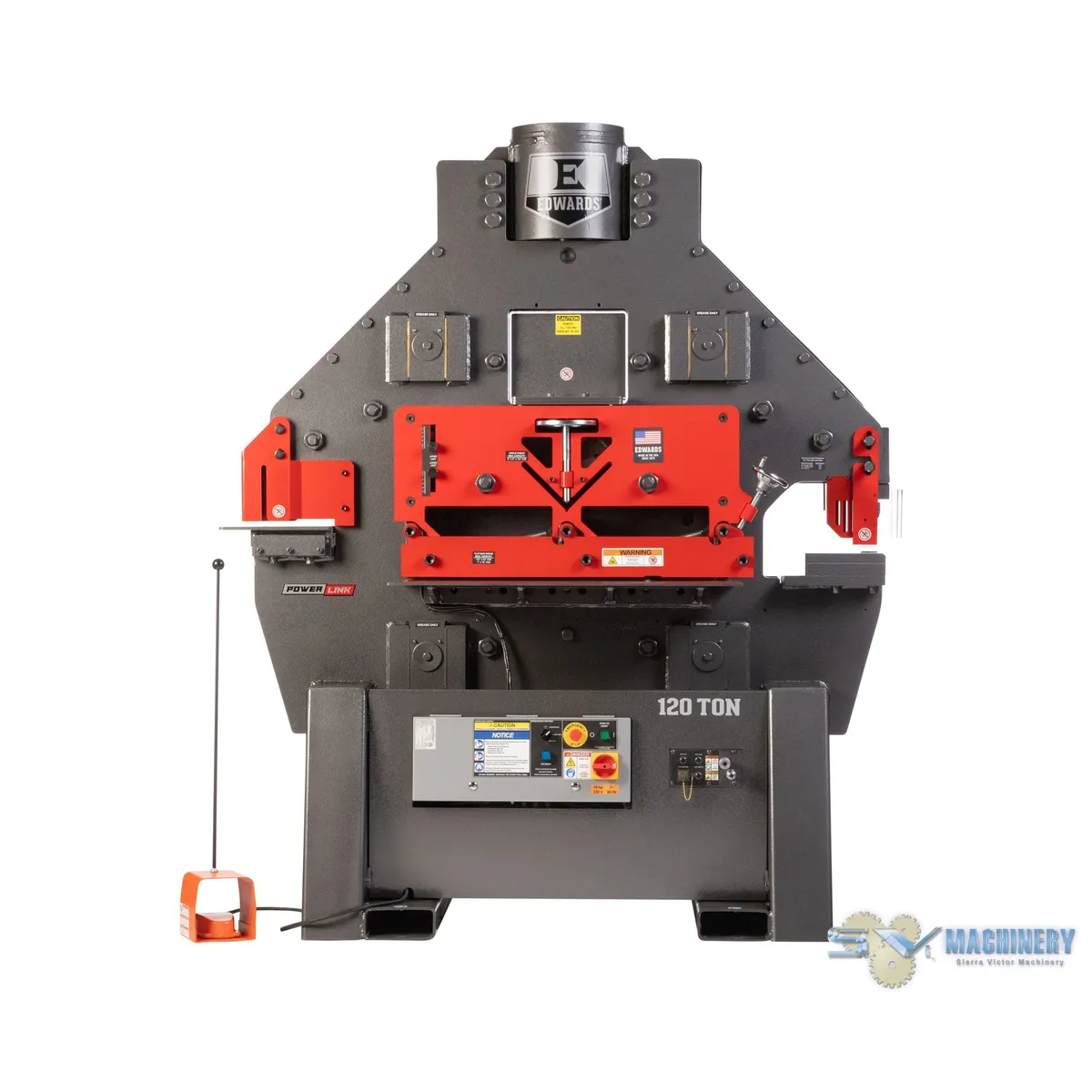

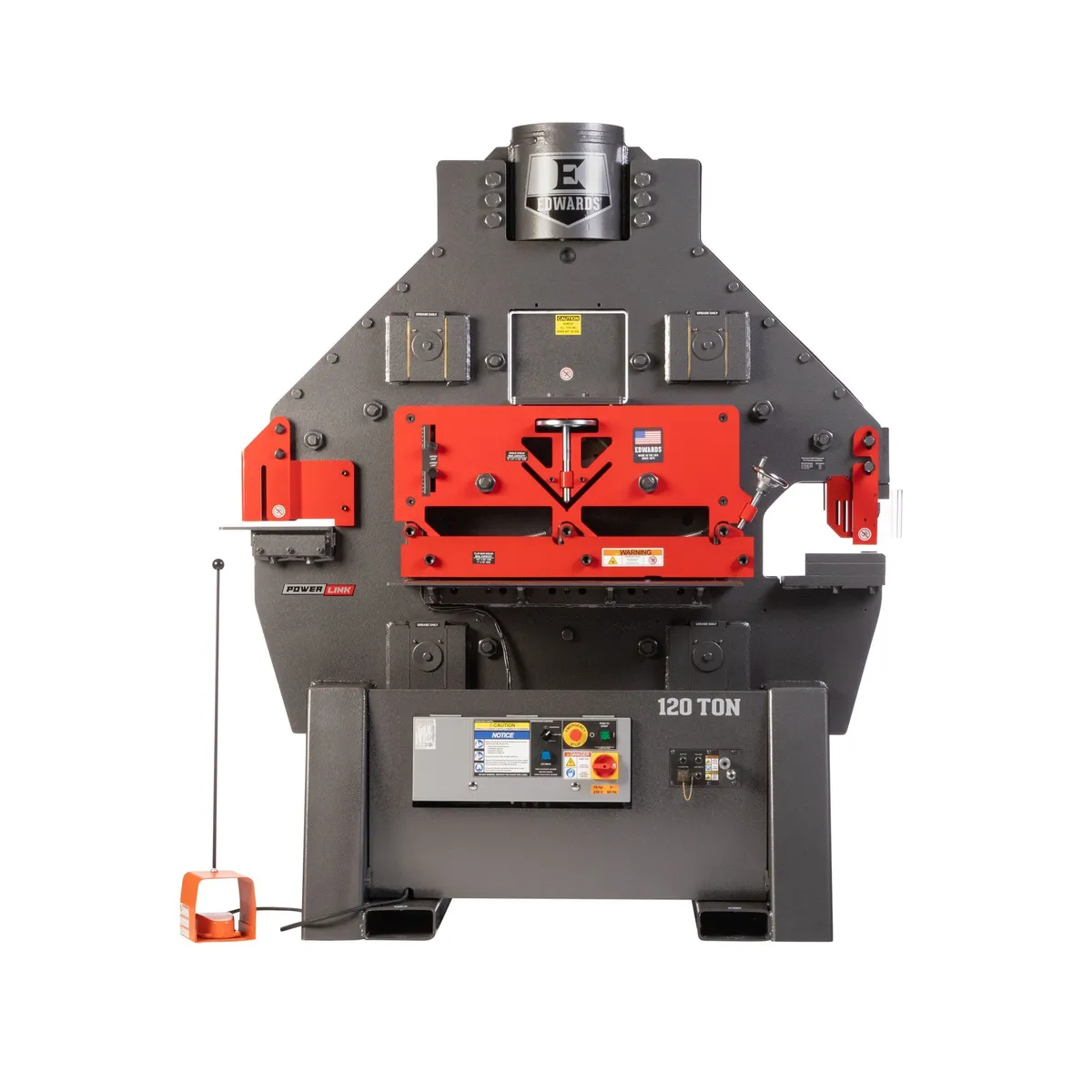

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Optional Models:

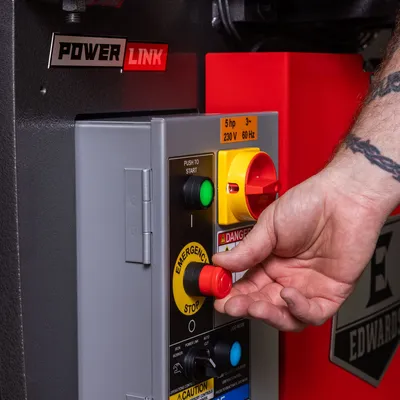

ED9-IW120-3P230-A: 120 Ton Ironworker 3 Phase, 230 Volt with PowerLink
ED9-IW120-3P208-A: 120 Ton Ironworker 3 Phase, 208 Volt with PowerLink
ED9-IW120-3P460-A: 120 Ton Ironworker 3 Phase, 460 Volt with PowerLink
ED9-IW120-3P575-A: 120 Ton Ironworker 3 Phase, 575 Volt with PowerLink

Optional Items - Call for price:
Optional Attachments:
ED9-PRB12: Press Brake Tooling 12" Press Brake
ED9-HAT1000: 10 Ton Tube/Pipe Bender
ED9-HAT5000: Radius Roller
