<h2 style="text-align: center;">TURNKEY PRICE SPECIAL!</h2>
<p style="text-align: center;">Only on In Stock Machines
</p>
<p style="text-align: center;">Includes 4 Axis system, Oil chiller, Dual Intensifier Pumps, Garnet Feeder, Diamond Orifice, All Software On Site Install and Training and FREE Shipping!
</p>
<h3 style="text-align: center;">ALL MACHINES NOW INCLUDE DUAL HEAD INTENSIFIER AS STANDARD EQUIPPED!
</h3>
<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText1" width="195" bgcolor="#CCCCCC">
<div>Working Range
</div>
</td>
<td class="TableText1" width="184">
<div>10' x 6'
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div>Max. Traverse speed
</div>
</td>
<td class="TableText1">
<div>195”/min
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div>Control accuracy:
</div>
</td>
<td class="TableText1">
<div>±0.01mm
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div>Cutting accuracy:
</div>
</td>
<td class="TableText1">
<div>±0.1mm
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts & Labor
</p>
<ul class="TableText">
<li>This machine is built with pride and expertise to give you many years of successful cutting capability. The non-thermal cutting method allows users to cut everything from accurate prototypes to large nested programs for optimal production in virtually any material and a wide range of thicknesses. Many small and large businesses benefit from our products and services and we will do everything we can ensure that your company will grow and succeed in the waterjet cutting industry like so many of our customers already have. With our easy to use controller, software and precision cutting system nearly anyone can make accurate parts individually or nested.</li>

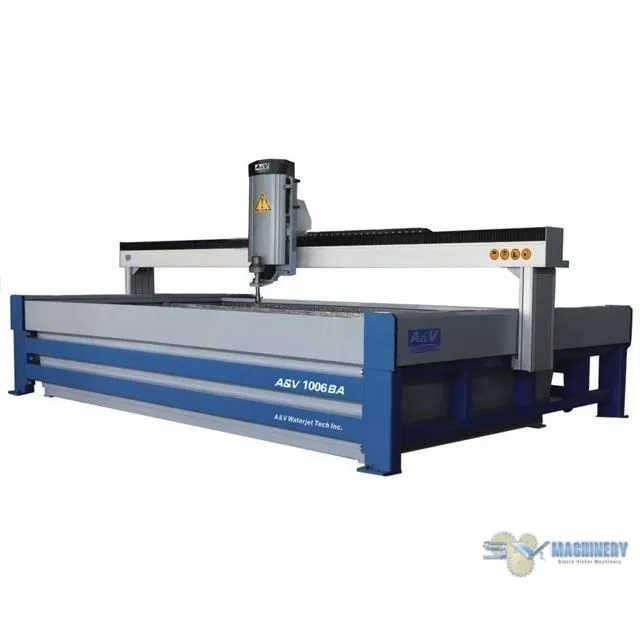

<li>The <strong>AV1006 Water Jet</strong> 4 axis system includes the following:
<ul>
<li>A&V Cutting Table 10’x 6’ </li>
<li>Dual Intensifier Pumps (THIS IS A DOUBLE INTENSIFIER ALLOWS FOR SWITCHING TO 2<sup>ND</sup>
HEAD SO THERE IS NO DOWNTIME WHILE PERFORMING ROUTINE MAINTENANCE) </li>
<li>Windows Industrial PC based controller </li>
<li>Remote Online Support </li>
<li>Automatic Garnet Feeder </li>
<li>A Mirror Hard Disk Copy</li>
<li>2000 Lbs Of Garnet</li>
<li>$1,000 Worth Of Spare Parts</li>
<li>1 Year Parts (not including wear parts) Warranty</li>
<li>Control Software Manual</li>
<li>Machine maintenance and troubleshooting document/videos</li>
</ul>
</li>
<li><strong>Technical Information</strong> - A&V Water Jet System Components:
<ul>
<li>Servo Drives and Motors are made by YASKAWA Japan <br>
(Y-axis is driven by dual motors)</li>
<li> Precision Ball Screw made by Ipiranda, Spain</li>
<li> Linear Guides and Nuts made by SKF, United States </li>
<li>Aluminum Alloy Bridge<strong></strong></li>
<li>Balanced weight distribution<strong></strong></li>
<li>The working range of the table is 10’x6’ </li>
<li>Max. Traverse speed is 195”/min</li>
<li>Control accuracy: ±0.01mm</li>
<li>Cutting accuracy: ±0.1mm</li>
</ul>
</li>
<li> <strong>4-Axis Cutting Head</strong>:</li>
<li class="TableText">A&V four-axis cutting head is the result of our latest scientific research. The main benefit of a four-axis cutting head is to compensate taper, and to make the finished edge completely vertical through the fourth axis - a rotational axis. The four-axis cutting head actually has the structure of a five axis, which purposely has one axis under manual control b.</li>
<li class="TableText">This specially engineered cutting head has performed remarkably in many cutting fields in reducing the processing cost due to increased operating efficiency. Compared with our five-axis cutting head design, it has a maximum limit of a 4 degree angle with a rotational accuracy of 0.01 degrees.</li>
<li class="TableText">For taper compensation, the distance between the cutting head and the surface of the work piece must be maintained with high accuracy. The height positioning accuracy of the four-axis is 0.01mm and the cutting accuracy is 0.1mm, which can easily meet various cutting requirements.</li>
<li class="TableText">In the marble matching process, waterjet cutting with a four-axis cutting head design is simply amazing. When the angle of the cutting head reaches 4 degrees, the finished edge shows tremendous improvement. As can be seen from this picture, there is no gap between the two joined surfaces. Hence, a secondary polishing procedure is no longer required. Thereby, it increases working efficiency and reduces the production cost. </li>
</ul>
