<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="114" rowspan="4" bgcolor="#cccccc" class="TableText">
<div align="center">Roll Capacity
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Mild Steel
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">10 ft x 10 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Stainless Steel
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">10 ft x 14 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Soft Aluminum
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">10 ft x 1/4 in.
</div>
</td>
</tr>
<tr>
<td width="141" bgcolor="#cccccc" class="TableText">
<div align="center">Min. Thickness
</div>
</td>
<td width="257" nowrap="nowrap" class="TableText">
<div align="center">26 ga.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Roll Dia.
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">6.70 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Min. Bending Dia. Inch
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">9 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Pre-bend inch
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">0.12 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Rolls Speed ft/min
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">17
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Rolls Opening
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">1/2 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Main Motor
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">7-1/2HP, 3PH, 220V or 440V
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Weight
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">5,150 lbs.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Overall Dimensions
</div>
</td>
<td nowrap="nowrap" class="TableText">
<div align="center">152 x 35 x 56 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul class="TableText">

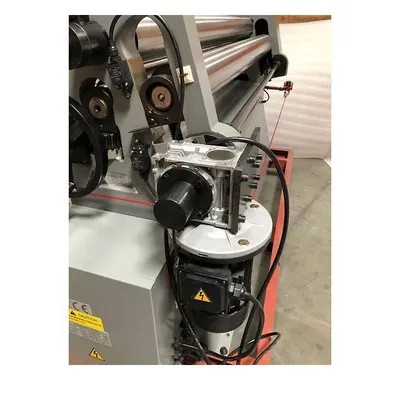

<li>This machine has a 7-1/2 HP Motor, rated at 220V three phase.Power bending roll up/down with push button & display. 6.70" Rolls.</li>
<li>SO 9001 certified</li>
<li>Taiwan machines</li>
<li>All (3) rolls are hardened rolls, up to 50-52 HRC</li>
<li>3-rollers are driven to perform high accuracy</li>
<li>Adjustable cone attachment included</li>

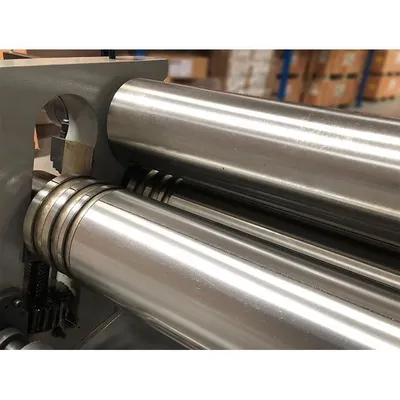

<li>3/8", ½" and 5/8" grooves on rollers</li>

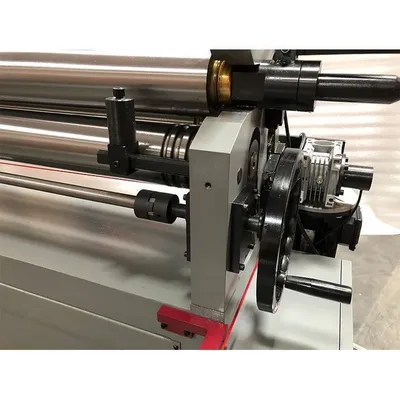

<li>One wheel one-side operated for bending roll</li>
<li>One wheel one-site operated for pinch roll (E model is powered)</li>
<li>Heavy duty casting frame</li>
<li>Heavy duty all steel welded construction</li>
<li>1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.</li>
<li>Quiet running operation</li>
<li>Easy swing-out top roller</li>
<li>Safety line all around the machine for emergency stop</li>
<li>All rolls run forward and reverse</li>
<li>Safety type forward/reverse foot pedal</li>
<li>Power source 220V, (option: 440V, 3 phase)</li>
<li>One year industrial warranty for parts</li>
<li>*This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.</li>
<li>*Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us </li>
</ul>
<p><strong>STANDARD ITEMS:</strong>
</p>
<ul>
<li>Adjustable cone attachment</li>
<li>3/8", ½" and 5/8" grooves on rollers</li>
<li>All (3) hardened rolls</li>
<li>Removable safety foot pedal</li>
<li>Operation & parts manual</li>
<li>Orange color front cover is optional.</li>
<li>E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs</li>
</ul>
<p><strong>OPTIONAL ITEMS - CALL FOR PRICE:</strong></p>
<ul>
<li> Safety fence for enclosure of the back side of the machine</li>
</ul>
