<p><b>SPECIFICATIONS</b></p>
<table width="520" cellspacing="0" cellpadding="0" border="1" class="TableText">
<tbody>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Speed</div></td>
<td><div align="center">1,725 RPM</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Chuck Size</div></td>
<td><div align="center">1/2"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Chisel Capacity</div></td>
<td><div align="center">—</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Chisel Shank Capacity</div></td>
<td><div align="center">3/4"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Head Stroke</div></td>
<td><div align="center">5-1/2"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Chisel Center to Fence</div></td>
<td><div align="center">4-3/8"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Under Hold-Down</div></td>
<td><div align="center">5"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Fence Size (L x H)</div></td>
<td><div align="center">2-5/8" x 12-1/2" </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Base Size</div></td>
<td><div align="center">16-5/16" x 13-3/4" </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Bushing Size</div></td>
<td><div align="center">5/8", 3/4" </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Table Size (L x W)</div></td>
<td><div align="center">11" x 13" </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Table Tilt</div></td>
<td><div align="center">—</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Taper</div></td>
<td><div align="center">—</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">
<div align="center">Motor</div>
</div></td>
<td width="257"><div align="center">3/4 HP, 1 Ph</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Voltage</div></td>
<td><div align="center">115 / 230V </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Prewired Voltage</div></td>
<td><div align="center">115V</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Current</div></td>
<td><div align="center">8 / 4 A </div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Dimensions ( L / W / H ) (in.)</div></td>
<td><div align="center">24.2 x 19.2 x 17.4 </div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Net Weight ( lb. )</div> </td>
<td>
<div align="center">93</div> </td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES:</b></p>

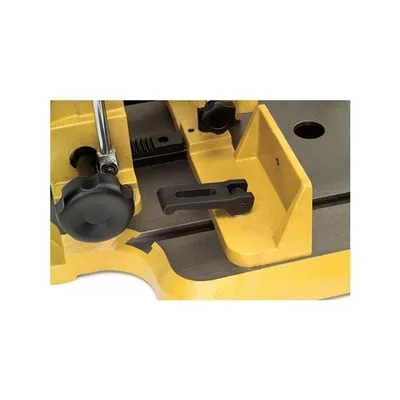

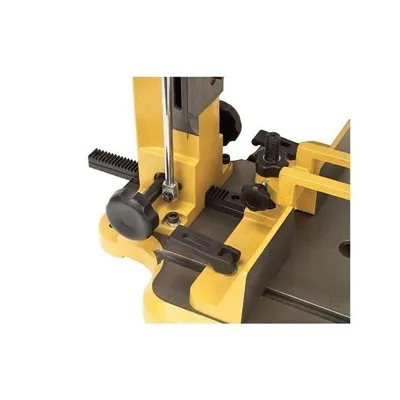

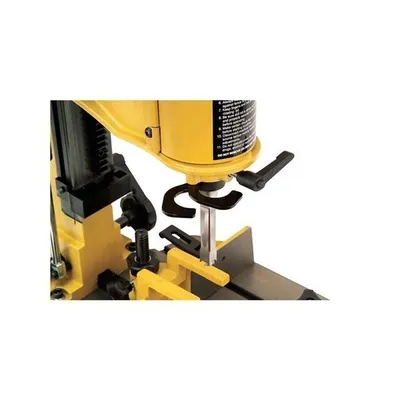

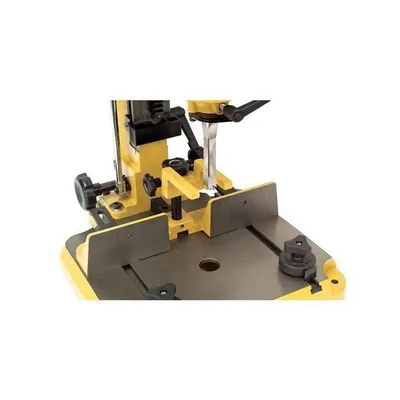

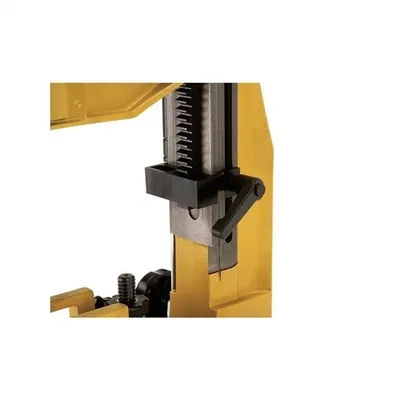

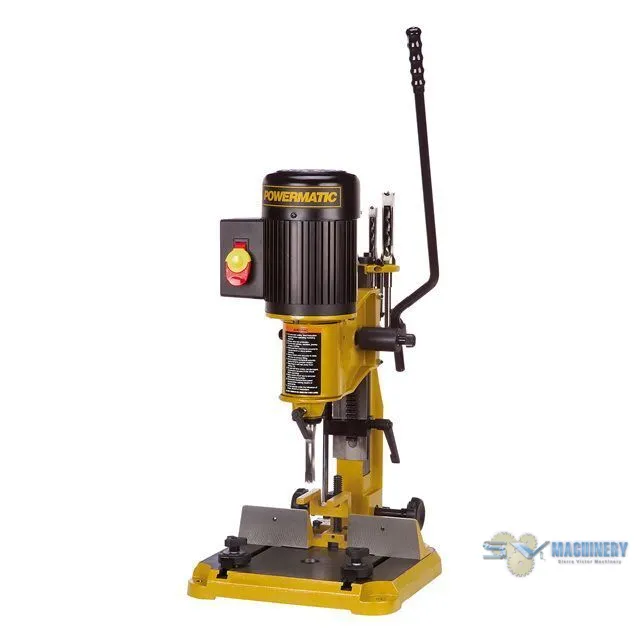

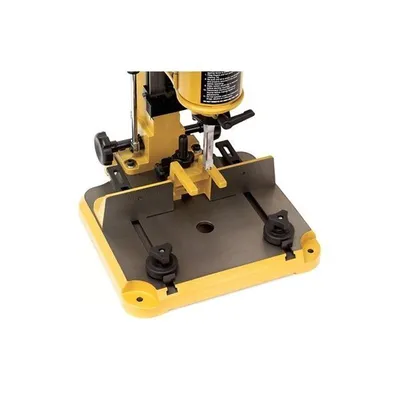

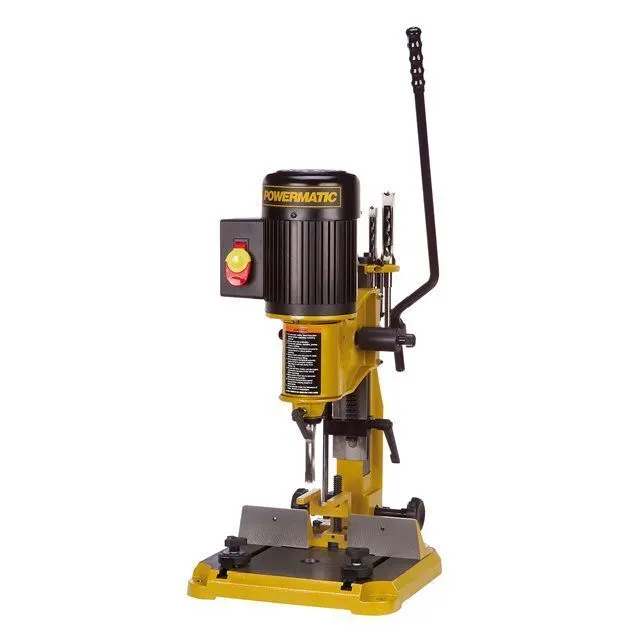

<p> The new POWERMATIC PM701 Benchtop Deluxe Mortiser for sale features an in-line depth stop which allows the user to stop at preset depths without racking the mortiser bit to the base. Its heavy-duty reversible handle is so versatile that it can be changed from one side to the other quickly and easily and requires no tools to do so. The stock hold down features a specially designed double lock system. One locks from the side, the other locks from the top, to completely eliminate any slippage when removing the chisel from the work piece. This hold-down is also reversible to allow stock from 0 to 5" thick to be captured underneath it. The new POWERMATIC 701 Benchtop Mortiser has a quick-action cam lock that will quickly lock the fence into position with one 90° movement. This lock also features lock nuts, so once set they will not have to be continually adjusted. Set-up has never been easier or more precise. The new POWERMATIC 701 Benchtop Deluxe Mortiser features an integrated bit and chisel spacer system. These two spacers are used to accurately and quickly account for the space needed between the bit and chisel during set-up. Large work surfaces in the table and fence allow for more stability and accurate cuts. The new mortiser also includes a large hinged chuck door with magnetic catch. This unique element allows the user to easily access the drill chuck with the standard 4" chuck key to lock the bit in place. In addition, its rack and pinion allow for simple and quick fence adjustments.</p>
