<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td rowspan="4" class="Title_white_bold" width="100" bgcolor="#333333">
<div align="center"><strong><span style="color: rgb(255, 255, 255);">SPINDLE CAPACITY</span></strong>
</div>
</td>
<td class="TableText1" width="214" bgcolor="#CCCCCC">
<div align="center">With Jaw Chucks (in.)
</div>
</td>
<td class="TableText1" width="198">
<div align="center">6
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">With Expanding Collets (in.)
</div>
</td>
<td class="TableText1">
<div align="center">3
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">With Round 5C Collets (in.)
</div>
</td>
<td class="TableText1">
<div align="center">1-1/16
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">With Step Chucks (in.)
</div>
</td>
<td class="TableText1">
<div align="center">1-1/16 - 6
</div>
</td>
</tr>
<tr>
<td rowspan="3" class="Title_white_bold" bgcolor="#333333">
<div align="center"><strong><span style="color: rgb(255, 255, 255);">GENERAL CAPACITY</span></strong>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Swing Over Bed (in.)
</div>
</td>
<td class="TableText1">
<div align="center">11
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Swing Over Cross Slide (in.)
</div>
</td>
<td class="TableText1">
<div align="center">6
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Distance Between Centers (in.)
</div>
</td>
<td class="TableText1">
<div align="center">18
</div>
</td>
</tr>
<tr>
<td rowspan="5" class="Title_white_bold" bgcolor="#333333">
<div align="center"><strong> <span style="color: rgb(255, 255, 255);"></span></strong><strong><span style="color: rgb(255, 255, 255);">HEADSTOCK</span></strong>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Speed
</div>
</td>
<td class="TableText1" valign="top">
<div align="center">50 - 4000 rpm
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">No. of Spindle Speeds
</div>
</td>
<td class="TableText1">
<div align="center">Variable
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Nose Diameter (in.)
</div>
</td>
<td class="TableText1">
<div align="center">2.19
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Bore (in.)
</div>
</td>
<td class="TableText1">
<div align="center">1-1/4
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Nose ID/OD
</div>
</td>
<td class="TableText1">
<div align="center">5C 10°/4° taper
</div>
</td>
</tr>
<tr>
<td rowspan="5" class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>THREADS & FEES</strong><strong></strong></span>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Inch Threads, Number
</div>
</td>
<td class="TableText1" valign="top">
<div align="center">11 - 108 tpi
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Metric Threads, Number
</div>
</td>
<td class="TableText1">
<div align="center">0.275 - 2.7
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Longitudinal Feeds
</div>
</td>
<td class="TableText1">
<div align="center">0.31 - 7 ipr
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Cross Feeds
</div>
</td>
<td class="TableText1">
<div align="center">0.18 - 4 ipr
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Leadscrew Pitch, Diameter
</div>
</td>
<td class="TableText1">
<div align="center">8 tpi, 1 in.
</div>
</td>
</tr>
<tr>
<td rowspan="3" class="Title_white_bold" bgcolor="#333333">
<div align="center"><strong> <span style="color: rgb(255, 255, 255);"></span></strong><strong><span style="color: rgb(255, 255, 255);">CARRIAGE</span></strong>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Cross Slide Travel (in.)
</div>
</td>
<td class="TableText1" valign="top">
<div align="center">6
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Compound Slide Travel (in.)
</div>
</td>
<td class="TableText1">
<div align="center">3
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Quick Action Compound Travel (in.)
</div>
</td>
<td class="TableText1">
<div align="center">0.1
</div>
</td>
</tr>
<tr>
<td rowspan="3" class="Title_white_bold" bgcolor="#333333">
<div align="center"><strong> <span style="color: rgb(255, 255, 255);"></span></strong><strong><span style="color: rgb(255, 255, 255);">TAILSTOCK</span></strong>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Quill Diameter (in.)
</div>
</td>
<td class="TableText1" valign="top">
<div align="center">1.35
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Quill Travel (in.)
</div>
</td>
<td class="TableText1">
<div align="center">3.75
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Quill Center Taper
</div>
</td>
<td class="TableText1">
<div align="center">MT #2
</div>
</td>
</tr>
<tr>
<td rowspan="7" class="Title_white_bold" bgcolor="#333333">
<div align="center"><strong><span style="color: rgb(255, 255, 255);">GENERAL</span></strong>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Motor
</div>
</td>
<td class="TableText1">
<div align="center">5 HP
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Voltage
</div>
</td>
<td class="TableText1">
<div align="center">220V, 440V
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Phase
</div>
</td>
<td class="TableText1">
<div align="center">3 Ph (no 1 Ph)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Coolant Pump Motor
</div>
</td>
<td class="TableText1">
<div align="center">0.167 HP
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Carriage Feed Motor (DC)
</div>
</td>
<td class="TableText1">
<div align="center">220V
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Approximate Weight
</div>
</td>
<td class="TableText1">
<div align="center">1,804 lbs
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Dimensions (ft.)
</div>
</td>
<td class="TableText1">
<div align="center">6.07 x 2.46 x 5.58
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p><p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p><br><ul>

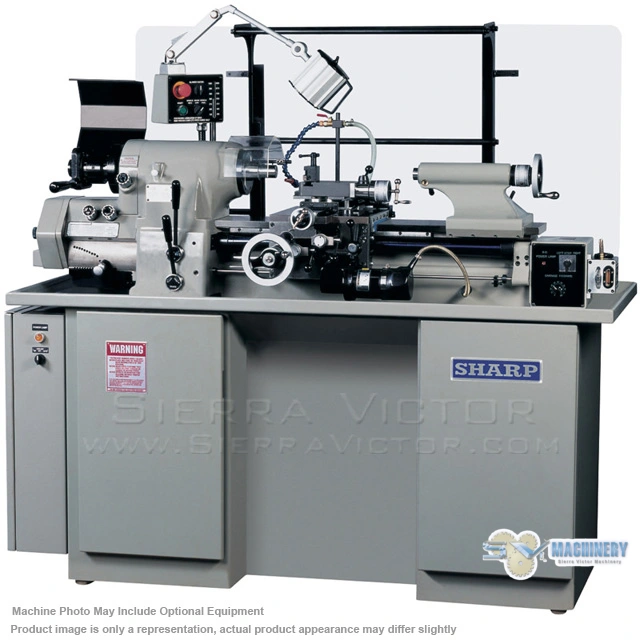

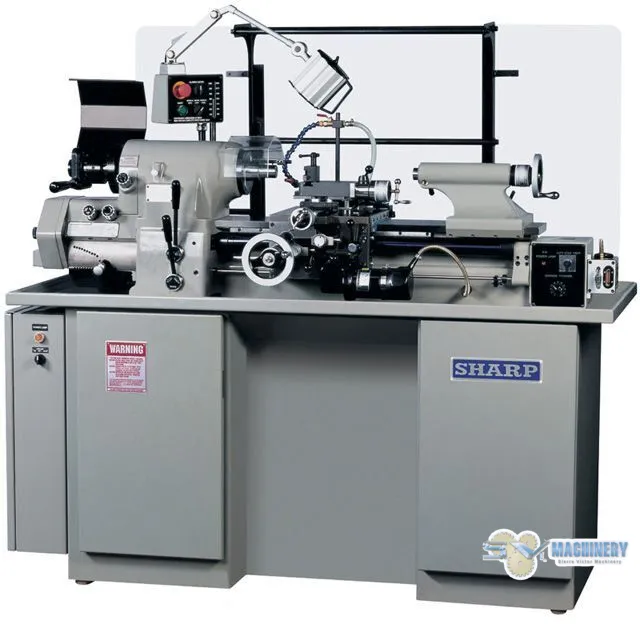

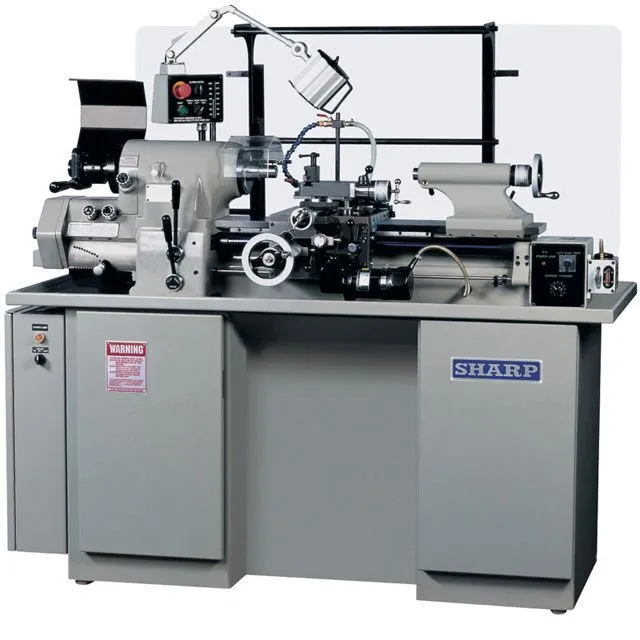

<li>This toolroom lathe for sale is ideal for small parts especially for those that requires threading. It offers very high precision (0.000050” TIR) and fast turn around time for machining tiny parts.</li>
<li>Digital variable speed (DVS) drive system</li>
<li>High speed spindle 130-4,000 RPM, accuracy within 50 millionth TIR</li>
<li>Hardened and ground spindle</li>

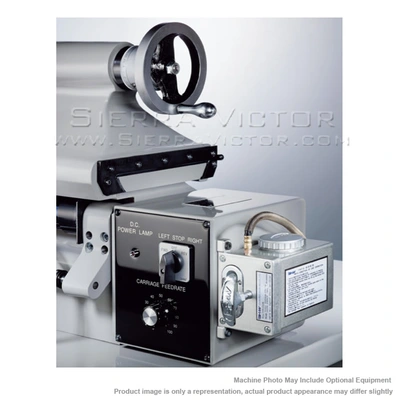

<li>Independent electric feed rate control on carriage and cross slide</li>
<li>Quick change inch/metric gearbox with 36 changes</li>
<li>Spindle supported by paired angular contact bearings</li>
<li>Quick action slide for threading</li>
<li>One piece alloy steel material, hardened and ground dovetail</li>
<li>Bedways with Turcite on carriage & bed for oil retention</li>
<li>Adjustable thread length control stops</li>
<li>Hardened and ground leadscrews</li>
</ul>
<p><strong> STANDARD EQUIPMENT:</strong>
</p>
<ul>
<li>Splash guard</li>
<li>Coolant system</li>
<li>5C collet closer</li>
<li>5C collet holder (2)</li>
<li>Chuck guard</li>
<li>Spindle nose cover</li>
<li>Leadscrew cover</li>
<li>American tool post</li>
<li>Drive dog & gear</li>
<li>Adjustable tool setting gauges</li>
<li>Halogen work light</li>
<li>Drive plate</li>
<li>Headstock center</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>3-jaw 6" chuck with 6" fixture plate</li>
<li>4-jaw 6" chuck with 6" fixture plate</li>
<li>6-jaw chuck with 6" fixture plate</li>
<li>3-jaw 6" zero set chuck with fixture plate</li>
<li>4-jaw 6" chuck with fixture plate</li>
<li>6-jaw chuck with 6″ fixture plate</li>
<li>380V, 440V, 575V transformer</li>
<li>5C collet set (1/8" to 1-1/16" by 1/16") 16 sets</li>
<li>7" face plateQuick change tool holder set 7 sets</li>
<li>Vertical cut-off slide</li>
<li>Taper attachment</li>
<li>Steady rest</li>
<li>Follow rest</li>
<li>Micrometer cartridge stop with bracket</li>
<li>Dorian tool-MT #2</li>
<li>Dorian tool-MT #2</li>
<li>Drill chuck & arbor</li>
</ul>
