<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold">
<td bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>MODEL</strong></span>
</div>
</td>
<td colspan="2" bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>JTM-1050EVS2 CNC</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div><strong>Part#</strong>
</div>
</td>
<td width="132">
<div class="TableText">
<div><strong>JT9-690675</strong>
</div>
</div>
</td>
<td width="131">
<div class="TableText">
<div><strong>JT9-690676</strong>
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Number CNC Control Axis
</div>
</td>
<td>
<div>2
</div>
</td>
<td>
<div>3
</div>
</td>
</tr>
<tr>
<td width="249" bgcolor="#cccccc">
<div>Table Size (LxW) (In.)
</div>
</td>
<td colspan="2">
<div>10 x 50
</div>
</td>
</tr>
<tr>
<td width="249" bgcolor="#cccccc">
<div>Spindle Taper (In. x TPI)
</div>
</td>
<td colspan="2">
<div>R-8
</div>
</td>
</tr>
<tr>
<td width="249" bgcolor="#cccccc">
<div>Quill Diameter (In.)
</div>
</td>
<td colspan="2">
<div>3-3/8
</div>
</td>
</tr>
<tr>
<td width="249" bgcolor="#cccccc">
<div>Range of Spindle Speeds (RPM)
</div>
</td>
<td colspan="2">
<div>60 - 4,500
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Quill Down Feed Rates (IPR)
</div>
</td>
<td colspan="2">
<div>.0015 / .003 / .006
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Spindle Travel (In.)
</div>
</td>
<td colspan="2">
<div>5
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Max Distance Spindle to Table (In.)
</div>
</td>
<td colspan="2">
<div>20-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Distance Spindle to Column (Max.) (In.)
</div>
</td>
<td colspan="2">
<div>26-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Distance Spindle to Column (Min.) (In.)
</div>
</td>
<td colspan="2">
<div>4-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Table Longitudual Travel (In.)
</div>
</td>
<td colspan="2">
<div>35-1/3
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Table Cross Travel (In.)
</div>
</td>
<td colspan="2">
<div>14-3/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Travel of Knee (In.)
</div>
</td>
<td colspan="2">
<div>16-1/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Travel of Ram (In.)
</div>
</td>
<td colspan="2">
<div>15-7/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>T-Slots Number and Size (In.)
</div>
</td>
<td colspan="2">
<div>3 and 5/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>T-Slot Centers (In.)
</div>
</td>
<td colspan="2">
<div>2-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Work Table Weight Capacity (Lbs.)
</div>
</td>
<td colspan="2">
<div>840
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor (HP)
</div>
</td>
<td colspan="2">
<div>3 HP, 230V,3Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Overall Dimensions (L x W x H) (In.)
</div>
</td>
<td colspan="2">
<div>96 x 78 x 88
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Weight (Lbs)
</div>
</td>
<td colspan="2">
<div>2,860
</div>
</td>
</tr>
</tbody>
</table>
<p><br></p>
<table width="520" cellspacing="0" cellpadding="0" border="0">
<!--DWLayoutTable-->
<tbody>
<tr>
<td class="spacer_text" width="400" valign="middle" height="20" bgcolor="#4c9ae5"><strong>CNC SPECIFICATIONS: ACU-RITE MillPWR G2 2 or 3 Axis Retrofit Package</strong>
</td>
</tr>
</tbody>
</table>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold">
<td bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>DRO MODE</strong></span>
</div>
</td>
<td bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>MILLPWR-G2</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>External Storage
</div>
</td>
<td width="257">
<div>USB/Ethernet (RS-232)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Internal Storage
</div>
</td>
<td>
<div>2.5 GB Flash (User)
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Processor
</div>
</td>
<td>
<div>1GHz Celeron®M
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Display
</div>
</td>
<td>
<div>12.1" (1024 x 768)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Windows Off-Line Programing Station
</div>
</td>
<td>
<div>Yes
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Program Preview
</div>
</td>
<td>
<div>Listed & Graphic
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Filename Filter Search
</div>
</td>
<td>
<div>Yes
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>File Manager Navigation
</div>
</td>
<td>
<div>Tree
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Esitmated Machining Time
</div>
</td>
<td>
<div>Yes
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Auto Save (Program)
</div>
</td>
<td>
<div>Yes
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Program Size Limit
</div>
</td>
<td>
<div>9,999 Steps
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>G Code Program
</div>
</td>
<td>
<div>Extended Support Plus <br> G80 Series Drill Cycles
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Block Form Solid Model 3D graphics
</div>
</td>
<td>
<div>with User Override
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Program Step Navigation
</div>
</td>
<td>
<div>Hard Keys & Pop-Up Menu
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Custom Pocket & Islands
</div>
</td>
<td>
<div>Ramp Feed & Optimized Path
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Circle (Pocket, Frame, Ring, Helix)
</div>
</td>
<td>
<div>Ramp Feed
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Tool Library
</div>
</td>
<td>
<div>Specify By Tool Number
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Multiple Datum's (Fixture Offsets)
</div>
</td>
<td>
<div>99
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Graphic View
</div>
</td>
<td>
<div>Line/3D Shaded
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Error Compensation
</div>
</td>
<td>
<div>Linear & Bidirectional Non-Linear
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>
<li>JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty</li>

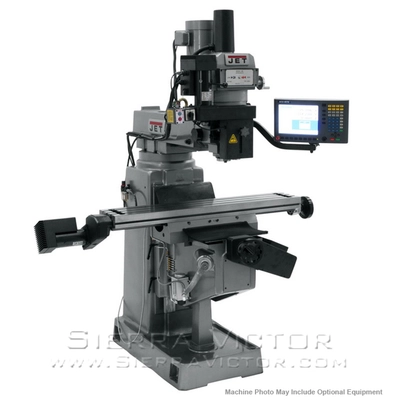

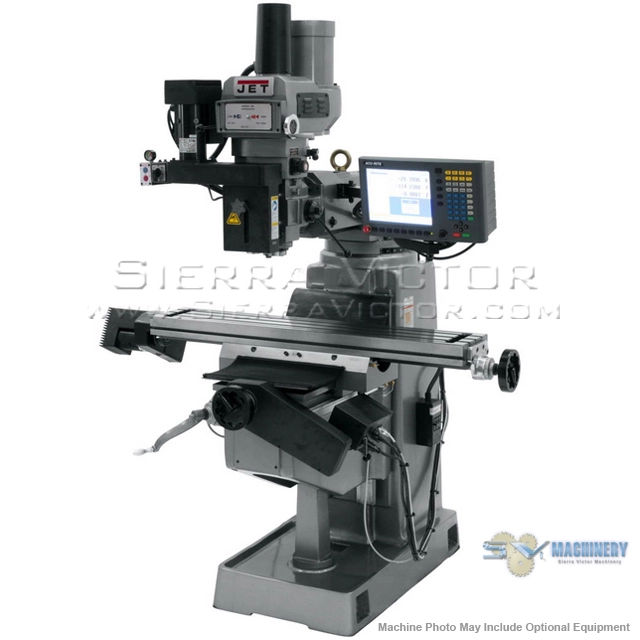

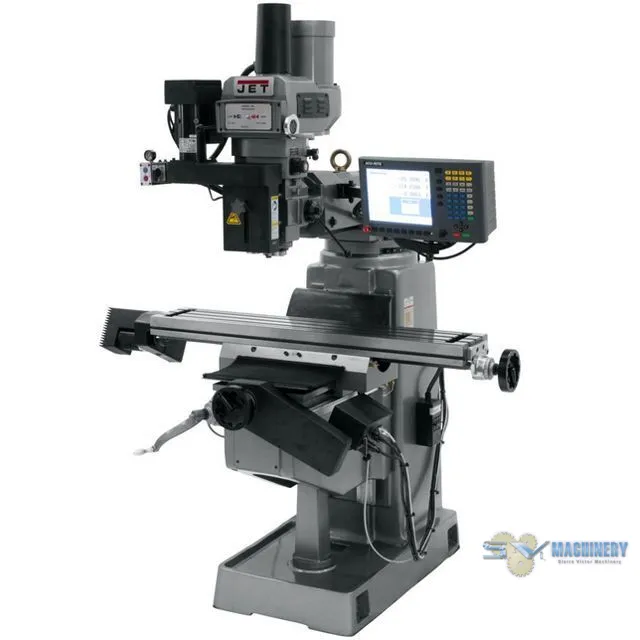

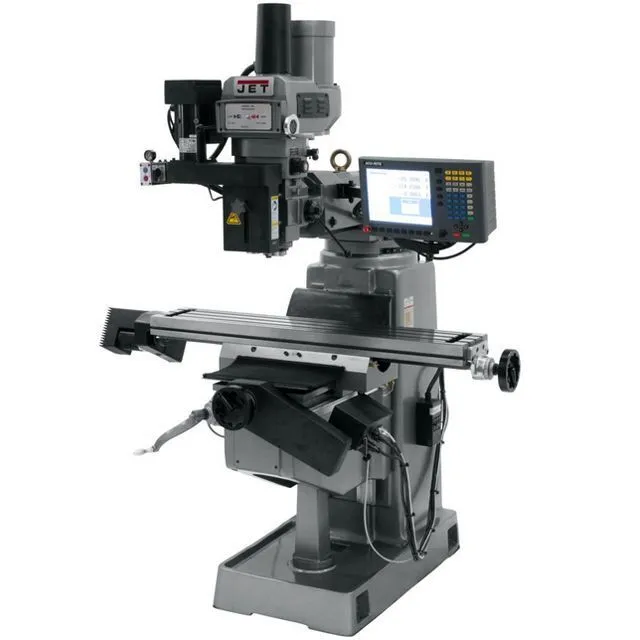

<li>CNC Electronic Variable Speed Vertical Milling Machine Package JTM-1050EVS</li>
<li>Features of the ACU-RITE MILLPWR G2 CNC Package</li>
<li>Precision Ground Ball Screws eliminate backlash for precice lateral movements</li>
<li>Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution</li>
<li>Powerful DC Servo motor assemblies that include mounting castings and hardware</li>
<li>Handwheels are included for manual operation</li>
<li>Features of the ACU-RITE MILLPWR G2 CONTROLLER</li>
<li>USB + Ethernet compatible</li>
<li>Simplified navigation that eliminates multiple menu screens</li>
<li>12.1" High resolution display (1024 x 768) with 3D graphics</li>
<li>1 GHz Celeron M processor</li>
<li>Expanded tool library and Datum offsets</li>
<li>Program preview provides a graphical representation prior to operation</li>
<li>Progam size limit increased by 90% to 9,999 steps</li>
<li>Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously</li>
<li>3-D Contouring, ability to import and run G-code files from CAD/CAM programs</li>
<li>Mirror/Repeat/Rotate/Explode/Merge, easily manipulate, explode and merge part programs to save time and reduce program steps</li>
<li>Menu-prompted Conversational programming, easily create part programs, edit, reverse, change, delete and copy/move steps - follow the menu prompts and let MILLPWR G2 do the rest</li>
<li>Built-in Calculator, perform standard, trig and geometry calculations and transfer them directly into part programs</li>
<li>Custom Pockets and Islands utilize the new optimized path and ramp feed features</li>
<li>Circles including the Pocket, Frame, Ring and Helix incorporate the new ramp feed feature</li>
<li>May be used automatically or manually for ultimate shop versatility</li>
<li>Available offline software</li>
<li>Estimated runtime feature</li>
</ul>
