<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold">
<td bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>JTM-1050VS2</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Part#
</div>
</td>
<td width="257">
<div align="center">JT9-690940
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Number CNC Control Axis
</div>
</td>
<td>
<div align="center">3
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Table Size (LxW) (In.)
</div>
</td>
<td>
<div align="center">10 x 50
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Spindle Taper (In. x TPI)
</div>
</td>
<td>
<div align="center">R-8
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Quill Diameter (In.)
</div>
</td>
<td>
<div align="center">3-3/8
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Number of Spindle Speeds
</div>
</td>
<td>
<div align="center">Variable
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Range of Spindle Speeds (RPM)
</div>
</td>
<td>
<div align="center">70-3,800
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Quill Down Feed Rates (IPR)
</div>
</td>
<td>
<div align="center">.0015 / .003 / .006
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Spindle Travel (In.)
</div>
</td>
<td>
<div align="center">5
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Head Movement (Deg.)
</div>
</td>
<td>
<div align="center">90° R & L, 45° F & B
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Max Distance Spindle to Table (In.)
</div>
</td>
<td>
<div align="center">19
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Distance Spindle to Column (Max.) (In.)
</div>
</td>
<td>
<div align="center">26
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Distance Spindle to Column (Min.) (In.)
</div>
</td>
<td>
<div align="center">5-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Collet Capacity
</div>
</td>
<td>
<div align="center">1/8 - 7/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Table Longitudual Travel (In.)
</div>
</td>
<td>
<div align="center">35
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Table Cross Travel (In.)
</div>
</td>
<td>
<div align="center">15-1/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">T-Slots Number and Size (In.)
</div>
</td>
<td>
<div align="center">3 - 5/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">T-Slot Centers (In.)
</div>
</td>
<td>
<div align="center">2-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Work Table Weight Capacity (Lbs.)
</div>
</td>
<td>
<div align="center">720
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Travel of Knee (In.)
</div>
</td>
<td>
<div align="center">14-1/4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Travel of Ram (In.)
</div>
</td>
<td>
<div align="center">20-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Motor (HP)
</div>
</td>
<td>
<div align="center">3 HP, 230/460V,3Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Overall Dimensions (L x W x H) (In.)
</div>
</td>
<td>
<div align="center">96 x 69 x 87
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Weight (Lbs)
</div>
</td>
<td>
<div align="center">3,000
</div>
</td>
</tr>
</tbody>
</table>
<p><br><br>
</p>
<table width="520" cellspacing="0" cellpadding="0" border="0">
<!--DWLayoutTable-->
<tbody>
<tr>
<td class="spacer_text" width="400" valign="middle" nowrap="nowrap" height="20" bgcolor="#4c9ae5"><span style="color: rgb(0, 0, 0);"><strong>CNC SPECIFICATIONS: ACU-RITE MillPWR G2 2 or 3 Axis Retrofit Package</strong></span>
</td>
</tr>
</tbody>
</table>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold">
<td bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>DRO MODE</strong></span>
</div>
</td>
<td bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MILLPWR-G2</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">External Storage
</div>
</td>
<td width="257">
<div align="center">USB/Ethernet (RS-232)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Internal Storage
</div>
</td>
<td>
<div align="center">2.5 GB Flash (User)
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Processor
</div>
</td>
<td>
<div align="center">1GHz Celeron®M
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Display
</div>
</td>
<td>
<div align="center">12.1" (1024 x 768)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Windows Off-Line Programing Station
</div>
</td>
<td>
<div align="center">Yes
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Program Preview
</div>
</td>
<td>
<div align="center">Listed & Graphic
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Filename Filter Search
</div>
</td>
<td>
<div align="center">Yes
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">File Manager Navigation
</div>
</td>
<td>
<div align="center">Tree
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Esitmated Machining Time
</div>
</td>
<td>
<div align="center">Yes
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Auto Save (Program)
</div>
</td>
<td>
<div align="center">Yes
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Program Size Limit
</div>
</td>
<td>
<div align="center">9,999 Steps
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">G Code Program
</div>
</td>
<td>
<div align="center">Extended Support Plus <br>
G80 Series Drill Cycles
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Block Form Solid Model 3D graphics
</div>
</td>
<td>
<div align="center">with User Override
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Program Step Navigation
</div>
</td>
<td>
<div align="center">Hard Keys & Pop-Up Menu
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Custom Pocket & Islands
</div>
</td>
<td>
<div align="center">Ramp Feed & Optimized Path
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Circle (Pocket, Frame, Ring, Helix)
</div>
</td>
<td>
<div align="center">Ramp Feed
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Tool Library
</div>
</td>
<td>
<div align="center">Specify By Tool Number
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Multiple Datum's (Fixture Offsets)
</div>
</td>
<td>
<div align="center">99
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Graphic View
</div>
</td>
<td>
<div align="center">Line/3D Shaded
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Error Compensation
</div>
</td>
<td>
<div align="center">Linear & Bidirectional Non-Linear
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>
<li>JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty</li>

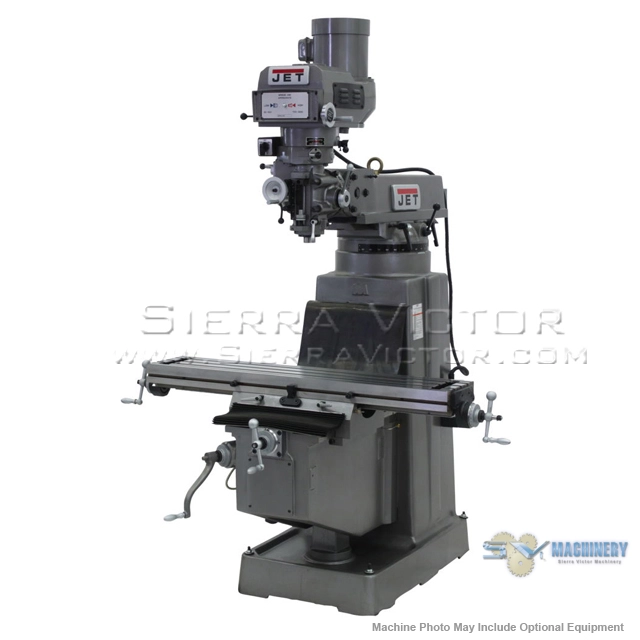

<li>CNC Vertical Milling Machine Package JTM-1050</li>
<li>Features of the ACU-RITE MILLPWR G2 CNC Package</li>
<li>Precision Ground Ball Screws eliminate backlash for precice lateral movements</li>
<li>Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution</li>
<li>Powerful DC Servo motor assemblies that include mounting castings and hardware</li>
<li>Handwheels are included for manual operation</li>
<li>Features of the ACU-RITE MILLPWR G2 CONTROLLER</li>
<li>USB + Ethernet compatible</li>
<li>Simplified navigation that eliminates multiple menu screens</li>
<li>12.1" High resolution display (1024 x 768) with 3D graphics</li>
<li>1 GHz Celeron M processor</li>
<li>Expanded tool library and Datum offsets</li>
<li>Program preview provides a graphical representation prior to operation</li>
<li>Progam size limit increased by 90% to 9,999 steps</li>
<li>Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously</li>
<li>3-D Contouring, ability to import and run G-code files from CAD/CAM programs</li>
<li>Mirror/Repeat/Rotate/Explode/Merge, easily manipulate, explode and merge part programs to save time and reduce program steps</li>
<li>Menu-prompted Conversational programming, easily create part programs, edit, reverse, change, delete and copy/move steps - follow the menu prompts and let MILLPWR G2 do the rest</li>
<li>Built-in Calculator, perform standard, trig and geometry calculations and transfer them directly into part programs</li>
<li>Custom Pockets and Islands utilize the new optimized path and ramp feed features</li>
<li>Circles including the Pocket, Frame, Ring and Helix incorporate the new ramp feed feature</li>
<li>May be used automatically or manually for ultimate shop versatility</li>
<li>Available offline software</li>
<li>Estimated runtime feature</li>
</ul>
