<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white1" bgcolor="#333333">
<td class="Title_white_bold">
<div class="Title_white_bold1" align="center">
<div align="center"><strong><span style="color: rgb(255, 255, 255);">MODEL</span></strong>
</div>
</div>
</td>
<td class="TableText1" bgcolor="#333333">
<div align="center">
</div>
</td>
<td class="TableText1" width="185">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>TMV-FC-3 </strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td rowspan="9" class="Title_white_bold" width="140" bgcolor="#333333">
<div align="center"><strong><span style="color: rgb(255, 255, 255);">CAPACITY</span></strong>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Table Size
</div>
</td>
<td class="TableText1">
<div align="center">10 x 54 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">T-slots (No., Size, Pitch)
</div>
</td>
<td class="TableText1">
<div align="center">3, 5/8 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Table Travel : X Longitudinal
</div>
</td>
<td class="TableText1">
<div align="center">31 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Table travel : Y Cross
</div>
</td>
<td class="TableText1">
<div align="center">15.5 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Quill travel: Z Vertical
</div>
</td>
<td class="TableText1">
<div align="center">5 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Ram Travel
</div>
</td>
<td class="TableText1">
<div align="center">18.5 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Knee travel : Vertical
</div>
</td>
<td class="TableText1">
<div align="center">15.3 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Center to Column
</div>
</td>
<td class="TableText1">
<div align="center">9.8-28.3 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Nose to Table Top
</div>
</td>
<td class="TableText1">
<div align="center">1.6-16.9 in.
</div>
</td>
</tr>
<tr>
<td rowspan="6" class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong> HEAD, SPINDLE</strong></span>
</div>
</td>
<td class="TableText1" width="187" bgcolor="#CCCCCC">
<div align="center">Spindle Nose Taper
</div>
</td>
<td class="TableText1" valign="top">
<div align="center">R-8
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Variable Speed Range
</div>
</td>
<td class="TableText1">
<div align="center">60 - 4500 rpm
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Motor (220V/440V)
</div>
</td>
<td class="TableText1">
<div align="center">3 HP
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Quill Feed (Inch/Min)(3 speeds)
</div>
</td>
<td class="TableText1">
<div align="center">0.0015, 0.003, 0.005 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Head Tilt Angle (L/R)
</div>
</td>
<td class="TableText1">
<div align="center">90°
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Head Tilt Angle (Up/Down)
</div>
</td>
<td class="TableText1">
<div align="center">45°
</div>
</td>
</tr>
<tr>
<td rowspan="4" class="Title_white_bold" bgcolor="#333333">
<div align="center"><strong><span style="color: rgb(255, 255, 255);">GENERAL</span></strong>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Floor Area (W x D x H)
</div>
</td>
<td class="TableText1">
<div align="center">5.83 x 6.25 x 7.33 ft.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Approximate Weight
</div>
</td>
<td class="TableText1">
<div align="center">3,300 lbs.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Power Consumption (220V)
</div>
</td>
<td class="TableText1">
<div align="center">3 KVA/8 amps
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Power Consumption (440V)
</div>
</td>
<td class="TableText1">
<div align="center">3 KVA/4 amps
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

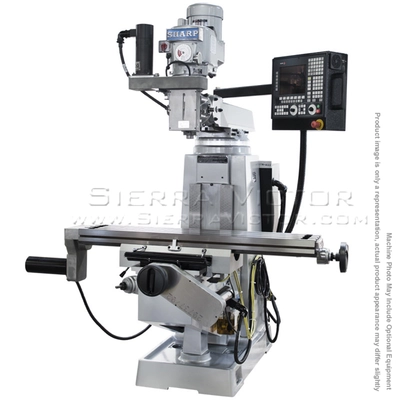

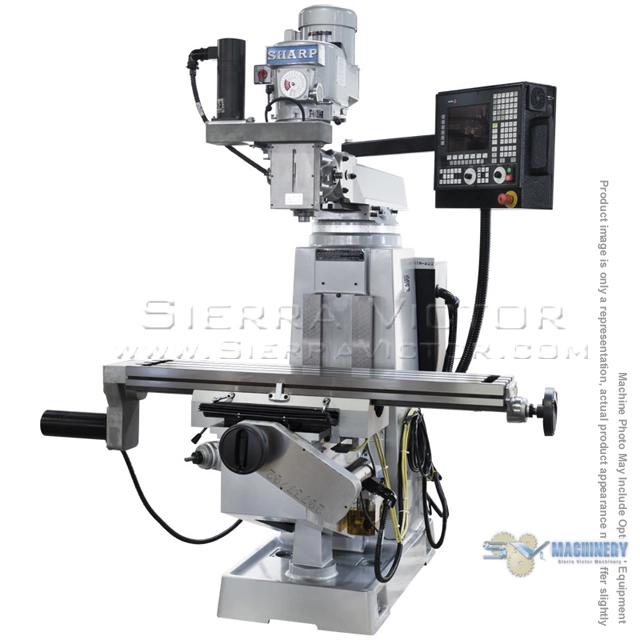

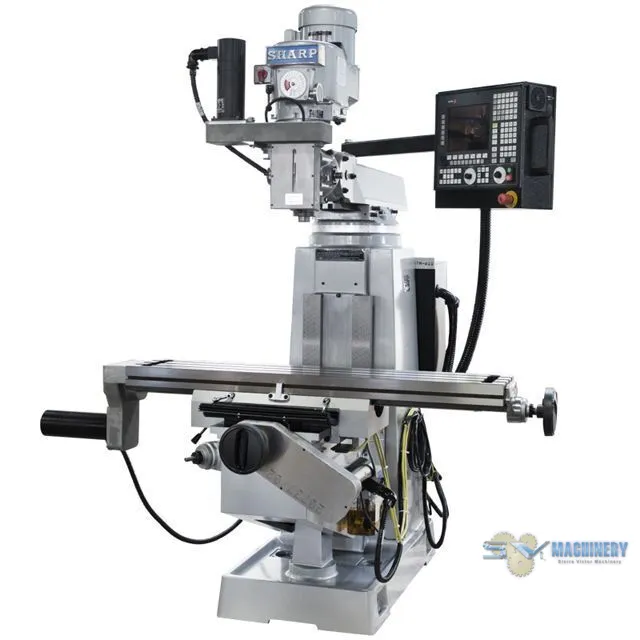

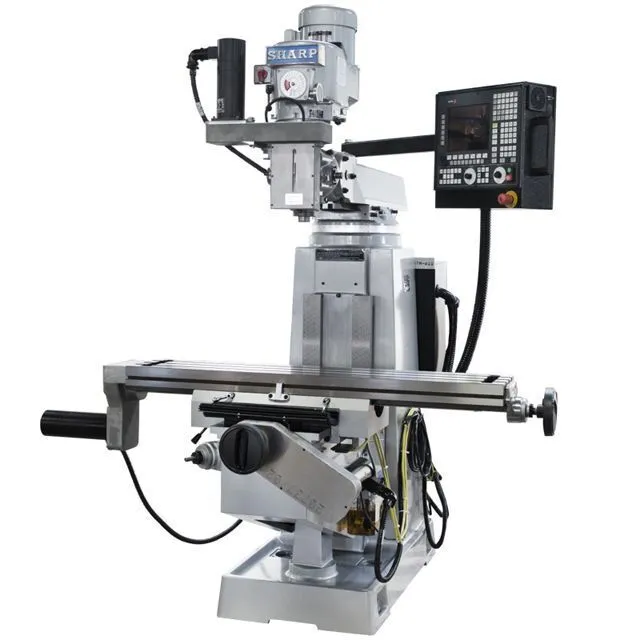

<li>This is a simple, easy to use 3 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle and quill. The FAGOR CNC has G code and conversational type programming with Teach-In Mode. The CNC system is built on the top quality SHARP vertical mills frame.</li>
<li>10 x 54” table, 15.5 x 31x 5” travel, vari speed 3 HP, R-8 spindle</li>
<li>FAGOR 8055i CNC 3 axes control (Longitudinal, Cross)</li>
<li>G code and conversational type programming</li>
<li>3 axes precision ball screws</li>
<li>Auto lube system</li>
<li>3 axes Digital Readout System (table, saddle, quill)</li>

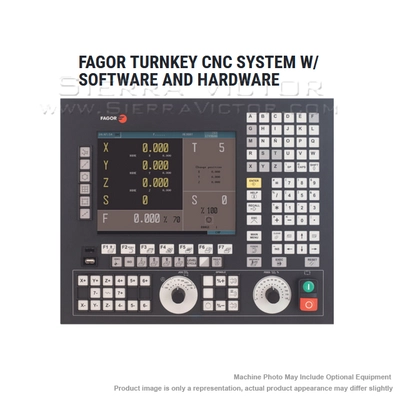

<li>Fagor Turnkey CNC System w/ Software and Hardware:
<ul>
<li>10.4” color monitor</li>
<li>512 MB compact flash, 1 MB RAM</li>
<li>conversational and G-code programming with teach-in mode.</li>
<li>On-board profile editor for easy blue print programming</li>
<li>complex profiles (mini CAD/CAM), 3 D contouring capabilities</li>
<li>Communication includes RS-232, DNC, USB and Ethernet card (option)</li>
</ul>
</li>
</ul>
<p><strong>STANDARD ACCESSORIES:
</strong>
</p>
<ul>
<li>FAGOR 8055i 3 axes CNC system</li>
<li>3 axes ball screws and servo drives</li>
<li>Auto lube system</li>
<li>3 axes Digital Readout system</li>
<li>Cross Way cover</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>NT#30 SPINDLE IN LIEU OF NT#40</li>
<li>6” “Kurt” Vise with Swivel Base</li>
<li>Drill chuck </li>
<li>Sharp Power Kneel</li>
<li>Coolant System with Chip Pan At Base</li>
<li>Power Draw Bar</li>
<li>R-8 Collet (Set of 11) – 1/8” – 3/4” by 1/16”</li>
<li>Clamping Kit (52 pcs/steel rack)</li>
<li>Halogen Work light</li>
<li>Riser block 6</li>
<li>FAGOR CNC Control Optional Items:</li>
<li>Spindle Interface: Start / forward / reverse control. RPM control.</li>
<li>Coolant on/off interface.</li>
<li>110 volt transformer ( if 110 V is not available for the control </li>
<li>Remote hand wheel (MPG/100P).</li>
<li>Ethernet network port.</li>
<li>Upgrades: 2GB compact flash memory. 1M RAM memory. 8055i-PLUS faster CPU.</li>
<li>440 V transformer</li>
<li>4th axes Digital Readout System (on knee)</li>
</ul>
