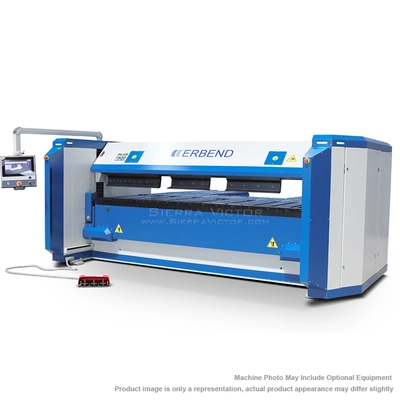

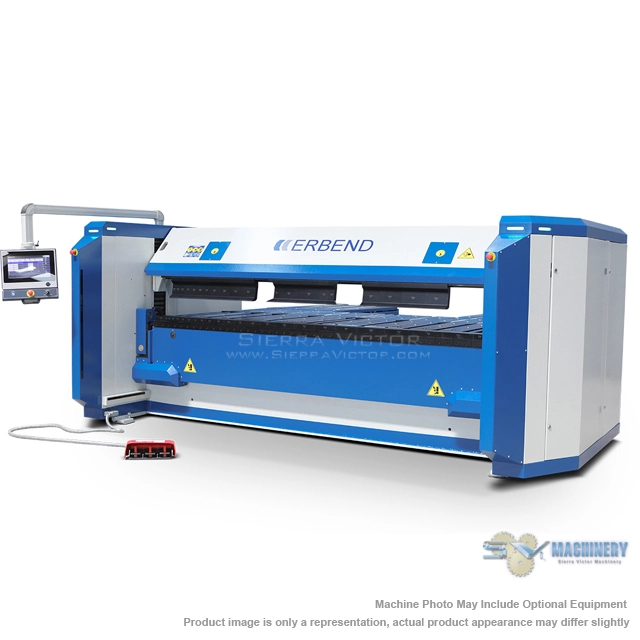

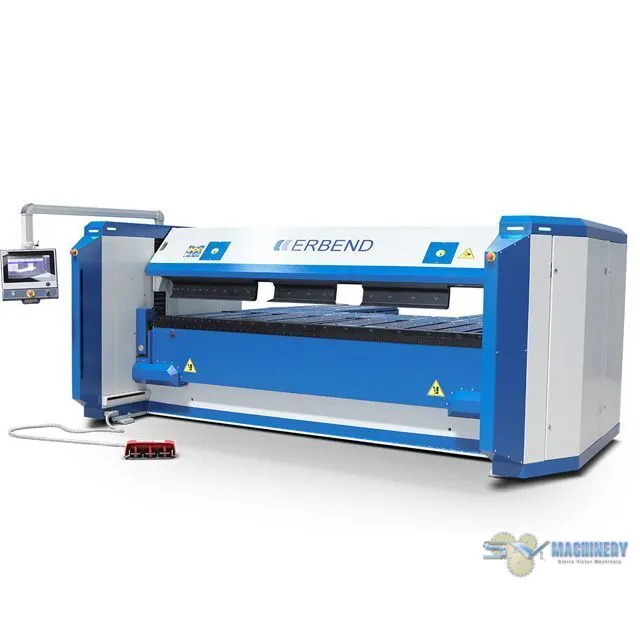

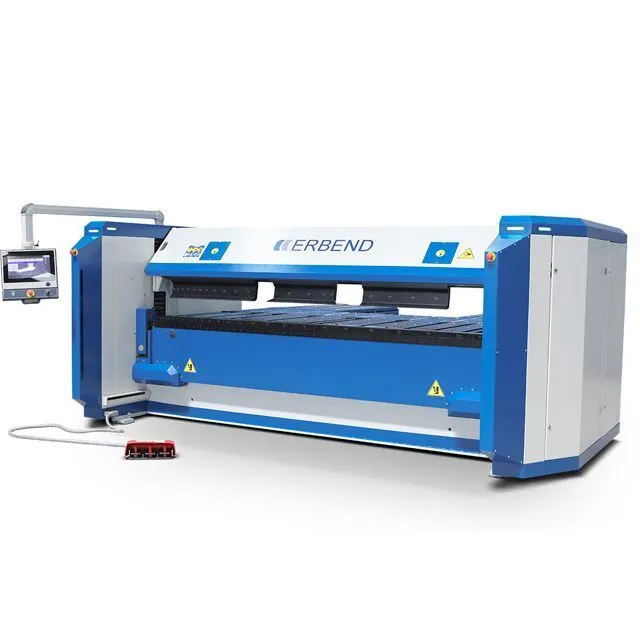

ERBEND SFA 2535 8ft x 10ga. CNC Servo Sheet Metal Folding Machine
Have one to sell?
ConditionNew
New

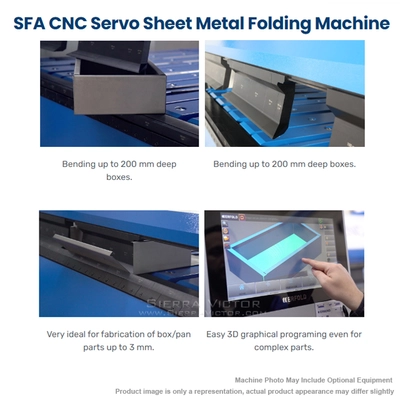

The ERBEND SFA 2535 CNC Servo Sheet Metal Folding Machine has a max sheet length of 8 feet and mild steel capacity of 10 gauge. Clamping beam with 350 mm opening height and 170 mm high, segmented goat foot tools.1500 mm servo backgauge system with rectangular sheet support table and solid fingers.
Optional Items - Call for price:
15.74 inch clamping beam opening and 200 mm high tools upgrade.
98.42 / 126 / 165.35 inch servo backgauge system upgrade with L / T / U shape sheet support table options.
ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
Motorized folding beam adjustment.
Pneumatic goat foot quick clamping.
Manual crowning system.
Feather grooves with solid lower beam tool without channels.
Segmented bottom or folding beam tools.
ERFOLD ADVANCED 2D / 3D CNC GRAPHICAL CONTROL SOFTWARE
15.6" touchscreen all-in one industrial pc controller on swivel arm
2D part editor: you can create a new bending programme by drawing or line by line and and visualize in 2D
3D editor: You can draw the parts in 3D or you can import 3D step/igs files over your offline software
You can determine and change the bending sequence on the created part
3D simulation of bending to check for collisions and intervene if needed
Capability of choosing material type, thickness, springback, shortening,bending correction and creating data base for every type of material or lot
Tool library and edit: You can import, create by drawing and define new tools, save, recall or delete in the library
Authorization levels with special passwords
Real time simulated production page in which you can monitor all axes movements on 3D graphic view of the machine and also numerical values of the axes
16 GB hard disk space which allows you to save unlimited bending receipt or tool data
Detailed alarm and parameters page
MANUAL CROWNING SYSTEM
On long and thin sheets, in order to prevent the banana shape bends, you just need to adjust the crowning between %25 and %100 to give more support from the middle side of the folding beam max 2,5 mm
SERVO FOLDING BEAM ADJUSTMENT ( A AXIS)
By lowering your folding beam down, you can adjust your bending (pivot) point according to the sheet thickness or you can increase the radius of your bends
LONGER RECTANGULAR SHEET SUPPORT TABLE
98.42 / 118 / 157.48 inch long rectangular sheet support table and back gauges
Front side gauging arms + middle and back side triangle fingers up to 6 sectors
Movable sliders for down flanges + steady side gauge
L / T or U SHAPE SHEET SUPPORT TABLE (TO WORK FROM THE BACK SIDE)
118 / 59 inch or 157.48 / 59 inch long L or U shape sheet support table with ball casters.
Front side gauging arms + middle and back side triangle fingers up to 6 sectors

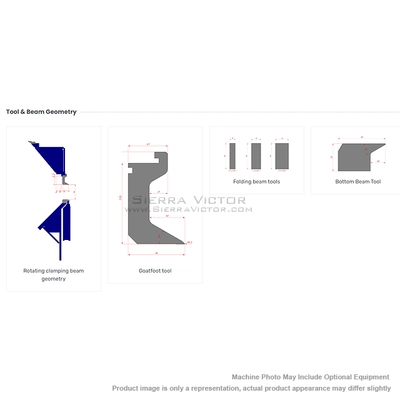

SEGMENTED LOWER BEAM AND FOLDING BEAM TOOLS
Fully segmented lower beam and folding beam tools (1 set)
Segmentation widths are same with goat foot tool widths
7.87 INCH HIGH GOAT FOOT TOOLS + 15.74 INCH UPPER BEAM STROKE
PNEUMATIC GOAT FOOT QUICK CLAMPING SYSTEM
Eliminates the time for tool-setup. No time spent for screwing or unscrewing, just by turning one key, all tools are clamped or unclamped so that you can slide, remove or mount all goat foot tools just in seconds
VACCUM TABLE WITH SUCTION CUPS
Thanks to the suction cups placed on the front gauging group;
Misalignment of the sheet is avoided.
Dropping down of the sheet because of downwards flanges is avoided.
No need to support the sheet anymore from the front side during multi radius bends.
If the gauging side of the sheet is oval or can not be gauged well to the standard fingers/gauges, you do not need to adjust it again in each bending step.
