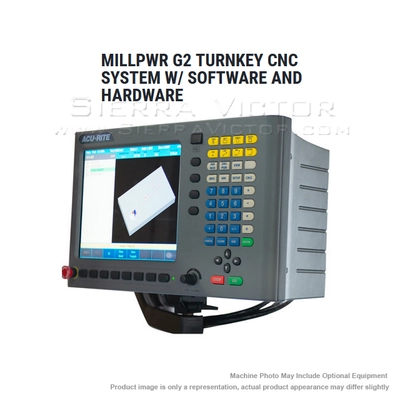

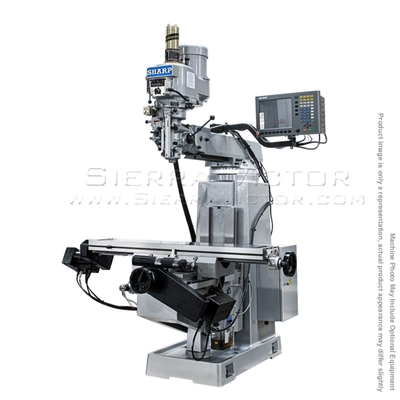

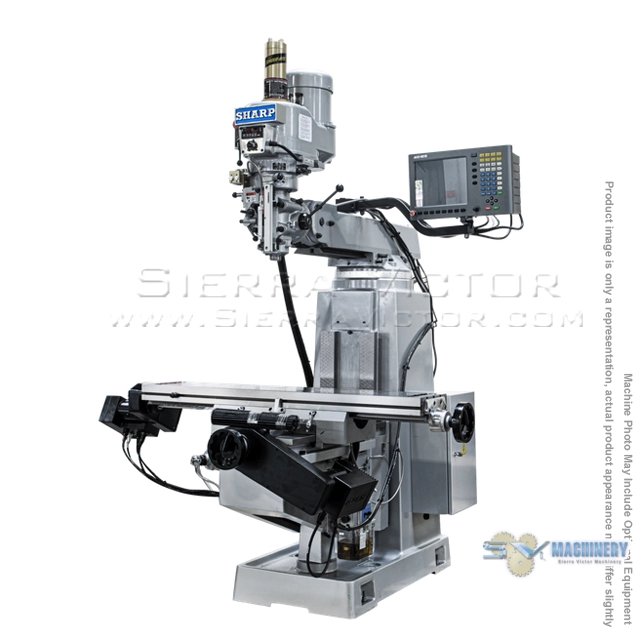

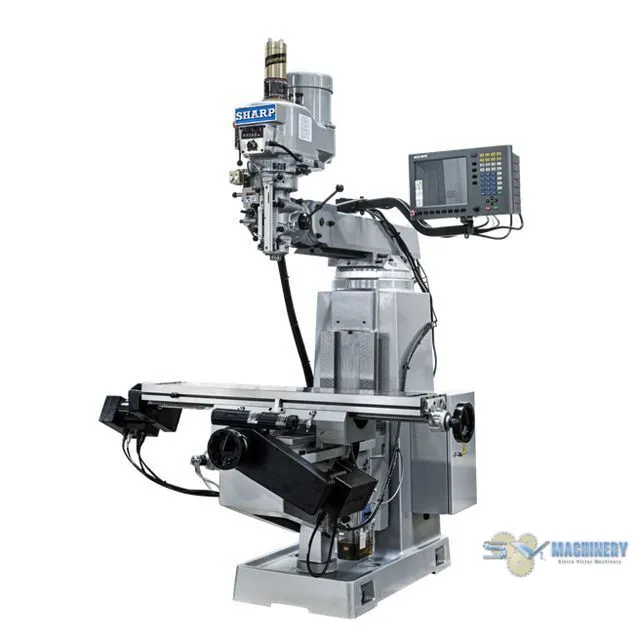

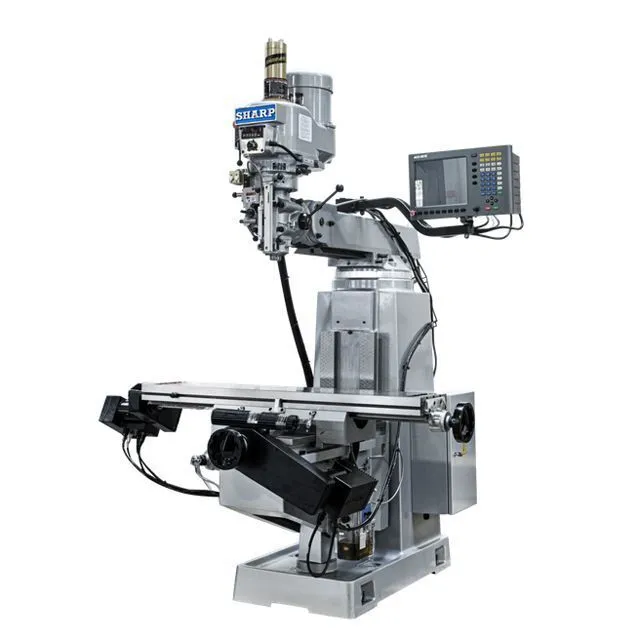

<p>SHARP TMV-MP-2 Series 10" x 54" 2-Axis CNC Vertical Knee Mills</p><ul><li>This is a simple, easy to use 2 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle and quill. The Millpwr G2 CNC has G code and conversational type programming . The CNC system is built on the top quality SHARP vertical mills Model TMV and TMV-1 frame.</li><li>(TMV-MP2) 10 x 54” table, 15.5 x 31x 5” travel, vari speed 3 HP, R-8 spindle</li><li>(TMV-DVS-MP2) 10 x 54” table, 15.5 x 31x 5” travel, Digital Vari Speed 3 HP, R-8 spindle</li><li>(TMV-1-MP2) 10 x 54” table, 15.5 x 31 x 5” travel, vari speed, 5 HP, #40 spindle</li><li>AcuRite Millpwr G2 CNC 2 axes control (Longitudinal, Cross)</li><li>G code and conversational type programming</li><li>2 axes precision ball screws</li><li>Safety handwheels</li><li>Auto lube system</li><li>3 axes Digital Readout System (table, saddle, quill)</li><li>Millpwr G2 Turnkey CNC System w/ Software and Hardware:<ul><li>Dimension Functions:<ul><li>ABS/INC, POLAR/CARTESIAN, INCH/METRIC.</li></ul></li><li>Programming:<ul><li>PROGRAM IN/OUT, POSITION/DRILL, MILL LINES, MILL ARC, BLEND (CORNER RADIUS)</li><li>HOLES (BOLT CIRCLE, RECTANGULAR ARRAY, RECTANGULAR FRAM, LINE),</li><li>CIRCLE (POCKET, FRAM, RING), RECTANGLE (POCKET, FRAME, SLOT, FACING) 9,999 STEPS OF PROGRAM SIZE</li></ul></li><li>Special Features:<ul><li>CUSTOM POCKETS, REPEAT, ROTATE, MIRROR IMAGE.</li></ul></li><li>Run Options:<ul><li>SINGLE STEP, DRY RUN, GRAPHICS ONLY, MANUAL POSITIONING.</li></ul></li><li>Calculator Functions:<ul><li>GEOMETRY, TRIG.</li></ul></li><li>HARDWARE</li><li>Operator Console:<ul><li>EASY TO USE FORMAT. CONVERSATIONAL ENGLISH. THREE DIMENSIONAL HARD KEYS. 10” FLAT PANEL, COLOR LCD DISPLAY. REMOTE STOP/GO SWITCH.</li></ul></li><li>Controller Cabinet:<ul><li>HEAVY DUTY ENCLOSURE MODULAR CONSTRUCTION, 1 GHz Intel Celeron MICROPROCESSOR.</li><li>USB AND RS232 INTERFACE</li><li>1” HIGH RESOLUTION DISPLAY WITH 3 D GRAPHICS</li><li>115VAC – 20 AMPS</li></ul></li></ul></li></ul><p><strong> STANDARD ACCESSORIES:</strong></p><ul><li>Millpwr G2 2 axes CNC system</li><li>2 axes ball screws and servo drives</li><li>Auto lube system</li><li>3 axes Digital Readout system</li><li>Cross Way cover</li></ul><div>ITEM: 10" x 54" 2-Axis CNC Vertical Knee Mills</div><div>MANUFACTURER: SHARP</div><div>MODEL: TMV-MP-2 / TMV-1-MP-2 / TMV-DVS-MP-2</div><div><a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: SHARP TMV-MP-2 Series: ENTER MODEL#%0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br> CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY</span></a></div>
