<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Thickness (mild steel)
</div>
</td>
<td width="319" class="TableText">
<div align="center">.50"
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Max. Material Thickness (Stainless Steel)
</div>
</td>
<td width="319" class="TableText">
<div align="center">.250"
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Blade Rake Angle
</div>
</td>
<td width="319" class="TableText">
<div align="center">.5° - 2.0°
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Blade Clearance
</div>
</td>
<td width="319" class="TableText">
<div align="center">Manual Hand Wheel
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Back Gauge Length
</div>
</td>
<td width="319" class="TableText">
<div align="center">31.5" (motorized)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Shear Length
</div>
</td>
<td class="TableText">
<div align="center">120"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">20 hp
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Strokes Per Minute
</div>
</td>
<td class="TableText">
<div align="center">9
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Power
</div>
</td>
<td width="319" class="TableText">
<div align="center">220V / 3-phase
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Squaring Arm Length
</div>
</td>
<td class="TableText">
<div align="center">48" (Can be used on right or left side,<br>
includes 4 bump stops)
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Minimum Material Thickness
</div>
</td>
<td width="319" class="TableText">
<div align="center">18 ga
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Dimensions
</div>
</td>
<td width="319" class="TableText">
<div align="center">158" x 88" x 100"
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td width="319" class="TableText">
<div align="center">23,750 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul class="TableText">

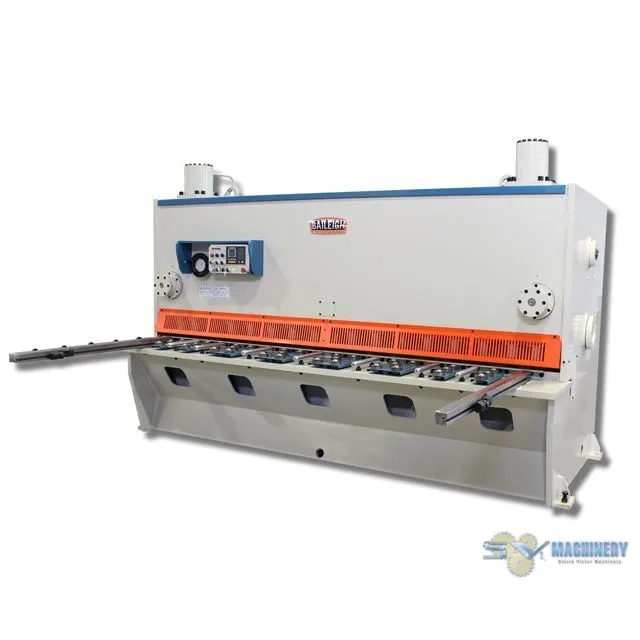

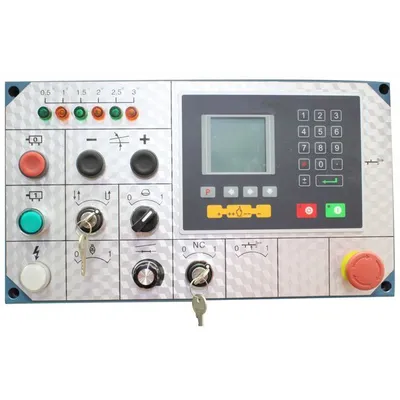

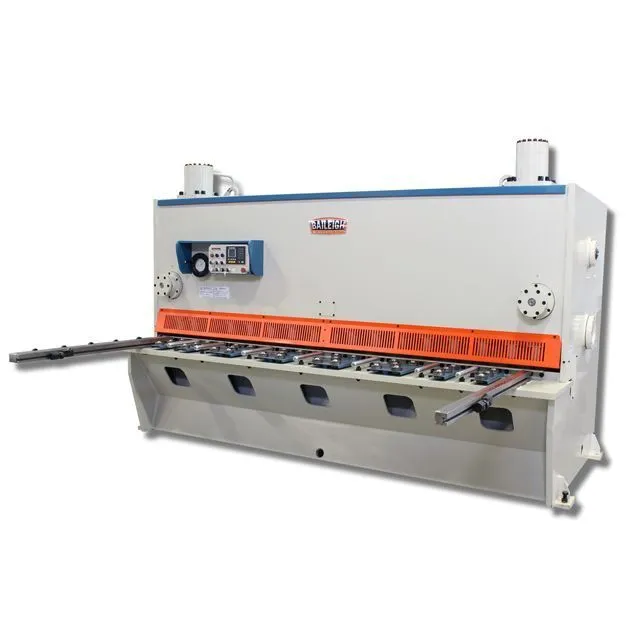

<li> Weighing over <strong>23,000 lbs. with a massive steel frame</strong>, this hydraulic shear will perform day in and day out for years. The <strong>NC controller</strong> lets you easily program the backgauge. </li>
<li><strong>120” length</strong> for up to 10-foot sheets.</li>
<li>Maximum capacity of <strong>½”-thick</strong> mild steel.</li>
<li>20 hp motor runs on <strong>220-volt 3-phase</strong> power.</li>
<li>Produces 9 strokes per minute.</li>
<li>Uses only the best components, like <strong>Schneider</strong> electrical parts, <strong>Rexroth</strong> hydraulics, and <strong>NOK</strong> seals from Japan.</li>
<li>Hydraulics are located in the front for simple fluid changes. Just lift the panels using the convenient handles.</li>
<li><strong>Squaring arms</strong> support the material and keep it square to the blade.</li>

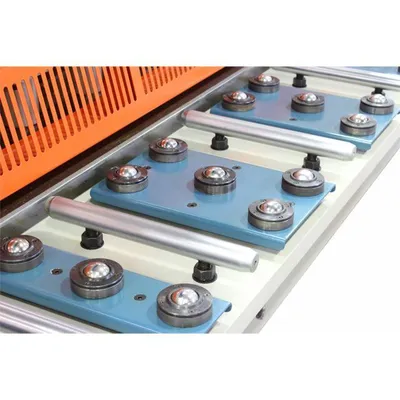

<li><strong>Roller infeed tables</strong>, mounted on the front, help you load heavy materials.</li>
<li><strong>Fully programmable backgauge</strong> is accurate to =/- .01mm.</li>
<li>Internal memory can hold up to <strong>100 programs</strong>.</li>
<li><strong>Adjustable blade gap</strong> prevents crimping or folding. Just turn the handwheel.</li>
<li>You can <strong>adjust the raked angle</strong> for your material thickness to minimize burr and reduce strain on the hydraulics. Press a button, then pull the lever until the light goes on.</li>
<li>Comes standard with shadow line positioner for accurate material placement.</li>
<li><strong>Fully welded and integrated steel plate frame</strong> eliminates vibrations and stress on the cutting process.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>We stock blades and other replacement parts, so we can get them to you quickly.</li>
<li>Includes <strong>lifetime technical support</strong> from our team of reps, all with hands-on metalworking experience.</li>
<li>Also available in a 96” model with ¼” maximum capacity and 120” model with ¼” maximum capacity.</li>
<li>You can add an <strong>optional sheet support system</strong> to this model at the time of order. Please call us for details. </li>
