<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Back Gauge Length
</div>
</td>
<td width="319" class="TableText">
<div align="center">24"
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Shear Length
</div>
</td>
<td width="319" class="TableText">
<div align="center">120"
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Motor
</div>
</td>
<td width="319" class="TableText">
<div align="center">5 HP
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Thickness (SS)
</div>
</td>
<td width="319" class="TableText">
<div align="center">14 ga. (18 ga.)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Minimum Material Thickness
</div>
</td>
<td class="TableText">
<div align="center">24 ga
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Strokes Per Minute
</div>
</td>
<td width="319" class="TableText">
<div align="center">20
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Front Gauge Length
</div>
</td>
<td width="319" class="TableText">
<div align="center">24"
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Blade Rake Angle
</div>
</td>
<td width="319" class="TableText">
<div align="center">2°
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Blade Angle
</div>
</td>
<td class="TableText">
<div align="center">2°
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Power
</div>
</td>
<td width="319" class="TableText">
<div align="center">220V / 3-phase
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Dimensions
</div>
</td>
<td width="319" class="TableText">
<div align="center">150" x 44" x 60"
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td width="319" class="TableText">
<div align="center">5,930 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

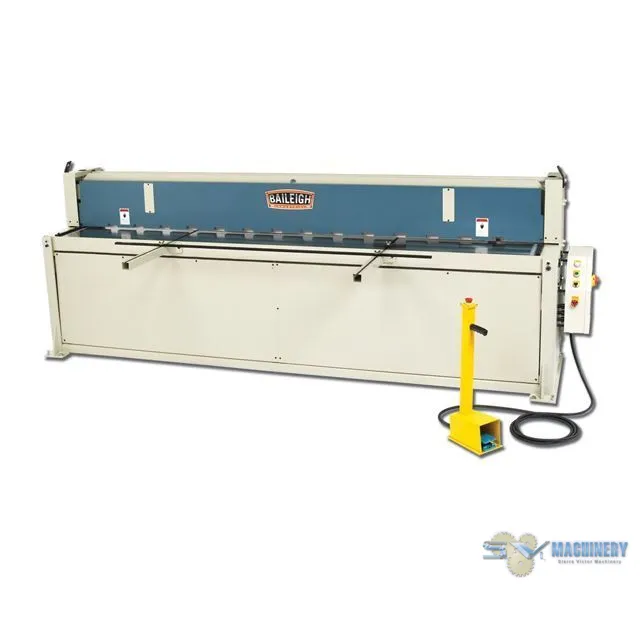

<li> This <strong>120”</strong> hydraulic shear lets you cut full sheets the long way. Built with a <strong>plate steel carriage</strong>, the rigid and simple SH-12014 will give you decades of dependable service. <br>
</li>
<li><strong>14 gauge</strong> mild steel maximum capacity.</li>
<li>Minimum capacity of 24 gauge mild steel.</li>
<li>5 hp motor runs on <strong>220-volt 3-phase</strong> power.</li>

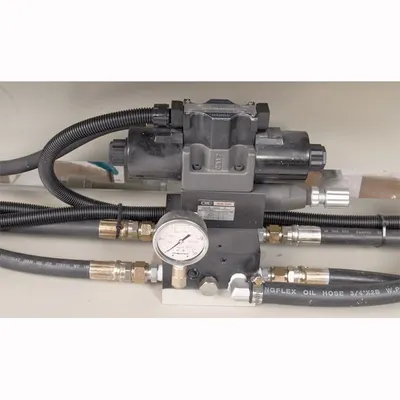

<li>Powerful <strong>industrial-grade hydraulics</strong> produce smooth movements that prolong blade life.</li>
<li>Up to <strong>20 strokes</strong> per minute</li>
<li>Adjustable <strong>24” backgauge</strong> helps ensure repeatability.</li>
<li><strong>Front support arms</strong> and table guides keep the material square to the blade.</li>
<li><strong>3 modes</strong> on the operator console:
<ul>
<li><strong>Inch mode:</strong> Jog the control and ease the blade down to the material.</li>
<li><strong>Single mode:</strong> Make one cut cycle per foot pedal push.</li>
<li><strong>Auto mode:</strong> Continue cycling as you hold the pedal down.</li>
</ul>
</li>
<li>Comes standard with <strong>high carbon chromium blades</strong>.</li>
<li>Blades have <strong>4 shearing edges</strong>, so you can turn them when an edge gets dull to extend blade life and save money. </li>
<li><strong>Hydraulic hold-downs</strong> clamp the sheet solidly to the table, eliminating material lifting and improving blade life.</li>
<li><strong>Fully welded steel construction</strong> helps prevent flex and maintain accuracy for many years.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>We stock replacement parts, including blades, in house for fast shipping. </li>
<li>Includes <strong>lifetime technical support</strong> by phone from a team of reps with hands-on metalworking experience.</li>
</ul>
