KMT SAW H310A 10 in. Automatic Hydraulic Horizontal Band Saw

KMT SAW H310A 10 in. Automatic Hydraulic Horizontal Band Saw

Have one to sell?
386-304-3720
dan@sierravictor.com
$22,500.00 USD

Or as low as $3,375.00 USD/month over 36 months

Have one to sell?

Overview

Type:
Horizontal Bandsaws Auto
Manufacturer:
KMT SAW
Model:
H310 A
Stock #:
H310A
Status:
For Sale

Description

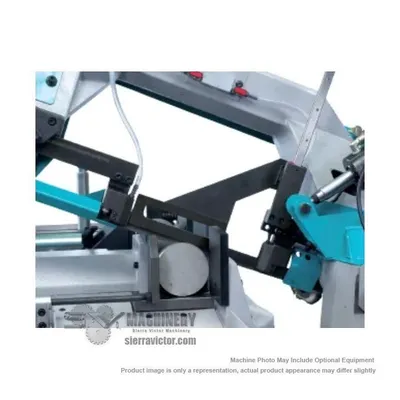

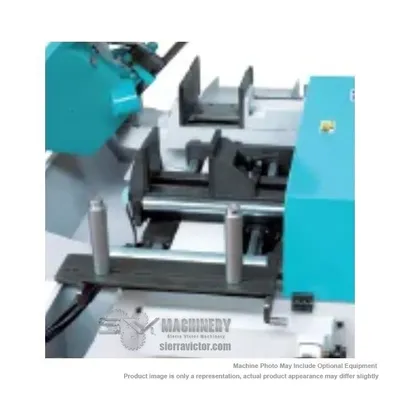

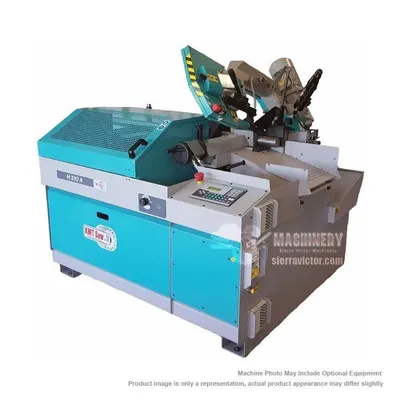

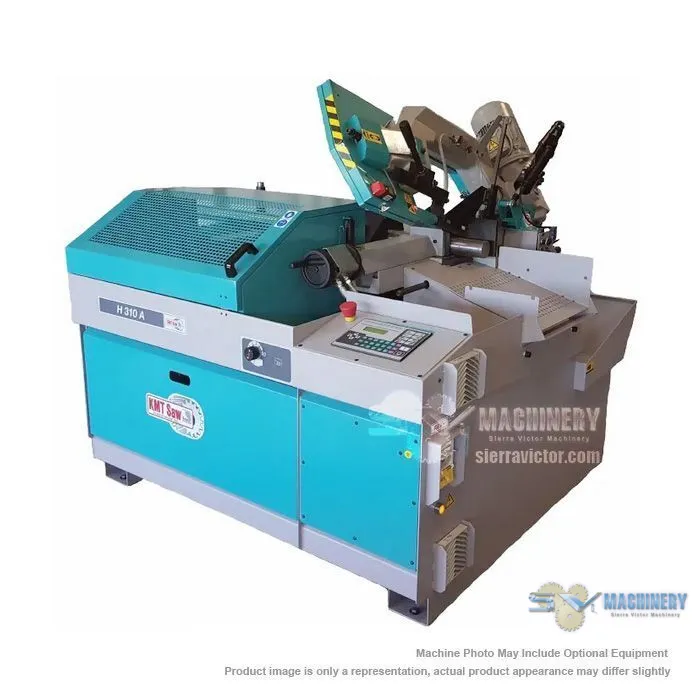

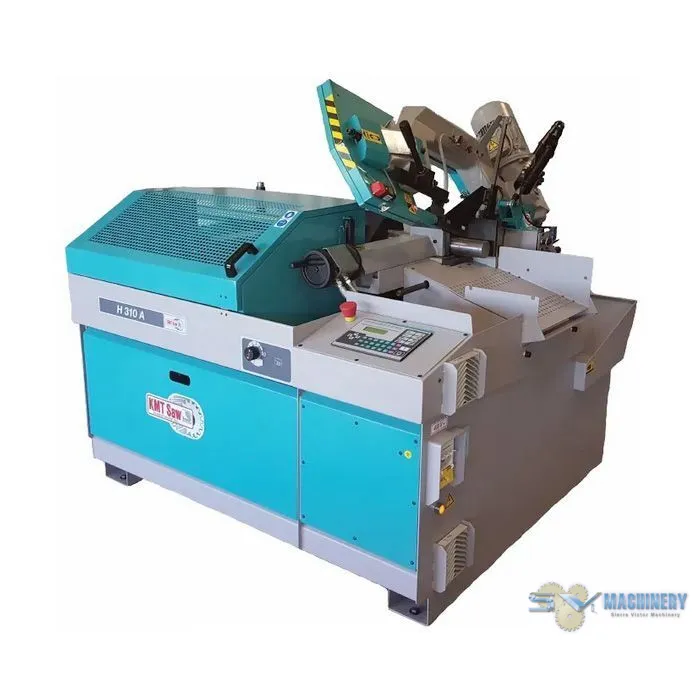

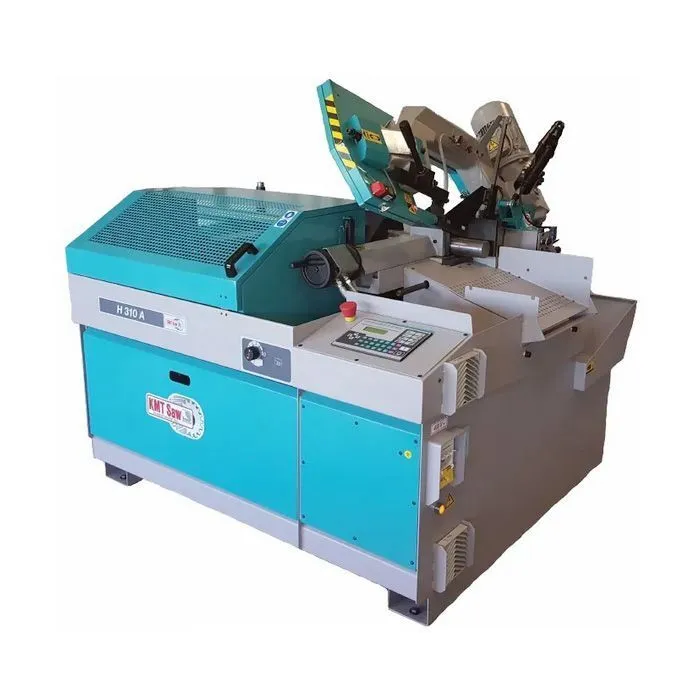

KMT SAW H310A Automatic Hydraulic Horizontal Band Saw has a round cutting capacity of 10 inches and offers fully automatic sawing in a tight footprint. Manual mitering up to 60 degrees and has a 2 HP Blade Drive available with 208V/3, 230V/3, or 460V/3-phase electrics. Standard equipment includes One Bi-metal saw blade, Low voltage control, TEFC 3 phase drive motor, Totally enclosed worm gear transmission, Full Coolant System, Full Blade Guarding, Operators Manual Parts List/Schematics and Tool kit.

Round at 0°10"254 mm
Square at 0°9 in.9 in.
Rectangle at 0°7 x 11-1/2 in.7 x 11-1/2 in.
Round at 45°R8.25"209.55 mm
Square at 45°R7.5 in.7.5 in.
Rectangle at 45°R6-1/4 x 7-3/4 in.6-1/4 x 7-3/4 in.
Round at 60°R5"127 mm
Square at 60°R4.25 in.4.25 in.
Rectangle at 60°R4 x 4 in.4 x 4 in.
Blade Motor2 HP2 HP
Blade Speed60-360 fpm60-360 fpm
Saw Blade SizeH 1" x s.035" x L 9' 1"H 1" x s.035" x L 9' 1"
Power208V/3-ph, 230V/3-ph, 460V/3-ph (Specify)208V/3-ph, 230V/3-ph, 460V/3-ph (Specify)
Vise Opening12"304.8 mm
Material Working Height37"939.8 mm
DimensionsW 73 x L 68 in.W 73 x L 68 in.
Weight1,500 lbs.1,500 lbs.

*Material Working Height (from floor to table top)

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional items - Call for price:
* AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
* AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
* AC103: Additional 6' connecting to AC102
* AC116: Spray mist coolant
