<p><b>SPECIFICATIONS:</b><br></p>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td>
<div><span style="color: #ffffff;"><strong>MODEL</strong></span>
</div>
</td>
<td width="219">
<div><span style="color: #ffffff;"><strong>PM23130K<br></strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Blade Diameter (in.)
</div>
</div>
</td>
<td>
<div>10
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Arbor Diameter (in.)
</div>
</div>
</td>
<td>
<div>5/8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Arbor Speed (RPM)
</div>
</div>
</td>
<td>
<div>4,300
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Maximum Depth of Cut (in.)
</div>
</div>
</td>
<td>
<div>
<div>3-1/8
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Maximum Depth of Cut at 45 Degrees (in.)
</div>
</div>
</td>
<td>
<div>
<div>2-1/8
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Maximum Rip Right of Blade (in.)
</div>
</div>
</td>
<td>
<div>30
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Maximum Rip Left of Blade (in.)
</div>
</div>
</td>
<td>
<div>
<div>13-1/2
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Table in Front of Saw Blade at<br> Maximum Depth of Cut (in.)
</div>
</div>
</td>
<td>
<div>
<div>11-1/4
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Maximum Width of Dado (in.)
</div>
</div>
</td>
<td>
<div>
<div>13/16
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Maximum Diameter of Dado (in.)
</div>
</div>
</td>
<td>
<div>8
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Table Height (in.)
</div>
</div>
</td>
<td>
<div>34-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Table Size with Standard Extension<br> (L x W/in.)
</div>
</div>
</td>
<td>
<div>
<div>42 x 30-1/2
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Table Size without Extension (L x W/in.)
</div>
</div>
</td>
<td>
<div>
<div>22 x 30-1/2
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Dust Port Diameter (OD/in.)
</div>
</div>
</td>
<td>
<div>4
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Dust Collection Minimum CFM Required
</div>
</div>
</td>
<td>
<div>350 cu.ft/min
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Dust Collection Adapter Port
</div>
</div>
</td>
<td>
<div>—
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Leg Stand with Steel Storage
</div>
</div>
</td>
<td>
<div>—
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Motor Amps
</div>
</div>
</td>
<td>
<div>13
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Rapid Wing Extension
</div>
</div>
</td>
<td>
<div>—
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Maximum Cross Cut (in.)
</div>
</div>
</td>
<td>
<div>—
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Miter Gauge Type
</div>
</div>
</td>
<td>
<div>
<div>Deluxe, micro adjustable with <br> Aluminum extruded fence
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Table Size without Wings (L x W/in.)
</div>
</div>
</td>
<td>
<div>
<div>22 x 30-1/2
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Table Type
</div>
</div>
</td>
<td>
<div>
<div>Cast Iron
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Distance Between Sliding Table and Blade (in.)
</div>
</div>
</td>
<td>
<div>—
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Motor
</div>
</div>
</td>
<td>
<div>3 HP, 1 Ph, 230V
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor Current
</div>
</td>
<td>
<div>13 A
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Dimensions ( L / W / H ) (in.)
</div>
</td>
<td>
<div>
<div>65 x 37 x 39
</div>
</div>
</td>
</tr>
<tr>
<td width="295" bgcolor="#cccccc">
<div>Net Weight ( lb. )
</div>
</td>
<td>
<div>627
</div>
</td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES:</b></p>

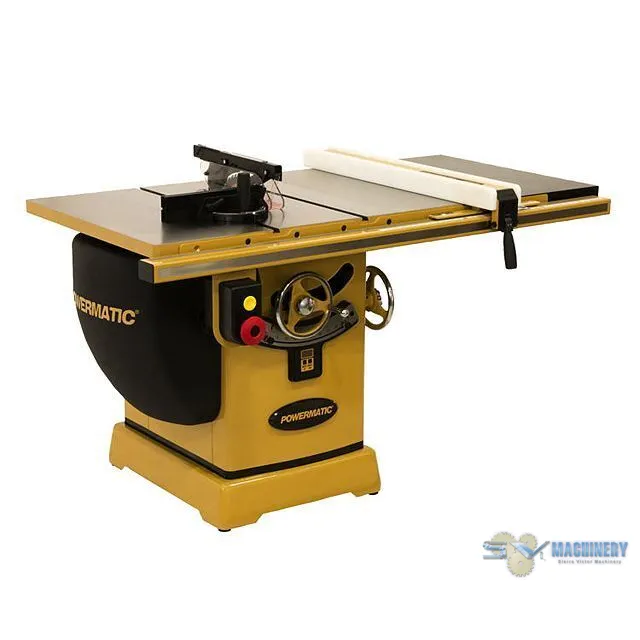

<p>The award winning PM2000 table saw sets a new standard for innovation with an array of patented features and massive body design. It boasts the heaviest cast iron base in its class that virtually eliminates table vibration. The cast iron tables are oversized, and the push button arbor lock is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale has adjustable angle indicators for repetitive bevel cuts. Built-in retractable omni-directional caster system mobilizes your table saw. A wide stance, heavy-duty trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build up. Built-in dust collection port with sloped cabinet floor and convenient access to the inside of the saw cabinet make for simple clean-up. The saw has a proprietary safety switch with magnetic interlock, and the stop button can be knee activated.<br></p>
