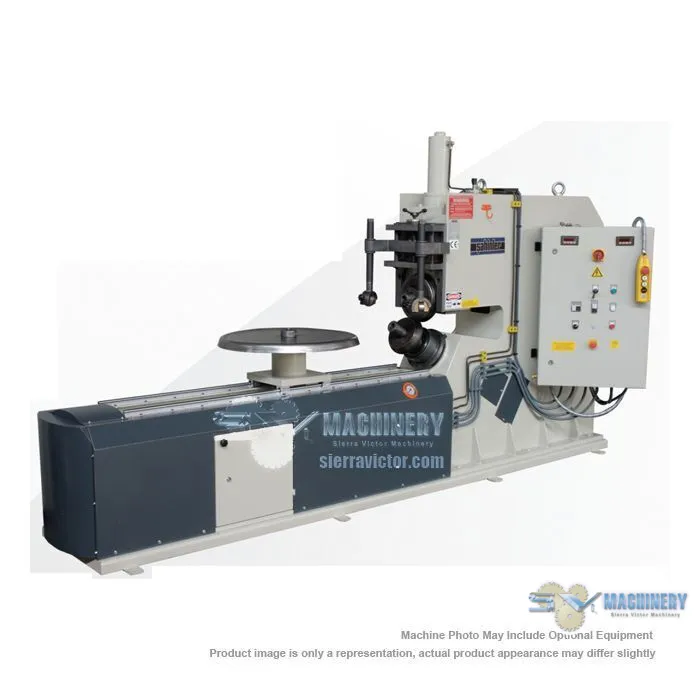

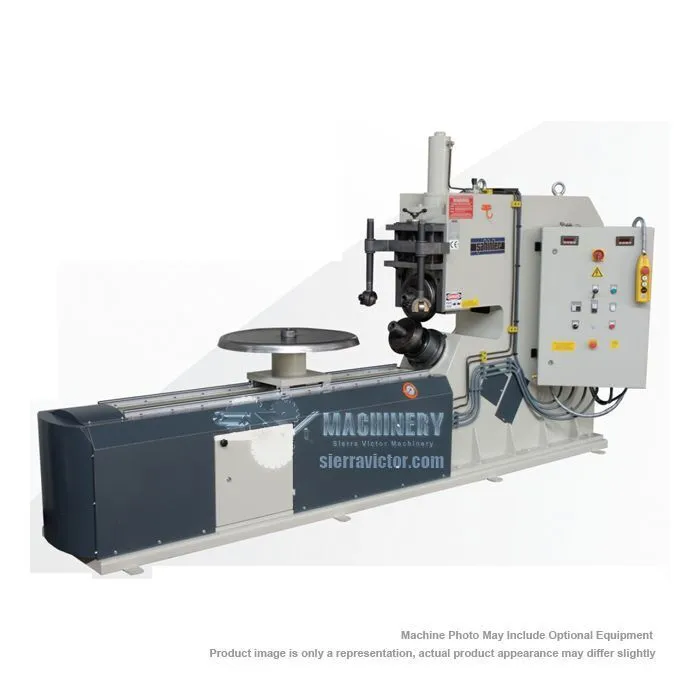

COLE-TUVE SDK-6 1/4 in. Combo Shear Flanger

COLE-TUVE SDK-6 1/4 in. Combo Shear Flanger

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Flangers
Manufacturer:
COLE TUVE
Model:
SDK-6
Condition:
Build To Order
Stock #:
SDK-6
Status:
For Sale

Description

The Cole-Tuve SDK-6 has both Cutting and Flanging Operation on the Same Heads. Manually Adjustable Sheet Centering for Both Flat and Crowned Dish Flanging. Top And Bottom Flanging Rolls Powered in Rotation with Planetary Reducers.

Maximum Capacity - Mild Steel1/4 in.1/4 in.
Maximum Capacity - Stainless Steel0.1875 in
Max. Plate Diameter157 in.157 in.
Min. Plate Diameter17-5/16 in.17-5/16 in.
Max. Flanging Radius1.38 in.1.38 in.
Max. Flanging Length2 in.2 in.
Motor10.5 HP10.5 HP
Dimensions168 x 29 x 79 in.168 x 29 x 79 in.
Weight4510 lbs.4510 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
Flanging Rolls
R.B.: 30 mm
R.B.: 35 mm
Extra Set of Cutting Blades
