<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Abrasive blade diameter</span>
</div>
</td>
<td class="TableText">
<div align="center">10 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Material capacity</span>
</div>
</td>
<td class="TableText">
<div align="center">1.5 in. solids, 2.5 in. pipe
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Motor </span>
</div>
</td>
<td class="TableText">
<div align="center">2HP, 3Ph, 220 and or 440 volts (specify)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">3PH FLA</span>
</div>
</td>
<td class="TableText">
<div align="center">220V 5.2 amps and 440V 2.6 amps
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Pump FLA</span>
</div>
</td>
<td class="TableText">
<div align="center">115V 2.4 amps
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Tank capacity
</div>
</td>
<td class="TableText">
<div align="center">6 gallons
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Machine RPM</span>
</div>
</td>
<td class="TableText">
<div align="center">3450
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Arbor size</span>
</div>
</td>
<td width="257" class="TableText">
<div align="center">5/8 in. LH spindle arbor, <br>
optional: 1.250 in. or 32mm
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center"><span data-preserver-spaces="true">Controls</span>
</div>
</td>
<td class="TableText">
<div align="center">Magnetic controls
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Construction
</div>
</td>
<td class="TableText">
<div align="center">all steel
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Shipping dimensions without stand </span>
</div>
</td>
<td class="TableText">
<div align="center">L 37 x W 47 x H 39 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Shipping dimensions with stand:</span>
</div>
</td>
<td class="TableText">
<div align="center"><strong><span data-preserver-spaces="true"> </span></strong>L 48 x W 35 x H 69 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Shipping weight without stand</span>
</div>
</td>
<td class="TableText">
<div align="center">500 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Shipping weight with stand</span>
</div>
</td>
<td class="TableText">
<div align="center">700 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

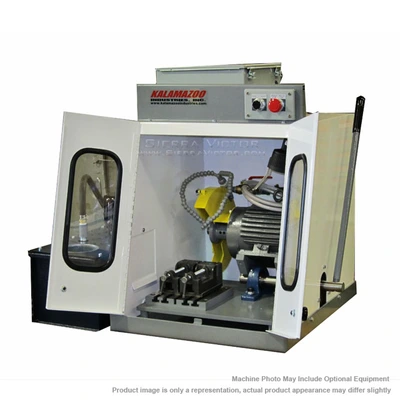

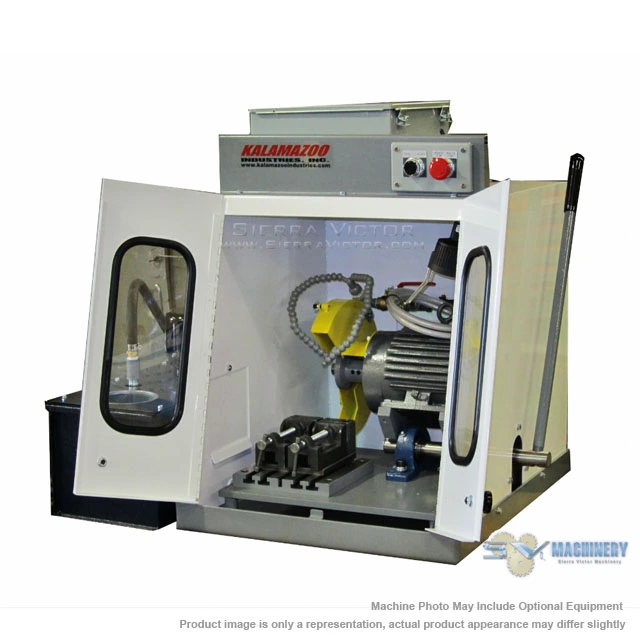

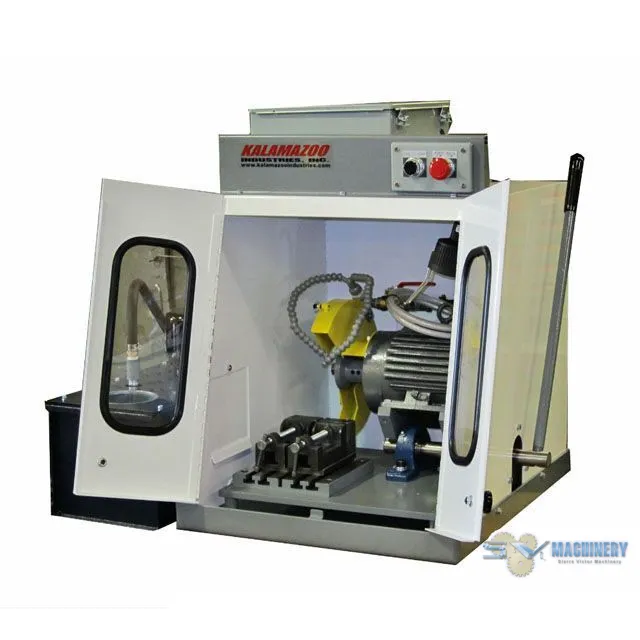

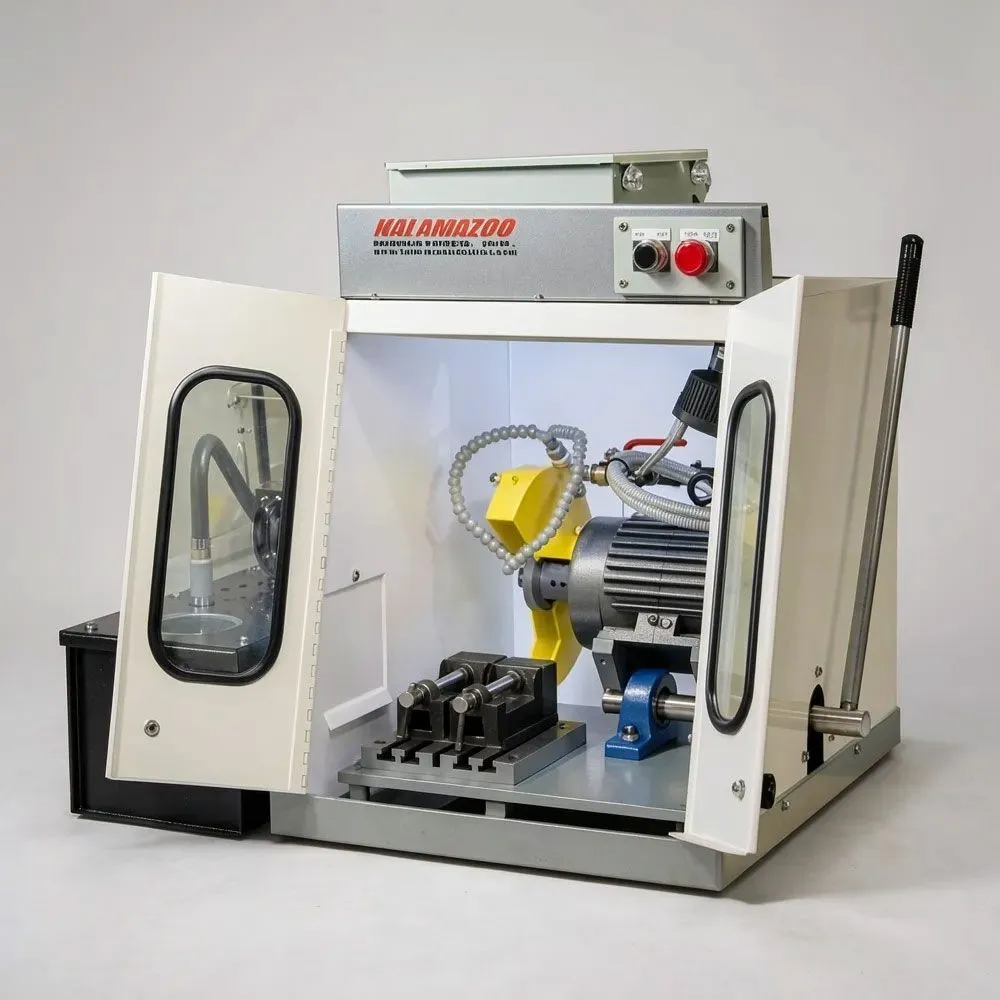

<li>Streamline your metallurgical analysis with the Kalamazoo K10WBT. Prevent sample distortion, save time on prep, and ensure accurate QC testing.</li>
<li><span data-preserver-spaces="true">Motor Specifications: 2HP 3Ph 220 and or 440 volts.</span></li>
<li><span data-preserver-spaces="true">Heavy-duty recirculating pump</span></li>
<li>Fully enclosed</li>
<li>Removable access panel for motor access</li>
<li>Metal coolant tank</li>
<li>24V at on/off push/pull buttons</li>
<li>Two robust replaceable 2-7/16 tool makers vises</li>
<li>Internal lite</li>
<li>Adjustable dual coolant flare nozzles with flow control ball valve</li>
<li>Wash down hose</li>
<li>T-Slot Table</li>

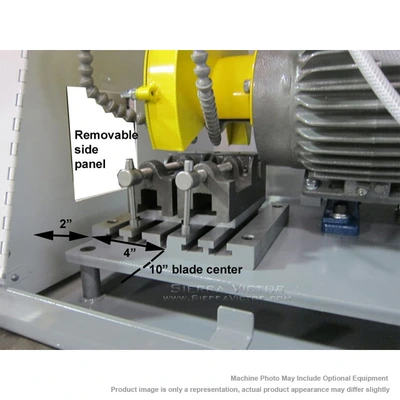

<li>Removable 5 in. LEFT side access panel for long parts. (Will not allow the bar to pass thru the other side of the saw cabinet).</li>
<li><strong>10 Inch Metallurgical Wet Saw Benefits:</strong>
<ul>
<li><strong>Ensure Accurate Quality Control:</strong> Precise cuts give you reliable data for material analysis and inspection.</li>
<li><strong>Save Time on Sample Prep:</strong> Efficient cutting and easy cleanup speed up steel inspection in manufacturing by ensuring samples are ready for analysis faster.</li>
<li><strong>Protect Valuable Samples:</strong> Minimize heat damage and deformation, preventing wasted material, inaccurate results, and potential production delays.</li>
<li><strong>Adapt to a Variety of Materials:</strong> Handle different metals and alloys used in your manufacturing processes with confidence.</li>
<li><strong>Verify Incoming Material Quality:</strong> Check purchased materials against specifications before they enter production.</li>
<li><strong>Catch Production Issues Early:</strong> Regular sampling and testing can reveal potential problems before they cause costly defects.</li>
<li><strong>Maximize Lab Efficiency: </strong>Faster sample prep frees up technicians, streamlining the workflow for steel inspection and beyond.</li>
<li><strong>Achieve Reliable Test Results:</strong> Accurate cuts are essential for valid metallurgical analysis.</li>
<li><strong>Expand Your Lab’s Capabilities:</strong> Handle a wider range of materials and sample types.</li>
<li><strong>Prevent Costly Production Errors:</strong> Inaccurate quality control can lead to defective products, recalls, and damage to your reputation.</li>
<li><strong>Streamline Your QC Process:</strong> Faster sample prep means quicker identification of issues and more efficient workflows.</li>
<li><strong>Maintain Production Schedules:</strong> Reliable QC helps avoid unexpected delays caused by material failures and rework.</li>
<li><strong>Safeguard Your Reputation:</strong> Consistent quality control protects your brand’s image and customer trust.</li>
<li><strong>Justify Your Equipment Investment:</strong> A durable, high-quality saw delivers long-term ROI for the lab or manufacturing facility.</li>
</ul>
</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>12-WBT: K10WBT industrial steel stand - $CALL</li>
</ul>
