<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Disc Diameter
</div>
</td>
<td class="TableText">
<div align="center">10 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Belt Sander
</div>
</td>
<td class="TableText">
<div align="center">2 x 48 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="213" class="TableText">
<div align="center">Motor
</div>
</td>
<td width="301" class="TableText">
<div align="center"><span data-preserver-spaces="true">1/2 HP 1 PH 115V motor. </span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">1PH FLA
</div>
</td>
<td class="TableText">
<div align="center"><span data-preserver-spaces="true">115V 7.4 amps and 230V 3.7 amps</span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Flexible Work Table
</div>
</td>
<td class="TableText">
<div align="center">Adjusts from 0°– 45°
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true"> Shipping dimensions</span>
</div>
</td>
<td class="TableText">
<div align="center">L 21 x W 31 x H 33 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center"> 120 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

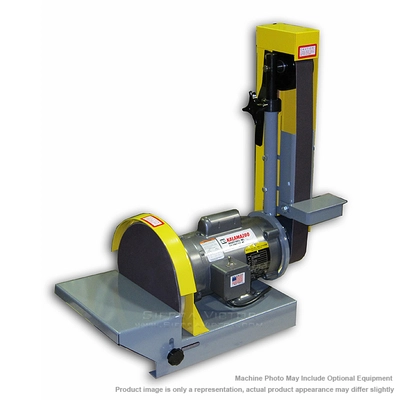

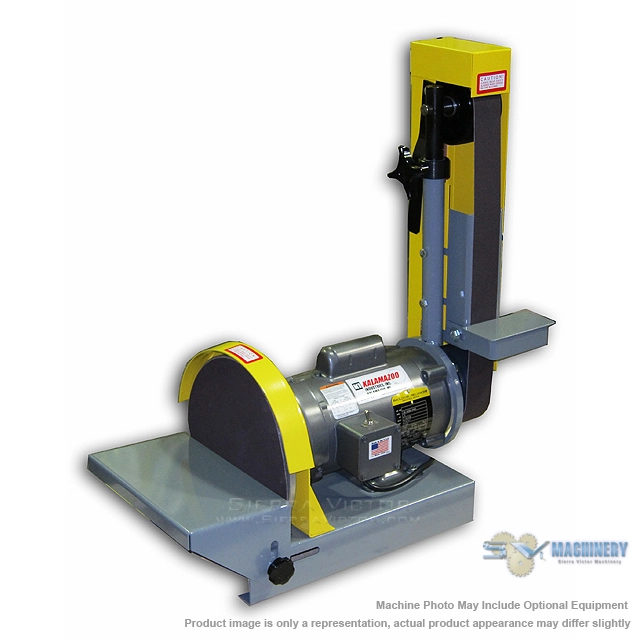

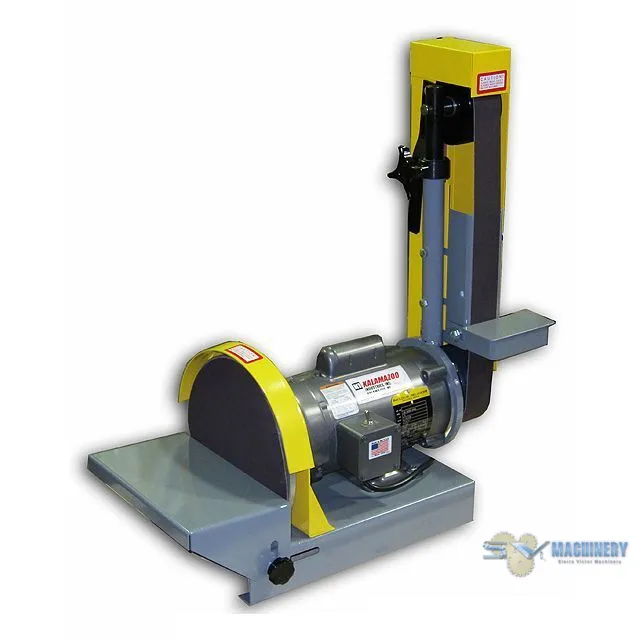

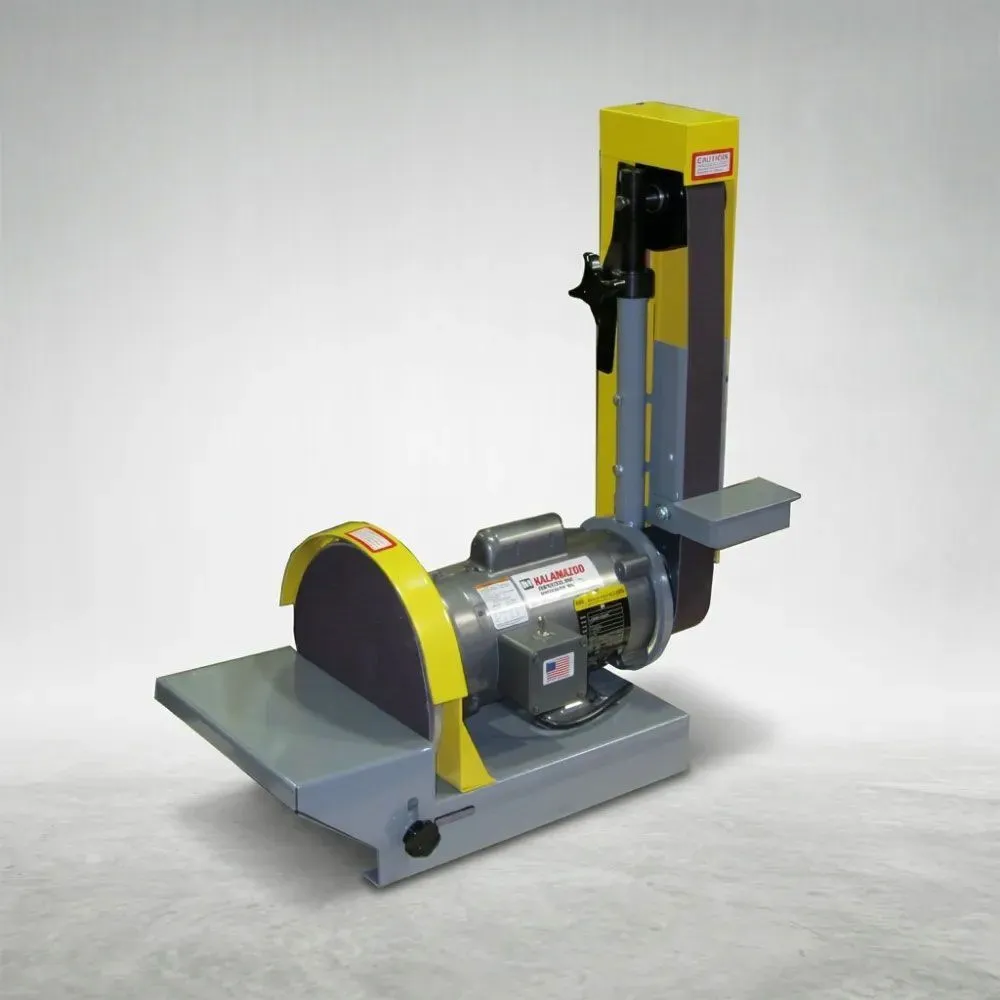

<li>The DS10-2M is a heavy-duty, versatile combination belt and disc sander. This 1/2HP 1PH machine works with all sanding belts and discs, which allows you to deburr, polish, clean, and sharpen many different materials. To help you expedite the material finishing process, you can operate this unit with two different grits.</li>
<li>1/2 HP 1 PH 115V motor. </li>
<li>Disc sander: 10" disc. </li>
<li>Belt sander: 2" x 48"</li>
<li>Multi-position belt sander head</li>
<li>Spring belt tension.</li>
<li>Belt changing lever (located on guard)</li>
<li>Steel construction.</li>
<li>Removable and replaceable steel platen</li>
<li>The belt sander steel platen is adjustable and replaceable</li>
<li>The disc sander work table is flexible. Adjusts from 0°– 45° with locking table knobs on the left and right side of the work table.</li>
<li>Machine shipping weight: 120 lbs. (SHIPS BY TRUCK ONLY)!</li>
<li><strong>WHAT GRITS CAN BE USED:</strong>
<ul>
<li>All grit types can be used on this sander to get your desired surface finish. Having one grit on the belt and another on the PSA adhesive disc improves the finishing time and doesn’t affect the machine’s performance. </li>
</ul>
</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li><span data-preserver-spaces="true">Mitre gauge (MG-10) </span></li>
<li><span data-preserver-spaces="true"> Stand (12-W</span>)</li>
</ul>
