<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Disc Diameter
</div>
</td>
<td class="TableText">
<div align="center">10 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="213" class="TableText">
<div align="center">Motor
</div>
</td>
<td width="301" class="TableText">
<div align="center"><span data-preserver-spaces="true">1/2 HP (110/220V) 1 PH 115V motor<br>
<span data-preserver-spaces="true">Optional: 3PH unit available (call for pricing).</span></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Single phase amp draws</span>
</div>
</td>
<td class="TableText">
<div align="center">115V 7.4 amps and 230V 3.7 amps
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Arbor</span>
</div>
</td>
<td class="TableText">
<div align="center">5/8 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Adjustable Tilt Table
</div>
</td>
<td class="TableText">
<div align="center">45° down – 15° up
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true"> Worktable Working Area</span>
</div>
</td>
<td class="TableText">
<div align="center">6 x 11 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true"> Shipping dimensions</span>
</div>
</td>
<td class="TableText">
<div align="center">L 19 x W 14 x H 14 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center"> 50 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

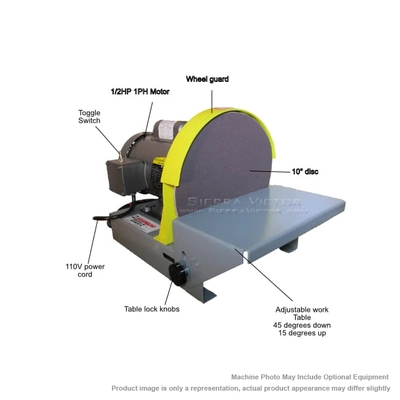

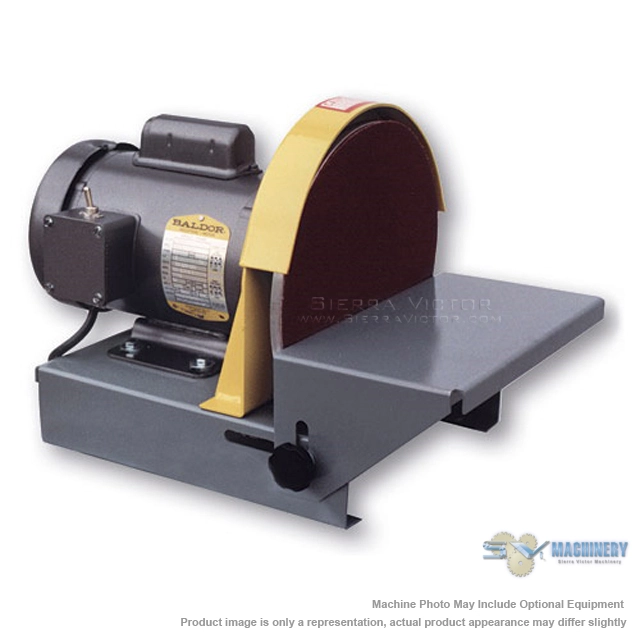

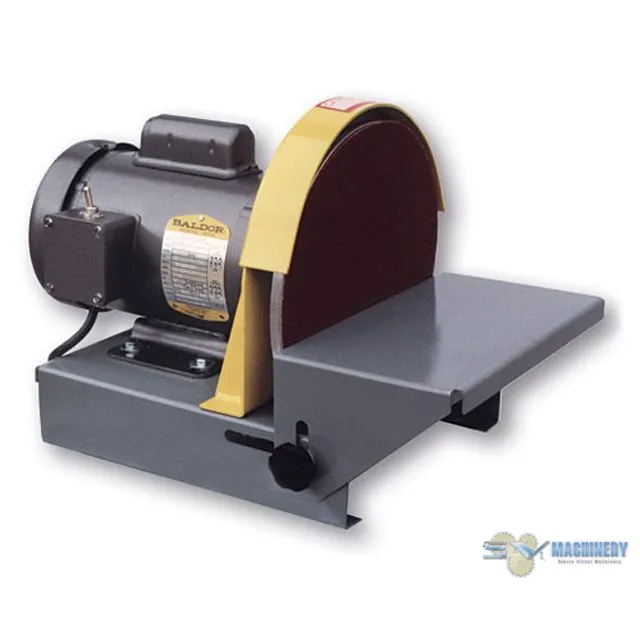

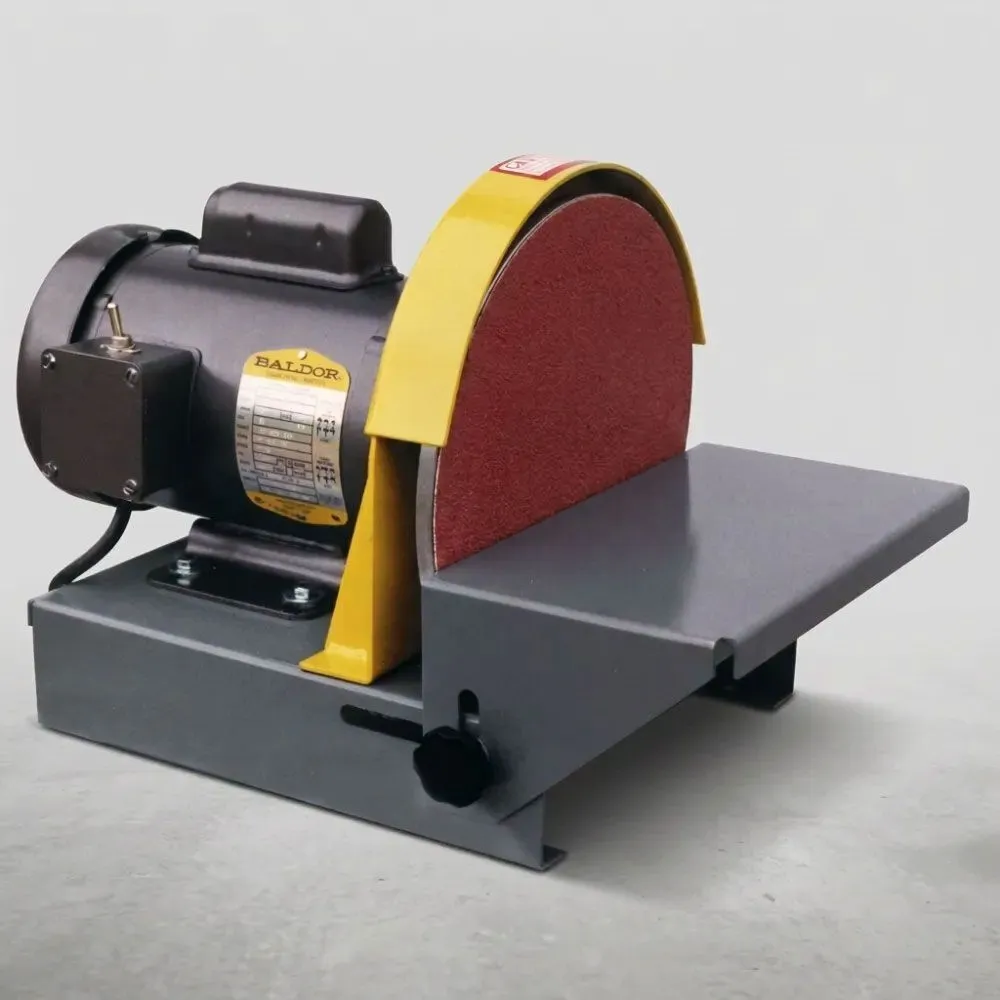

<li>DS10 10 inch industrial disc sander with the appropriate grit is an effective tool engineered for deburring, flatwork, edge work, and trueing outside curves. The DS10 features a heavy-duty 1/2HP 1PH motor, all steel construction, an adjustable worktable, and replaceable parts.</li>
<li>1/2 HP (110/220V) 1 PH 115V motor</li>
<li>On/off toggle switch with 115V power cord.</li>
<li>Direct drive</li>
<li>Heavy-duty all-steel construction</li>
<li>Steel disc guard. </li>
<li>Adjustable steel locking tilt table, 45° down – 15° up</li>
<li>10" replaceable aluminum disc</li>
<ul>
</ul>
</ul>
<p><strong>DS10 10 INCH INDUSTRIAL DISC SANDER FOLLOWING APPLICATIONS:</strong>
</p>
<ul><li>Bevel</li><li>Deburr</li><li>Rounding ends</li><li>Squaring-up ends</li><li>Flatwork</li><li>Clean up work</li><li>Trueing outside curves</li><li>Fitting mitre joints</li><li>Edgework</li></ul>
<p><strong>THE DISC IS EFFECTIVE WITH SANDING THE FOLLOWING:</strong></p>
<ul><li>Metal</li><li>Aluminum</li><li>Brass</li><li>Cast Aluminum</li><li>Wood</li></ul>
<p><b>OPTIONAL ITEMS:</b><b></b></p>
<b>
<ul>
<li>MG-10: Mitre gauge: $47.00</li>
</ul>
