<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody>
<tr class="Title_white_bold">
<td bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>JBG-10B</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Part #
</div>
</td>
<td>
<div align="center">JT9-577103
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div align="center">Shaft Diameter (in.)
</div>
</td>
<td width="257">
<div align="center">1
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Wheel Diameter (dia. x W/in.)
</div>
</td>
<td>
<div align="center">10 x 1
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Wheel Speed (RPM)
</div>
</td>
<td>
<div align="center">1,725
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Wheel Grits
</div>
</td>
<td>
<div align="center">24/46
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center">Dimensions (in.)
</div>
</td>
<td>
<div align="center">25 x 16 x 15
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div align="center"> Weight (lb.)
</div>
</td>
<td>
<div align="center">110
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>

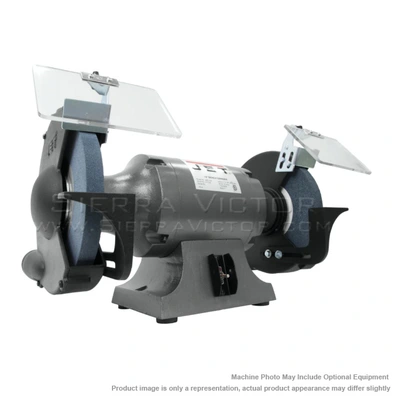

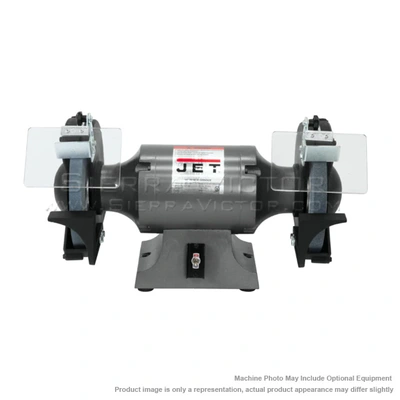

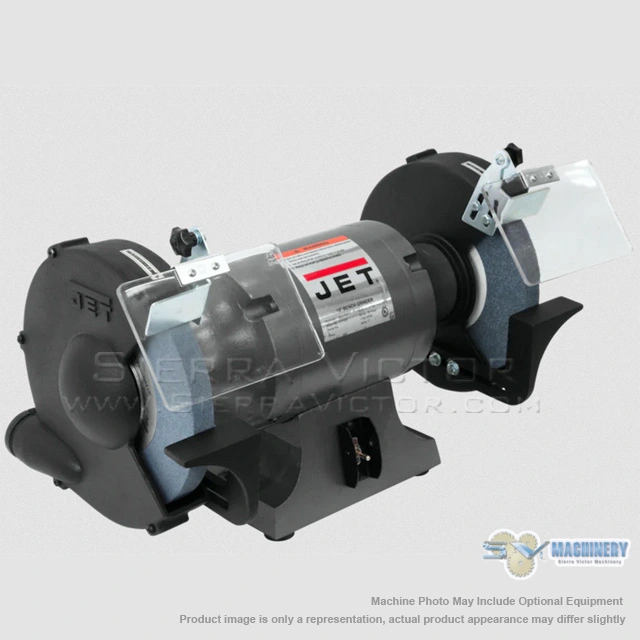

<li>For shops that may be short on space, a cast iron JET Bench Grinder delivers work power and pristine finishes. Built to withstand the high-volume demands of even the busiest shops, this high-quality machine grinds, sharpens and smooths with equal precision and flawless results</li>
<li>For added safety, the JBG-10B follows strict guidelines and electrical requirements to be CSA Listed</li>
<li>Totally enclosed pre-lubricated ball bearings</li>
<li>Rubber mounts prevent movement</li>
<li>Heavy-duty guarded toggle switch</li>
<li>Cast iron wheel guards and dust vents</li>
<li>One-piece quick adjusting spark guards</li>
<li>Large eye shields with quick adjustment</li>
<li>Adjustable tool rests</li>
<li>Fine and coarse vitrified grinding wheels included</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>JT9-577172 - Pedestal Stand for Bench Grinders (JPS-2A): $219.99</li>
</ul>
