<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td>
<div><span style="color: #ffffff;"><strong>MODEL</strong></span>
</div>
</td>
<td width="257">
<div><span style="color: #ffffff;"><strong>J-7020M</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Part #
</div>
</div>
</td>
<td>
<div>
<div>JT9-414474
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Cutting Capacity (W x D) (In.)
</div>
</td>
<td>
<div>10 x 16
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>
<div>Round at 90° (in.)
</div>
</div>
</td>
<td>
<div>
<div>10
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Round at 45° (in.)
</div>
</td>
<td>
<div>8-1/2
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Rectangle at 90° (in.)
</div>
</div>
</td>
<td>
<div>
<div>2 x 16 / 10 x 14
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Rectangle at 45° (in.)
</div>
</td>
<td>
<div>8-1/2 x 9
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Head Movement (Deg.)
</div>
</td>
<td>
<div>45°
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Vise Swivels (deg.)
</div>
</td>
<td>
<div>45°
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Blade Size (in.)
</div>
</div>
</td>
<td>
<div>
<div>1 x .035 x 135
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Blade Length (In.)
</div>
</td>
<td>
<div>135
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Coolant Tank (gal)
</div>
</div>
</td>
<td>
<div>
<div>8
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Blade Wheel Diameter (in.)
</div>
</td>
<td>
<div>14
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Blade Speeds (SFPM)
</div>
</div>
</td>
<td>
<div>
<div>100-350
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Bed Height (in.)
</div>
</div>
</td>
<td>
<div>
<div>25-1/2
</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Floor Space Required (in./LxWxH)
</div>
</td>
<td>
<div>76 x 30 x 48
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>
<div>Ship Weight (lbs.)
</div>
</div>
</td>
<td>
<div>
<div>1,134
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Motor
</div>
</div>
</td>
<td>
<div>
<div>1-1/2 HP, 115/230V, 1 Ph
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Prewired
</div>
</td>
<td>
<div>Prewired 230V
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 2 YEAR</strong>
</p>
<ul>

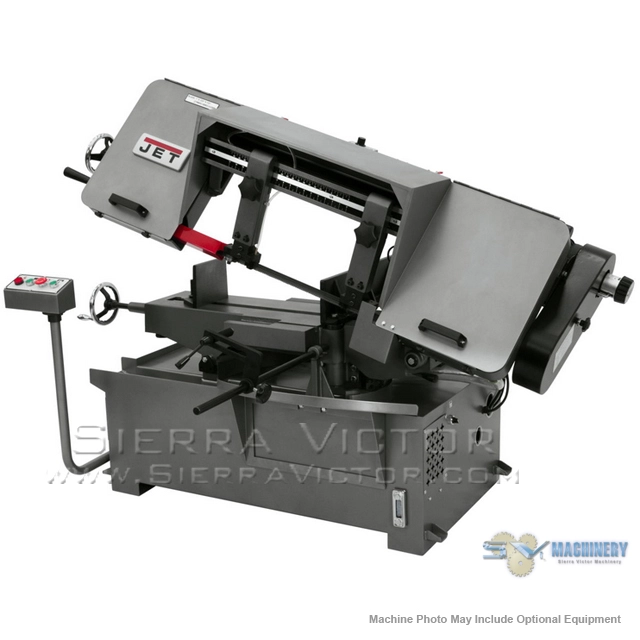

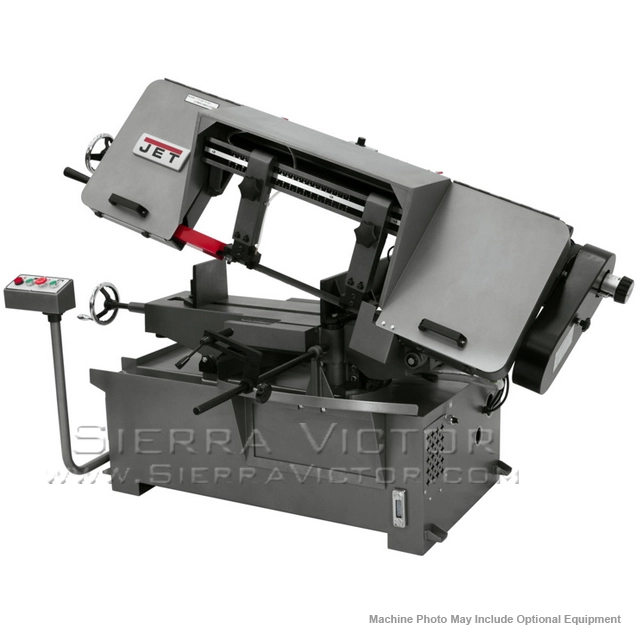

<li>JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.</li>
<li>Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured</li>
<li>Swing away control panel houses major saw controls</li>
<li>Variable speed drive system allows the operator to easily fine tune the blade speed</li>
<li>Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades</li>
<li>The blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally</li>
<li>Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder</li>
<li>Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath</li>
<li>Cast Iron blade wheels</li>
<li>Coolant system</li>
<li>Adjustable material stop</li>
<li>1" Bi-Metal blade</li>
</ul>
