<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody>
<tr class="Title_white_bold" bgcolor="#333333">
<td class="Title_white_bold" width="68" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM#</strong></span>
</div>
</td>
<td class="TableText" width="72" bgcolor="#CCCCCC">
<div class="TableText" align="center">Belt Size
</div>
</td>
<td class="TableText" width="127" bgcolor="#CCCCCC">
<div align="center">Speed
</div>
</td>
<td class="TableText" width="78" bgcolor="#CCCCCC">
<div align="center">Ship Weight (lbs.)
</div>
</td>
<td class="TableText" width="48" bgcolor="#CCCCCC">
<div align="center">HZ
</div>
</td>
<td class="TableText" width="36" bgcolor="#CCCCCC">
<div align="center">HP
</div>
</td>
<td class="TableText" width="75" bgcolor="#CCCCCC">
<div align="center">Volt / Phase
</div>
</td>
</tr>
<tr class="TableText">
<td class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>70100</strong></span>
</div>
</td>
<td rowspan="2" bgcolor="#FFFFFF">
<div align="center">1-1/2" x 60"
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">Fixed Speed <br>
8,000 SPFM
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">110
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">60
</div>
</td>
<td rowspan="4" bgcolor="#FFFFFF">
<div align="center">1.5
</div>
</td>
<td rowspan="4" bgcolor="#FFFFFF">
<div align="center">120/1
</div>
</td>
</tr>
<tr class="TableText">
<td class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>72110</strong></span>
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">800-8000 SFPM<br>
Variable-Speed
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">130
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">50-60
</div>
</td>
</tr>
<tr class="TableText">
<td class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>75100</strong></span>
</div>
</td>
<td rowspan="2" bgcolor="#FFFFFF">
<div align="center">2" x 60"
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">Fixed Speed <br>
8,000 SFPM
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">110
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">60
</div>
</td>
</tr>
<tr class="TableText">
<td class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>77110</strong></span>
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">800-8000 SFPM<br>
Variable-Speed
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">130
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">50-60
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Limited
</p>
<p>*Includes magnetic starter (NEMA 12) and controls without power cord.
</p>
<ul>
<li>MADE IN USA</li>
<li>Burr King's family of three wheel grinders provides maximum versatility. Contact wheel, platen, work rest support, and loose belt grinding are precision controlled with positive belt tracking, quick belt change, and linear belt tension.</li>
<li>Constructed of rugged cast aluminum and precision machined components, every Burr King grinder delivers unexcelled grinding performance and reliability.</li>

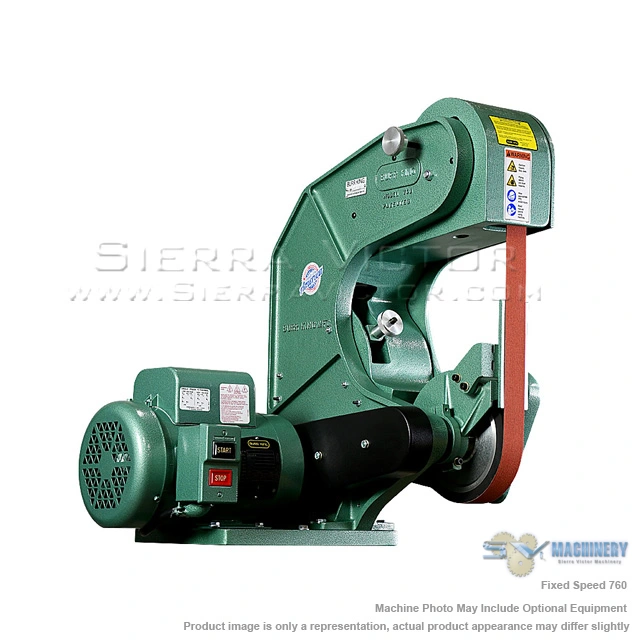

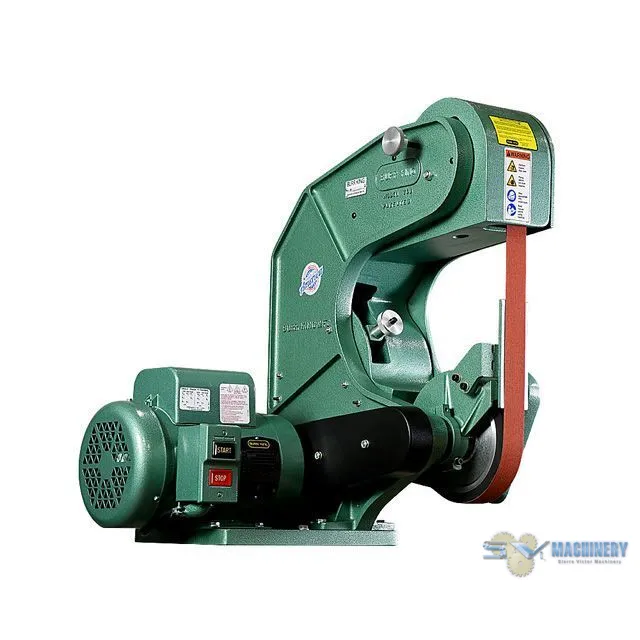

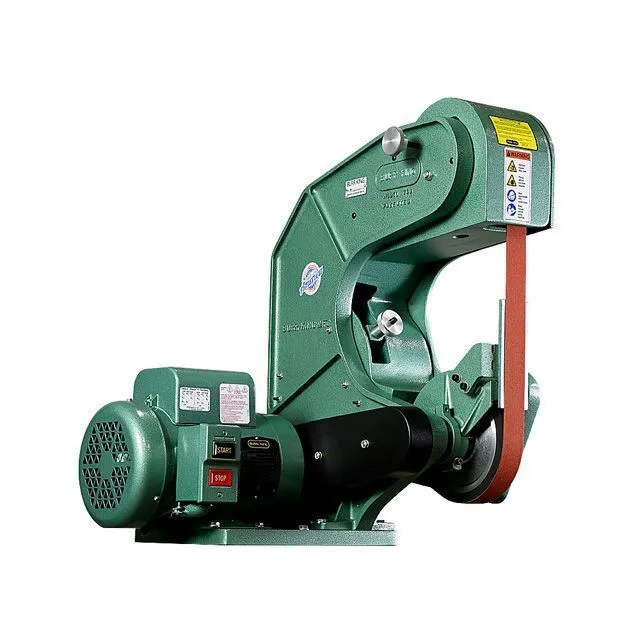

<li><strong>Model 760 is the largest example of our versatile three wheel belt grinders. Model 760 offers contact, backup platen, worktable and loose belt grinding at 8000 SFPM.</strong></li>

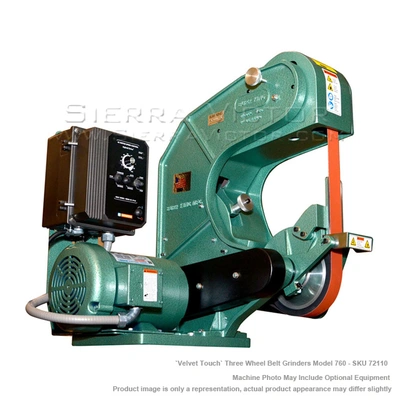

<li>Available in easily adjusted variable speed and aggressive single speed.<br>
</li>
<li>Model 760 can be pedestal or bench mounted and uses a standard 60" belt up to 2" wide. </li>
<li>Rotating parts covered eliminating parts entanglement, greater operator safety</li>
<li>Contact wheel, platen and workrest support grinding</li>
<li>New urethane covered idler wheels for longer life</li>
<li>New idler wheels are electrostatically conductive</li>
<li>Improved dust extraction</li>
<li>Slack belt grinding</li>
<li>New and improved door latching system</li>
<li>Adjustable belt tension</li>

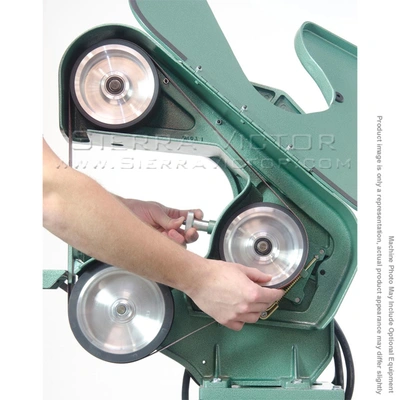

<li>Positive belt tracking/patented design</li>
<li>Quick belt change</li>
<li>Large throat clearance for enhanced work point access</li>
<li>Precision machined cast aluminum frame</li>
<li>Accepts internal grinding attatchments</li>
<li>Accepts nylon, buffing, wire, fiber wheels</li>
<li>Compact footprint friendly to "cell" manufacturing</li>
<li>OSHA compliant, enclosed guarding.</li>

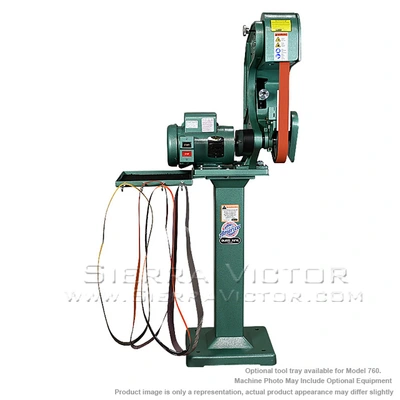

<li>Shown with optional Variable Speed. Pedestal is optional, not included.<br>
</li>
<li>*Includes magnetic starter (NEMA 12) and controls without power cord.</li>
<li><strong>CAUTION: Use proper eye, face, hand and body protection when using this or any other grinder.</strong></li>
