<table cellspacing="0" cellpadding="0" border="1" width="522">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Capacity
</div>
</td>
<td width="259" class="TableText">
<div align="center">1200 CFM
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Use with
</div>
</td>
<td class="TableText">
<div align="center">16 inch – 26 inch abrasive saws, <br>
8 inch – 14 inch belt sanders,<br>
the DS20 20 in. disc sander
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">3 HP, 3 PH, 220V or 440V,<br>
please specify voltage at time of order.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Amp draws
</div>
</td>
<td class="TableText">
<div align="center">3PH 230 FLA 7.2 amps and 460 FLA 3.6 amps
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Vacuum dimensions
</div>
</td>
<td class="TableText">
<div align="center">24 x 24 x 40 High in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Dimensions
</div>
</td>
<td class="TableText">
<div align="center">L 39 x W 39 x H 64 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">300 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

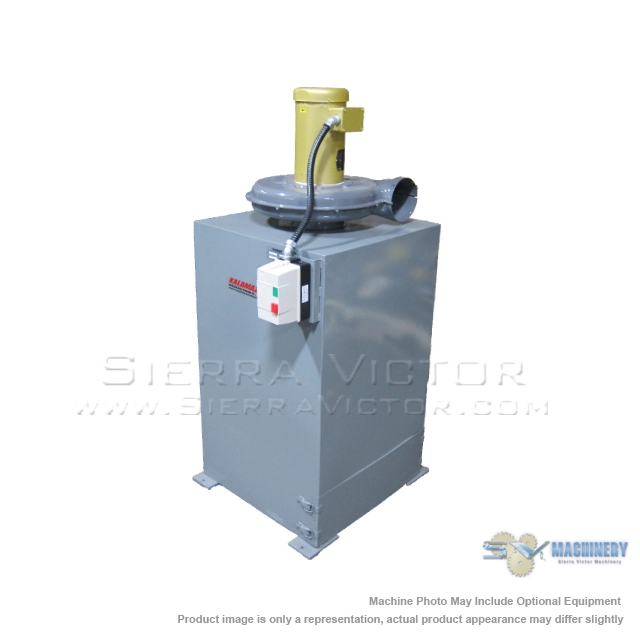

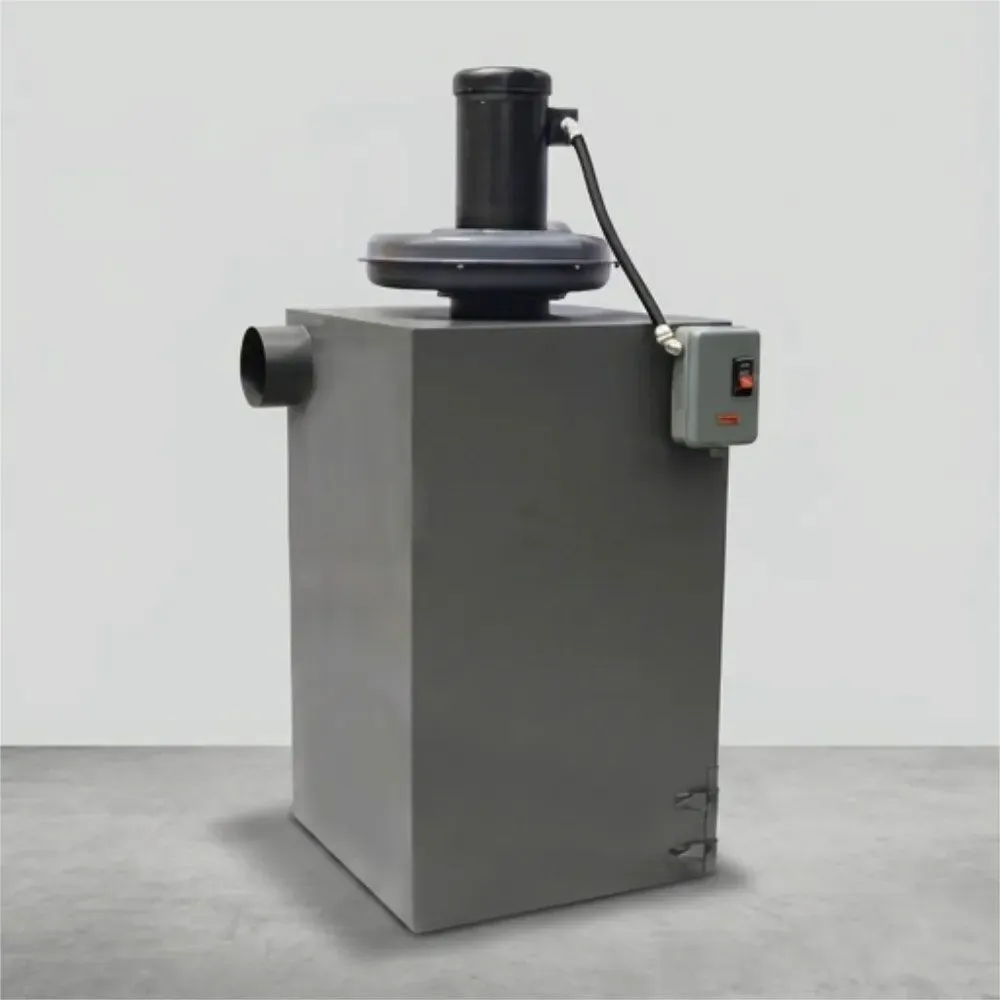

<li> The DCV-1 industrial vacuum is built with a powerful 3HP 3PH, 220V or 440V (specify voltage at time of order) TEFC motor and comes with a 6" port and replaceable dust bag and vacuum base clean out. </li>
<li> The DCV-1 is designed to collect various materials such as ferrous metals and non-ferrous metals.</li>
<li>Use with 16 inch – 26 inch abrasive saws and 8 inch – 14 inch belt sanders and the DS20 20" disc sander. </li>
<li>Dust collector for dry heavy duty applications.</li>
<li>Magnetic on/off switch.</li>
<li>Capacity 1200 CFM</li>
<li>Dust bag furnished with unit.</li>
<li>3 HP, 3 PH. 220V or 440V, please specify voltage at time of order.</li>
<li>DCV-1 dust collector has applications in the following industries tha: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Machine shops, Automotive, Metal Foundries, fabrication shops, work working shops and well as many other Manufacturing and Fabrication environments. </li>
</ul>
<p><strong>OPTIONAL ITEMS - CALL FOR PRICE:</strong></p>
<ul>
<li>142-9901: DUST BAG (for DCV-1 Vacuum)</li>
<li>Optional: Dust port for the K20SSF, K16-16 abrasive saws, S8, S10, S14 belt sanders and the DS20 disc sander.</li>
<li>Also compatible with S8D, S8HD, S10D, S10HD, S14D and S14HD (call for pricing!).</li>
<li>Also available in 50HZ and 575V</li>
</ul>
