- Our 20 Ton Shop Press may be small but it's no lightweight. Smooth and precise, heavy-duty and versatile, the unique open side design allows for material to pass through. Power it up with an Edwards Ironworker with factory installed Hydraulic Accessory Pack or an Edwards Porta Power 5HP, 2750 psi portable power unit.
- Check out our 12" Press Brake Tooling, bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back Gauge.
- Heavy-Duty 3/8" Steel Construction
- Cylinder with 2" Ram and 6-1/4" Stroke
- Rolling Cylinder for Maximum Versatility
- Working Area of 10-1/2" x 20"
- Easy-to-Use Hand/Jog Controls
- Quick Disconnect Hoses
- Hydraulic-Assist Table Height Adjustment
- MADE IN THE USA
- Manufacturer
- Specifications
- Options/Accessories
- Press Brake Tooling Set
- Press Brake Back Gauge

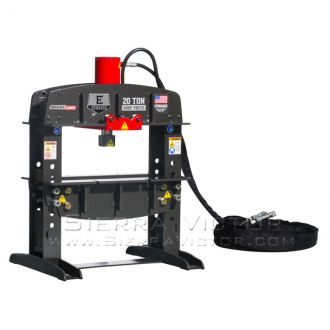

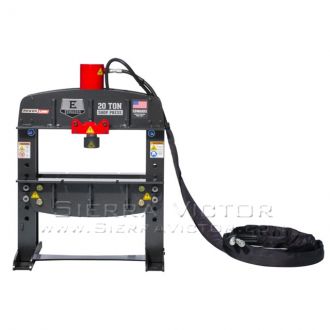

EDWARDS 20 Ton Shop Press ED9-HAT2000
ITEM: 20 Ton Shop Press
MANUFACTURER: EDWARDS
MODEL: ED9-HAT2000
Manufacturer:
Edwards Ironworkers
Machine Type
Machine Category:
Presses
Machine Sub-Category:
Shop/H-Frame
Power Source:
Hydraulic
Metalworking
Pressure:
20+ Tons
|
GENERAL SPECIFICATIONS
|
Rating
|
20 Tons
|
|
Cylinder
|
2" Ram
|
|
|
Stroke
|
6-1/4”
|
|
|
EDWARDS
PORTA POWER** |
Electric Motor Standard
|
5 HP 3~ 208V or 230V, |
|
Electric Motor Options
|
5 HP 3~ 460V, 1725 RPM 7 A
|
|
|
5 HP 3~ 575V, 1725 RPM 6 A
|
||
|
5 HP 1~ 208V or 230V, |
||
|
Hydraulic Pump
|
3-1/2 gpm—1 stage
|
|
|
Valve Pressure
|
2,750 psi max.
|
|
|
Reservoir
|
7 Gallons
|
|
|
DIMENSIONS
|
Height
|
30"
|
|
Width
|
30"
|
|
|
Depth
|
43" |
|
|
Shipping Weight
|
400 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
| OPTIONAL ATTACHMENTS - PORTA POWER |
|
PART #
|
ITEM
|
|
ED9-HAT001
|
Portable Power Unit 1 Phase, 230 Volt -CLICK HERE
|
|
ED9-HAT002
|
Portable Power Unit 3 Phase, 230 Volt - CLICK HERE
|
|
ED9-HAT004
|
Portable Power Unit 3 Phase, 460 Volt - CLICK HERE
|
| OPTIONAL ATTACHMENTS - PRESS BRAKE TOOLING |
|
PART #
|
ITEM
|
|
ED9-PRB12
|
Press Brake Tooling 12" Press Brake - CLICK HERE
|
| OPTIONAL ATTACHMENTS - ACCESSORY MACHINES |
|
PART #
|
ITEM
|
|
ED9-HAT1000
|
10 Ton Tube/Pipe Bender- CLICK HERE
|
|
ED9-HAT5000
|
Radius Roller - CLICK HERE
|
