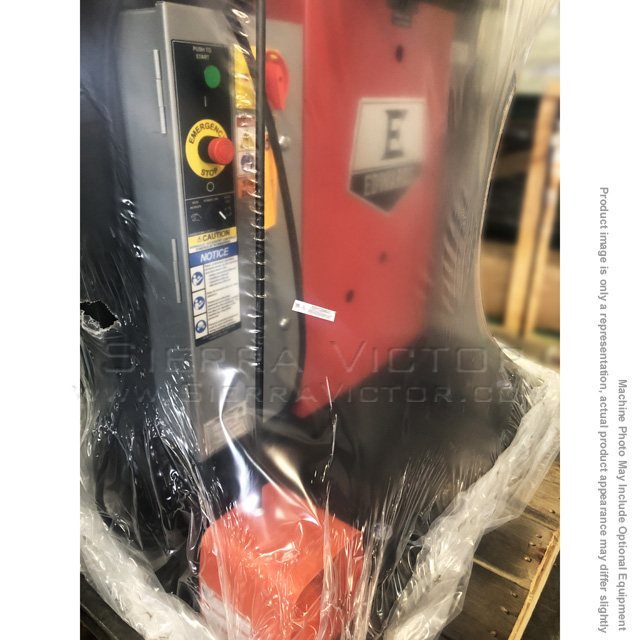

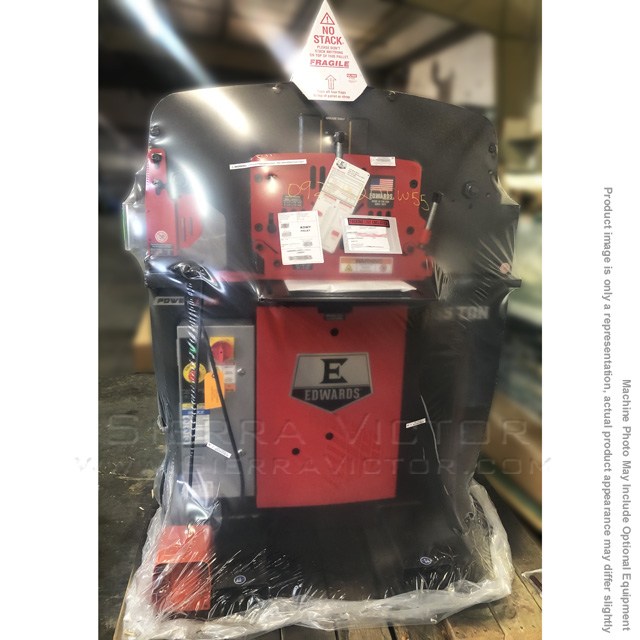

- The Edwards 55 Ton Ironworker
is well suited to fit the needs of any fab shop, large or small.
Standard features include a Punch Assembly with Pedestal Die Table, Flat
Bar Shear, Angle Shear and a universal open tooling station designed to
accept optional Tooling Accessories.
- The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
- Four Available Workstations
- Universal Open Tooling Station
- Electric Stroke Control
- ANSI B11.5-1988R(02) Compliant
- ETL/UL Approved Controls
- MADE IN THE USA
- Manufacturer
- Specifications
- Options/Accessories
- Increase you Punching Efficiency and Accuracy
- AC2200 General Productivity Pack for 40TC - 100 IW
- AC2250 General Productivity Pack for 100T DLX & 120T IW
- FLEXIBILITY
- Contains Punches and Dies to produce the following size round holes: 3/16". 5/16", 7/16", 1/2", 9/16", 5/8", 11/16", 13/16", 15/16", and 1-1/16"
- The Back Gauge utilizes a positive stop attachment that is fitted to the back of the Ironworker ensuing accurate shearing out to 48"
- PRODUCTIVITY
- Punch and Die Storage Tray easily mounts to either side of the output shoot
- The 48" Back Gauge speeds up production on repeatable cuts by providing an adjustable stop for the flat bar shear and angle shear.
- The Fabricator’s protractor increase accuracy on the punch and flat bar shear workstations by guiding your work piece and is gauged at 15° increments through 180° featuring a straight edge and reversible design
- A Gauging table kit includes adjustable fences and handles quickly and easily guide your material for perfect repeatable actions
- SAFETY
- Punch diameter must meet or exceed the thickness of your material
- Super bright LED light with M12 connections has a powerful magnetic base allowing users to attach the light to any Ironworker surface and move as needed.
- PERFORMANCE
- Made of durable steel for long life
- Long lasting averages between 3,000 and 5,000 impacts
- Video

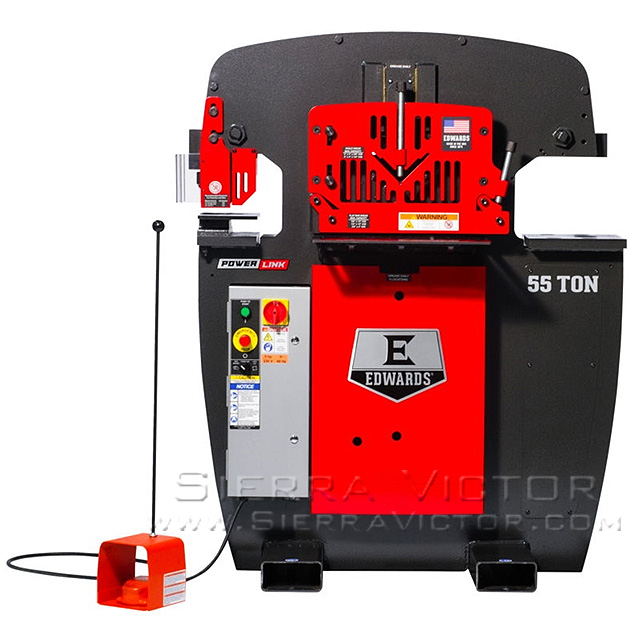

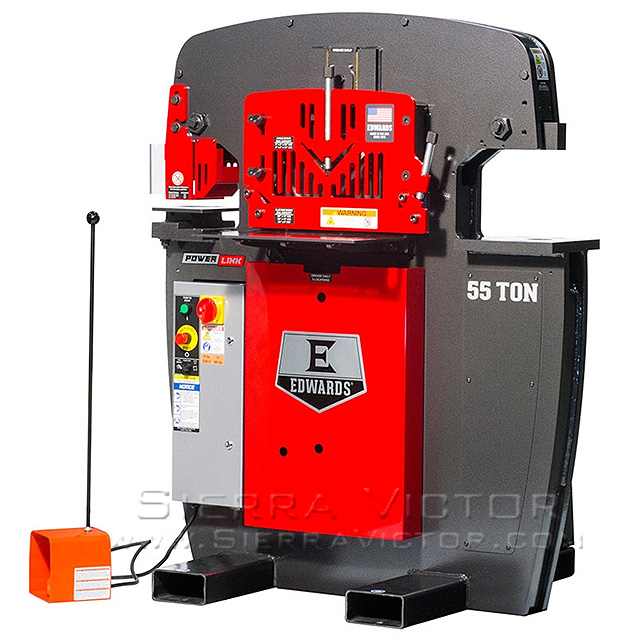

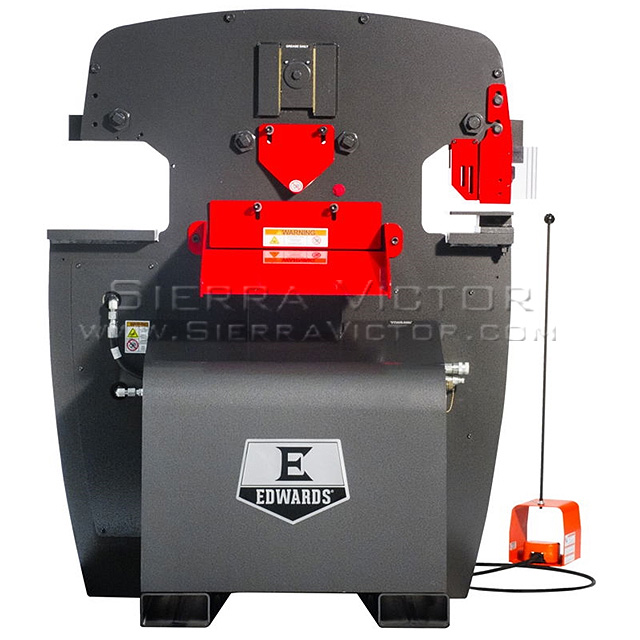

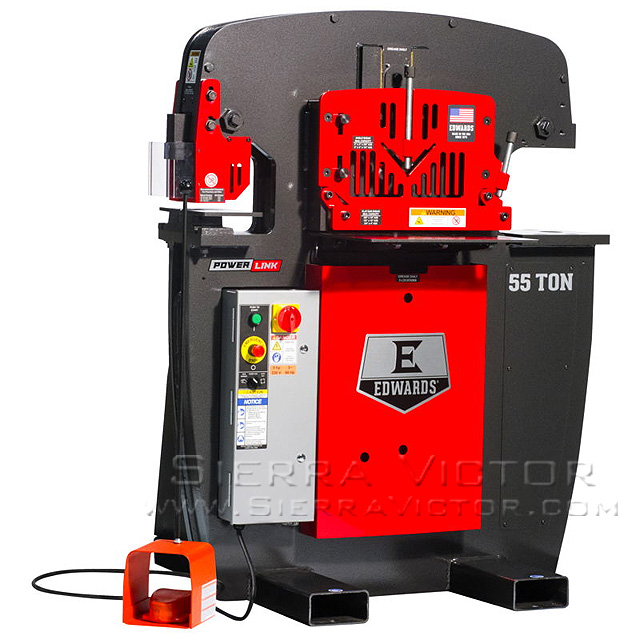

EDWARDS 55 Ton Ironworker w/PowerLink ED9-IW55
ITEM: 55 Ton Hydraulic Ironworker w/PowerLink
MANUFACTURER: EDWARDS
MODEL: ED9-IW55
Manufacturer:
Edwards Ironworkers
Machine Type
Machine Category:
Ironworkers
Power Source:
Hydraulic
Metalworking
Pressure:
50+ Tons
|
PUNCH
|
Maximum Capacity (in.)
|
1-1/16" Dia. in 5/8" A36
(65,000 PSI Tensile) |
|
|
Rating
|
55 Tons
|
||
|
Throat Depth (in.)
|
7-1/2
|
||
|
Open Height (in.)
|
8-1/8
|
||
|
Shut Height (in.)
|
6-7/8
|
||
|
Stroke (in.)
|
1-1/4
|
||
|
Work Height (in.)
|
36-9/16
|
||
|
FLAT BAR SHEAR
|
Max. Capacity (in.)
|
3/8 x 14
1/2 x 12 3/4 x 4 |
|
|
Max. Round Capacity (in.)
|
7/8
|
||
|
Max. Square Capacity (in.)
|
7/8
|
||
|
Work Height (in.)
|
34-1/2
|
||
|
ANGLE SHEAR
|
Max. Size (in.)
|
4 x 4 x 1/4 or 3 x 3 x 3/8
|
|
|
Work Height (in.)
|
39-7/8
|
||
|
OPTIONAL
COPER NOTCHER |
Max. Capacity (in.)
|
2-1/2" x 4" x 5/16"
|
|
|
Work Height (in.)
|
39-1/2
|
||
|
OPEN STATION SPECIFICATIONS
|
Troat Depth (in.)
|
11-3/16
|
|
|
Open Height (in.)
|
8-1/8
|
||
|
Shut Height (in.)
|
6-7/8
|
||
|
Stroke (in.)
|
1-1/4
|
||
|
Work Height (in.)
|
34-1/2
|
||
|
DIMENSIONS
|
Height (in.)
|
55-1/4
|
|
|
Width (in.)
|
44-3/8
|
||
|
Depth (in.)
|
36-1/8
|
||
|
Shipping Weight
|
2,480 lbs.
|
||
|
GENERAL SPECIFICATIONS
|
Electric Motor
|
Standard
|
5 HP, 3 Ph, 208V or 230V, 1725 RPM 14A
|
|
Optional
|
5 HP 3~ 460V, 1725 RPM 7 A
5 HP 3~ 575V, 1725 RPM 6 A 5 HP 1~ 230V, 1725 RPM 23 A |
||
|
Hydraulic Pump Size (GPM)
|
3-1/2 - single stage
|
||
|
Valve Pressure (PSI)
|
2,500
|
||
|
Reservoir (gallons)
|
7
|
||
|
Cylinder (in.)
|
2-1/2 ram
|
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
General Productivity Pack: CLICK HERE
|
PART #
|
ITEM
|
|
ED9-HAT001
|
Portable Power Unit 1 Phase, 230 Volt - CLICK HERE
|
|
ED9-HAT002
|
Portable Power Unit 3 Phase, 230 Volt - CLICK HERE
|
|
ED9-HAT003
|
Portable Power Unit 3 Phase, 380 Volt 50HZ - CLICK HERE
|
|
ED9-HAT004
|
Portable Power Unit 3 Phase, 460 Volt - CLICK HERE
|
|
ED9-HAT005
|
Portable Power Unit 3 Phase, 575 Volt - CLICK HERE
|
|
ED9-HAT006
|
Portable Power Unit 3 Phase, 208 Volt - CLICK HERE
|
| OPTIONAL ATTACHMENTS - PRESS BRAKE TOOLING |
|
PART #
|
ITEM
|
|
ED9-PRB12
|
Press Brake Tooling 12" Press Brake - CLICK HERE
|
| OPTIONAL ATTACHMENTS - ACCESSORY MACHINES |
PART #
| ITEM
|
ED9-HAT1000
| 10 Ton Tube/Pipe Bender- CLICK HERE |
ED9-HAT5000
| Radius Roller - CLICK HERE |
OPTIONAL ATTACHMENTS AND ACCESSORIES AVAILABLE - CONTACT FOR DETAILS

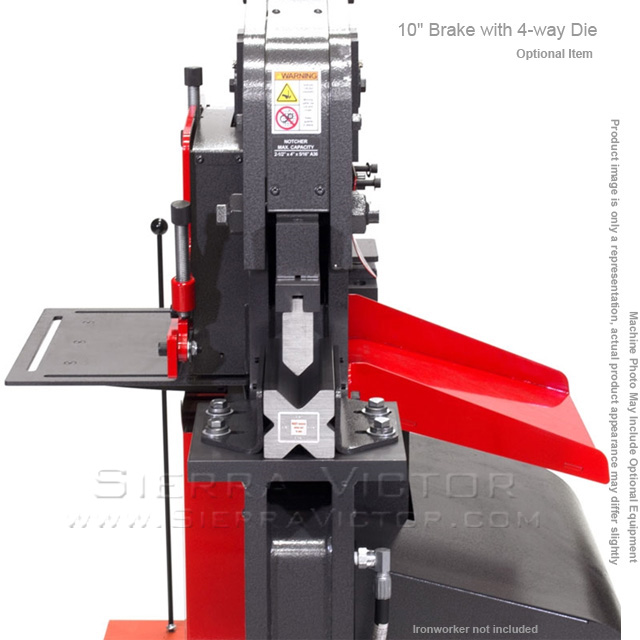

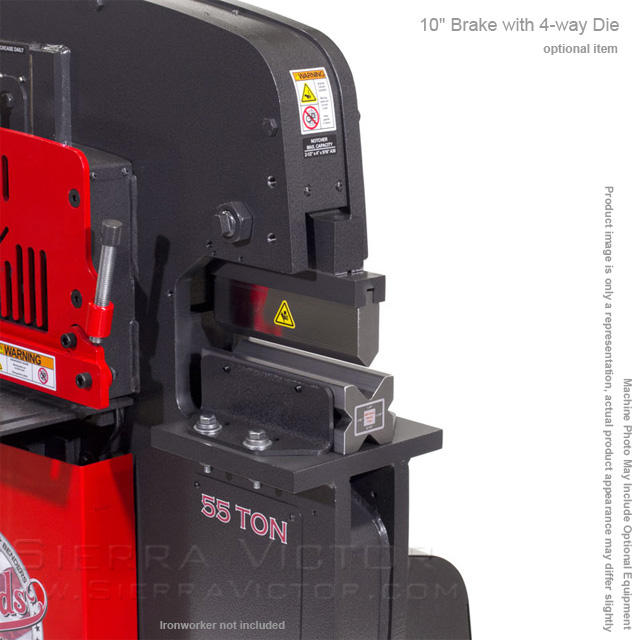

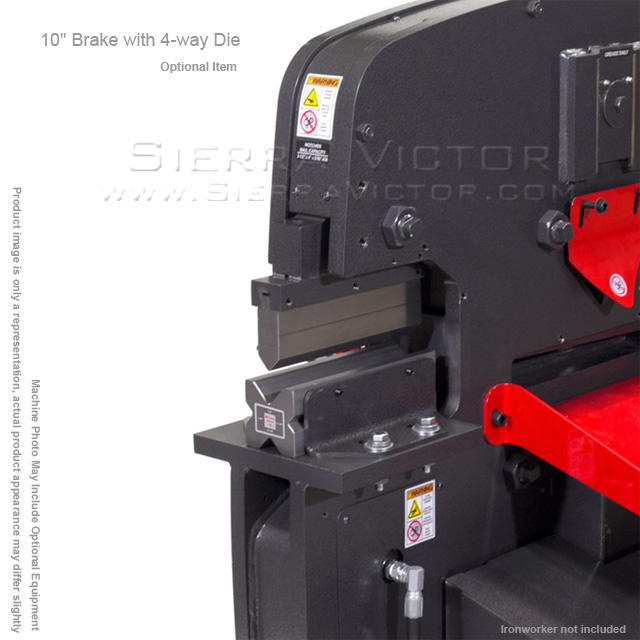

OPTIONAL 10" BRAKE TOOLING
