- Description
- Floor model variable speed drill press with adjustable knob on the frequency inverter to adjust the speed while drilling. Use the LED indicator for speed readout. There is a forward and reverse selector switch for tapping applications. All floor models feature a locking handle hub for repeatable depth, CE safety electrical package, a large diameter sturdy spindle, and a massive cast head.
- A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes.
- Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation.
- Machined table and base surfaces with t-slots for mounting and fixturing.
- Forward and reverse selector switch for tapping applications.
- Electrical package features on/off switch, thermal overload, and interlock safety switch for belt cover.
- Massive cast head, machined column, and sturdy cast base reduces vibration.
- Latest frequency inverter technology for easy speed changes and concentrated torque.
- Handle has 3 spokes with spring return for precise operator control and ergonomic operation.
- Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- 5/8” Keyed chuck
- Drift for bit removal
- Plexiglas chip and chuck guard
- Manufacturer
- Specifications
- Custom Freight

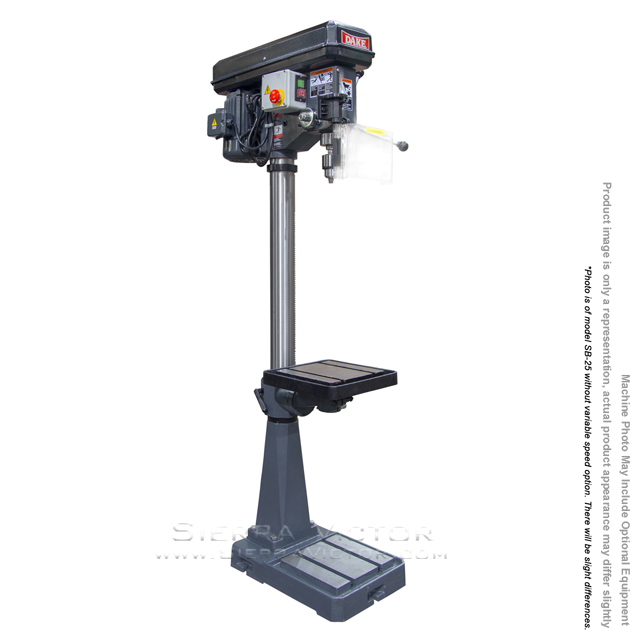

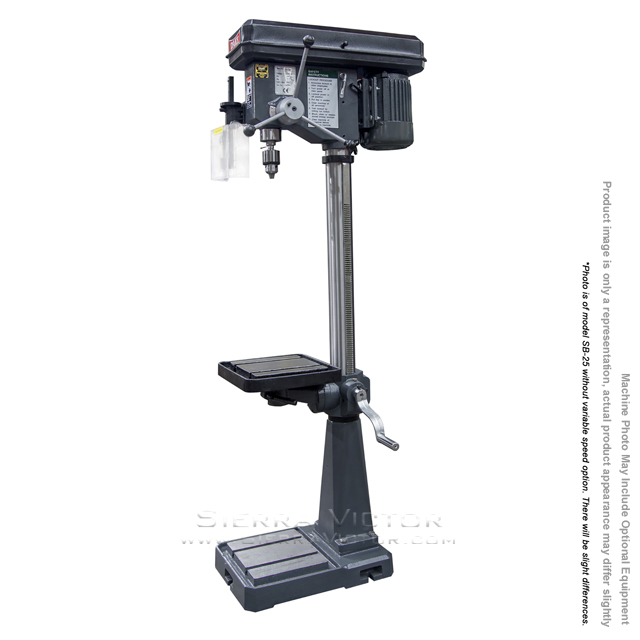

DAKE 1" Variable Speed Floor Drill Press SB-25V
STANDARD EQUIPMENT:
ITEM: Variable Speed Floor Drill Press
MANUFACTURER: DAKE
MODEL: SB-25V
PART# 977600V
Manufacturer:
Dake
Machine Type
Machine Category:
Drill Presses
Control:
Variable Speed
MODEL
|
SB-25V
|
STOCK#
|
977600V
|
Drill Capacity
|
1 in.
|
Horsepower
|
1.5 HP
|
Motor
|
110V, Single Phase
|
Spindle Taper
|
MT3
|
Working Diameter
|
18 in.
|
Number of speed
|
Variable Speeds
|
Spindle speed range
|
46-3,550 rpm
|
Electrics
|
120V 1PH
|
Spindle travel
|
5 in.
|
Column diameter
|
3-5/8 in.
|
Table depth
|
13-3/4 in.
|
Table width
|
13-3/4 in.
|
Base depth
|
23-5/8 in.
|
Base width
|
15 in.
|
Spindle to table
|
28-3/8 in.
|
Spindle to base
|
50 in.
|
Overall height
|
71 in.
|
Weight
|
397 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
