- Description
- Variable speed floor model drill press that automatically advances to preset depth, bottoms out, and returns automatically. Comes with forward and reverse selector switch for tapping applications, and a locking handle hub for repeatable depth. CE safety electrical package, a large diameter sturdy spindle, and a massive cast head make this one touch drill press.
- A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes.
- Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation.
- Machined table and base surfaces with t-slots for mounting and fixturing.
- Forward and reverse selector switch for tapping applications.
- Electrical package features on/off switch, emergency stop button, and interlock safety switch for belt cover.
- Massive cast head, machined column, and sturdy cast base reduces vibration.
- Latest frequency inverter technology for easy speed changes and concentrated torque.
- Handle has 3 spokes with spring return for precise operator control and ergonomic operation.
- Power down feed
- Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- 5/8” Keyed chuck
- Drift for bit removal
- Plexiglas chip and chuck guard
- Manufacturer
- Specifications
- Custom Freight

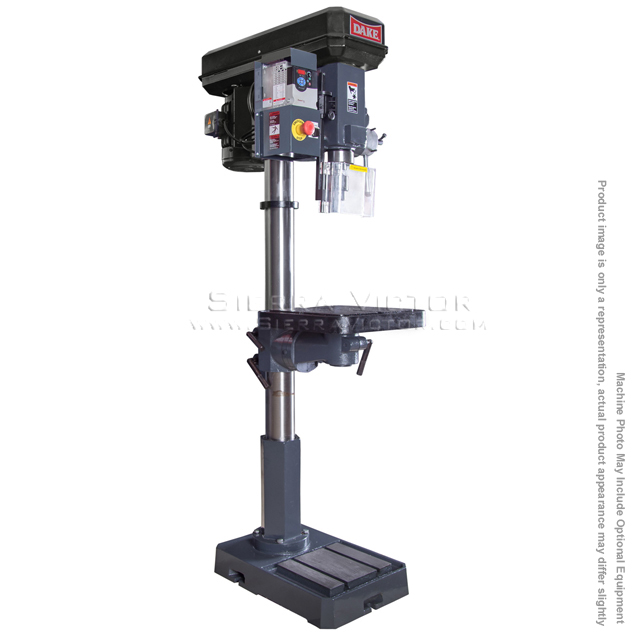

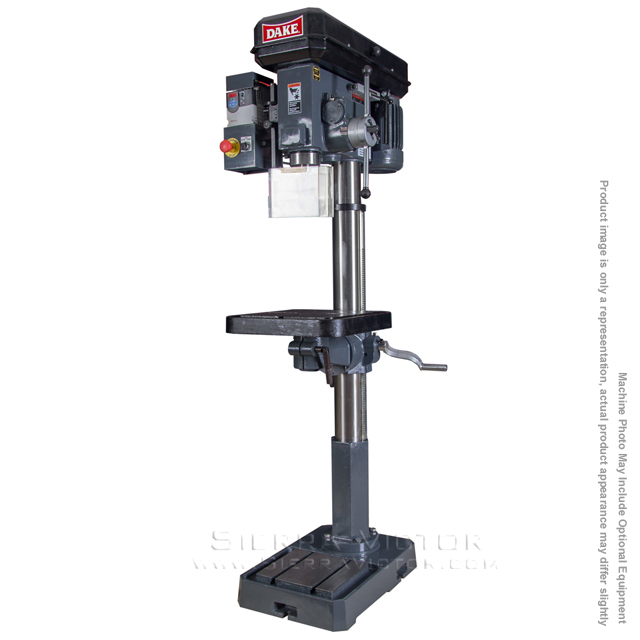

DAKE 1" Variable Speed Floor Drill Press SB-250V
STANDARD EQUIPMENT:
ITEM: 1 inch Variable Speed Floor Drill Press
MANUFACTURER: DAKE
MODEL: SB-250V
PART# 977701V
Manufacturer:
Dake
Machine Type
Machine Category:
Drill Presses
Control:
Variable Speed
MODEL |
SB-250V |
STOCK# |
977701V |
Drill Capacity |
1 in. |
Horsepower |
1.5 |
Motor |
110V, Single Phase |
Spindle Taper |
MT3 |
Working Diameter |
18 in. |
Number of Speed |
Variable Speed |
Spindle Speed Range |
68-1380 RPM |
Electrics |
120V 1PH |
Spindle Travel |
5 in. |
Column Diameter |
3-5/8 in. |
Table Depth |
15-3/4 in. |
Table Width |
15-3/4 in. |
Base Depth |
23-5/8 in. |
Base Width |
15 in. |
Spindle to Table |
28-3/8 in. |
Spindle to Base |
49-1/4 in. |
Overall Height |
71 in. |
Weight |
483 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
