- Description
- One Set of Flanging Rolls Included
- One Set of Cutting Blades Included
- Two-Rotation Speed Part Carrier 0,35-0,68 M/Sec.
- Top and Bottom Flanging Rolls Powered in Rotation with Independent Hydraulic Motors Coupled to Planetary Speed Reducers (Epicyclic Type) 0,35-0,68 M/Min Speed
- Manufacturer
- Specifications
- Options/Accessories
- Both Flat and Crowned Bottoms Flanging
- Hydraulically Adjustable Bottom Height for Both Flat and Crowned Dish Flanging
- Both Cutting and Flanging Operation on the Same Head
- Custom Freight

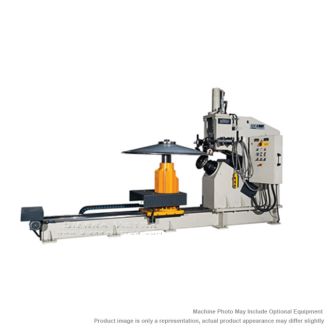

COLE-TUVE 5/16 in. Combo Shear Flanger SDK-8
ITEM: 5/16" Combo Shear Flanger
MANUFACTURER: COLE-TUVE
MODEL: SDK-8
Manufacturer:
Cole-Tuve
Machine Type
Machine Category:
Combo Shear Flanger
Metalworking
Mild Steel Capacity:
5/16"
Max. Plate Diameter |
177 in. |
|
Min. Plate Diameter |
2-3/8 in. |
|
Max. Flanging Length |
5.91" @ Radius of 100 7.48" @ Radius of 25 |
|
Max. Flanging Radius |
3.94 n. |
|
Capacity-Mild Steel |
5/16 in. |
|
Capacity-Stainless Steel |
3/16 in. |
|
Motor Power-HP |
14.5 |
|
Machine Dimensions |
182 x 50 x 107 in. |
|
Weight-Lbs. |
9,680 |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE
