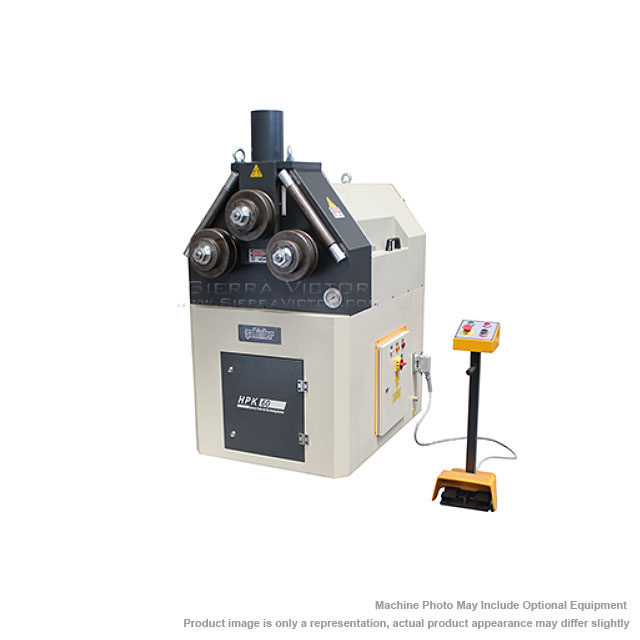

COLE-TUVE 3 x 3 x 1/4 in. Hydraulic Pyramid Angle, Pipe & Shape Bending Roll HPK-60
ITEM: 3" x 3" x 1/4" Hydraulic Pyramid Angle, Pipe & Shape Bending Roll
MANUFACTURER: COLE-TUVE
MODEL: HPK-60
Manufacturer:
Cole-Tuve
Machine Type
Machine Category:
Benders - Angle Roll
Metalworking
Bending Capacity:
3"
Angle iron, leg-out |
3" x 3" x 1/4" ø40" |
||
Angle iron, leg-in** |
3" x 3" x 1/4" ø48" |
||
Flat bar, Easy Way |
4-3/4" x 1" ø24" |
||
Flat bar, Hard Way |
3-1/8" x 5/8" ø48" |
||
"T" iron, leg out |
3-1/8" x 3/8" ø40" |
||
"T" iron, leg in |
3-1/8" x 3/8" ø48" |
||
Square bar |
2" ø32" |
||
Round Bar (SP) |
2" ø32" |
||
Channel iron, leg out |
4" ø32" |
||
Channel iron, leg in** |
4" ø48" |
||
Pipe |
3" Sch. 40 ø63" |
||
Round Tubing (SP) |
4" x 14 ga. ø63" |
||
Square Tubing** |
2-3/4" x 2-3/4" x 1/8" ø63" |
||
Rectangular Tubing** |
3-1/8" x 1-1/2" x 1/8" ø56" |
||
Shaft Diameter |
2.36 in. |
||
Dia. of Rolls, Upper/Lower |
8.46 |
||
Driven Rolls |
3 |
||
Rolling Speed, FPM |
13 |
||
Rolls Adjustment |
Hydraulic |
||
Working Plane |
Horizontal/Vertical |
||
Motor HP |
2 + 1/2 |
||
Approx. Weight - lbs. |
2,090 |
||
Approx Overall Size |
40 x 56 x 65 in. |
||
The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE
