- Description
- All Three Rolls Powered by Hydro-Motors and Planetary Gearboxes
- Rolls are Hardened
- Roll Shafts are Special Steel, Hardened and Ground
- Standard Rolls Handle Many Shapes
- 3-Axis Hydraulic Leg-In Guide Rolls
- Two Rolling Speeds
- Two-Electronic Digital Readouts (LED)
- Horizontal and Vertical Working Positions
- Mobile Control Console with Push Button Controls and Digital Readouts
- Manufacturer
- Specifications
- Options/Accessories
- Pipe/Tube/Shape Bending Rolls
- Beam-On-Edge Bending Device
- NC Control
- Custom Freight

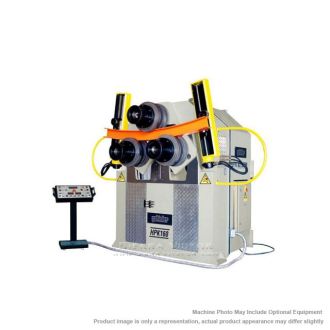

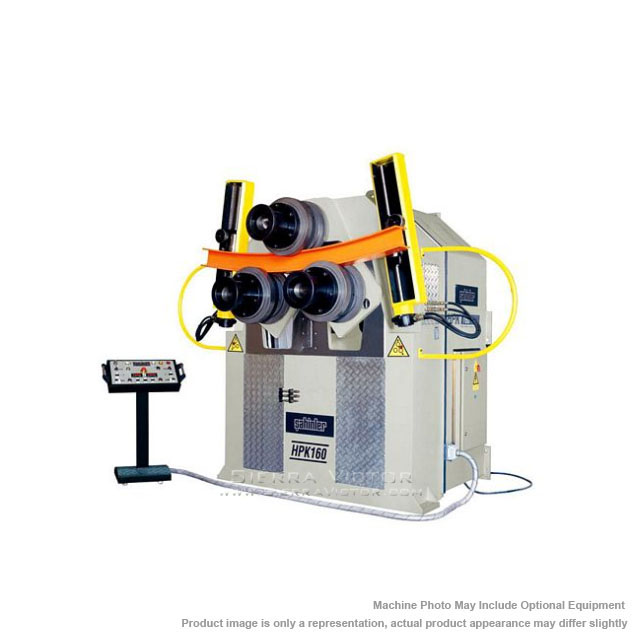

COLE-TUVE 6" x 6" x 3/4" Hydraulic Pyramid Angle, Pipe & Shape Bending Roll HPK-160
ITEM: 6" x 6" x 3/4" Hydraulic Pyramid Angle, Pipe & Shape Bending Roll
MANUFACTURER: COLE-TUVE
MODEL: HPK-160
Manufacturer:
Cole-Tuve
Machine Type
Machine Category:
Benders - Angle Roll
Power Source:
Hydraulic
Metalworking

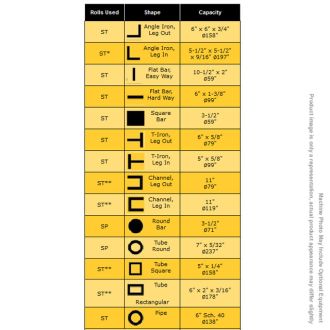

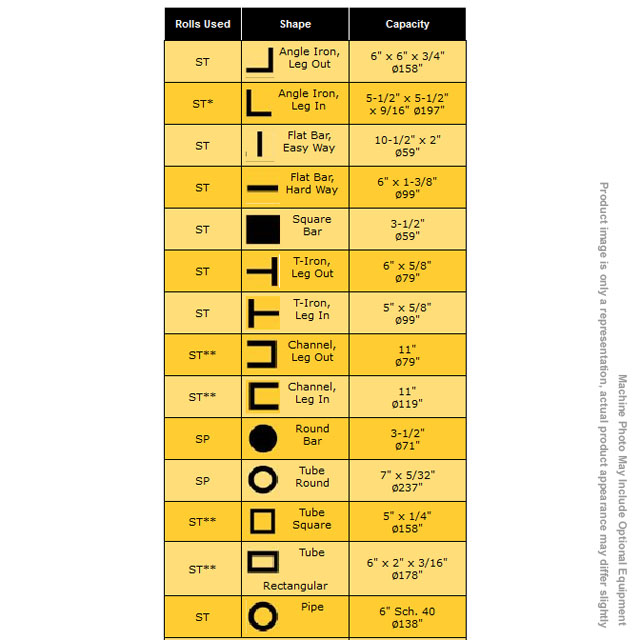

Bending Capacity:
6"
|
Angle iron, leg-out
|
6" x 6" x 3/4"
ø158" |
||
|
Angle iron, leg-in**
|
5-1/2" x 5-1/2" x 9/16"
ø197" |
||
|
Flat bar, Easy Way
|
10-1/2" x 2"
ø59" |
||
|
Flat bar, Hard Way
|
6" x 1-3/8"
ø99" |
||
|
"T" iron, leg out
|
6" x 5/8"
ø79" |
||
|
"T" iron, leg in
|
5" x 5/8"
ø99" |
||
|
Square bar
|
3-1/2"
ø59" |
||
|
Round Bar (SP)
|
3-1/2"
ø71" |
||
|
Channel iron, leg out
|
11"
ø79" |
||
|
Channel iron, leg in**
|
11"
ø119" |
||
|
Pipe
|
6" Sch. 40
ø138" |
||
|
Round Tubing (SP)
|
7" x 5/32"
ø237" |
||
|
Square Tubing**
|
5" x 1/4"
ø158" |
||
|
Rectangular Tubing**
|
6" x 2" x 3/16"
ø178" |
||
|
Shaft Diameter
|
6.3 in.
|
||
|
Dia. of Rolls, Upper/Lower
|
19.69 in.
|
||
|
Driven Rolls
|
3
|
||
|
Rolling Speed, FPM
|
10 & 19-1/2
|
||
|
Rolls Adjustment
|
Hydraulic
|
||
|
Working Plane
|
Horizontal/Vertical
|
||
|
Motor HP
|
29
|
||
|
Approx. Weight - lbs.
|
23,540
|
||
|
Approx Overall Size
|
99 x 93 x 103 in.
|
||
The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
