- Description
- MADE IN USA
- Vibratory Chambers that deliver quiet, high performance Deburring, Polishing, Descaling and surface conditioning
- Optional process timers may be added to the M25, M45, and M85. These timers permit precise process timing control to manage critical finishes and economize valuable shop time. Process timers include high quality magnetic starter contactors.
- Capacity 2.5, 4.5 and 8.5 cubic feet
- Ultra quiet
- High energy, fast process results
- Patented drive and isolation
- Portable
- Integrated, metered, compound delivery system
- Flow-throgh design
- Accepts Filter PAK 4001
- Replaceable drain
- NEMA, UL, CSA, Listed electricals
- Integrated process timer and/or magnetic starter option
- Amplitude fully adjustable
- Bronze caged, sealed long life bearings
- Rugged welded steel construction
- Heavy 85 duro urethane liner 5/8" thick
- Integrated discharge chute
- Compact footprint friendly to "cell" manufacturing
- OSHA complaint, enclosed guarding
- All Vibra King chambers accept one to four dividers
- Any Burr King tub or bowl can be used wet or dry
- *Includes magnetic starter (NEMA 12) and controls without power cord.
- ** This may vary substantially according to part shapes, material, process times, etc.
- NOTE: ALWAYS WEAR PROTECTIVE EYE, FACE, ARM, LEG AND BODY GEAR WHEN USING ANY GRINDER, POLISHER, BUFFER OR OTHER ROTATING MACHINERY.
- Improved replaceable drains (Models 25, 45, 85):
- Quick to change
- Minimizes drain clogging
- Easy to reach
- Extends tub life
- Economical
- Standard on all VibraKING tubs
- Manufacturer
- Specifications
- Custom Freight
- Video

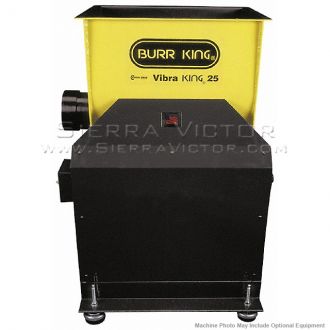

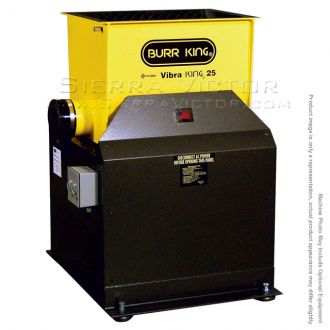

BURR KING M25 2.5 cu. ft.VibraKING Vibratory Chamber - MADE IN USA!
STANDARD EQUIPMENT:
ITEM: 2.5 cu. ft. VibraKING Vibratory Chamber
MANUFACTURER: BURR KING
MODEL: M25
Manufacturer:
Burr King
Machine Type
Machine Category:
Vibratory Tanks
| SPECIFICATIONS - VibraKING with Hush Design - GENERAL DATA |
|
MODEL
|
M25
|
|
Length max. (in.)
|
29
|
|
Width max. (in.)
|
33
|
|
Height max. (in.)
|
41
|
|
Total volume cu. ft.
|
2.5
|
|
Working volume cu. ft.
|
2.1
|
|
Tub width, inside (in.)
|
15
|
|
Tub length, inside (in.)
|
20
|
|
Tub depth, inside (in.)
|
16
|
|
Max. part length (in.)
|
19
|
|
Media load (lbs.)
|
150
|
|
Part load (lbs.) *
|
100
|
|
Weight max. lbs. (empty)
|
390
|
|
Horse power, standard
|
0.75 (1PH / 3PH)
|
| SPECIFICATIONS |
SKU # |
MODEL |
Timer |
Ship WT. (lbs.) |
HZ |
HP |
MAG. Starter |
Volt/Phase |
25100 |
25 |
No |
465 |
60 |
3/4 |
No |
120/1 |
25500 |
Yes |
475 |
No |
120/1 |
| SPECIFICATIONS - VibraKING CHAMBERS COMBI PAKS |
SKU #
| MODEL | Filter PAK 4001 | Sound Damping Lid | Timer
| Ship WT. (lbs.)
| HZ
| HP | MAG. Starter | Volt/Phase |
25110 | 25 | Yes | Yes | No | 515 | 60 | 3/4 | No | 120/1 |
25510 | Yes | No | 120/1 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
*Includes magnetic starter (NEMA 12) and controls without power cord.
