- Description
- MADE IN USA
- The M15 offers the same reliability and options as our smaller bowls but with more power and larger capacity. The M15 is unique because it comes complete with stand and timer.
- Flexible:
- Adjustable amplitude
- Ceramic, plastic, burnish, wood and shell capable for wet or dry processing
- Adapts to FilterPAK 4001 & SumpPAK 1000 filtration systems with flow through design
- Dual outlet integrates with timer to adapt accessories
- Timer controlled, 0-6 hours
- Reliable:
- Heavy polymer bowl
- Replaceable drain
- Durable coated metal surfaces
- Labor Reduction:

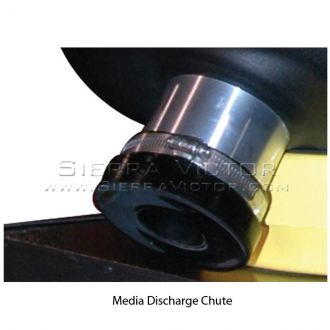

- Quick media discharge chute
- Confidence / Safety:
- UL / CSA listed motors, controls and wiring
- Fully shrouded mechanical section
- American designed and manufactured in Warsaw, MO
- Backed by Burr King's promise of performance and dependability
- Operator / Shop friendly:
- Cell Manufacturing friendly
- Portability of no bolt down operation
- Faster Processing:
- High energy
- The FilterPAK 4001:
- Filter PAK 4001A Same as 4001 plus adapters for M15
- Can be used with vibratory bowls or tubs. Heavy duty Polyethylene construction with single submersible pump and disposable filter bag. 10 gallon capacity.
- Continuous fluid filtration
- Traps and holds sludge and debris in inexpensive, easily disposable filters
- Cleaner compounds results in cleaner parts
- Superior finishes and shorter cycle times with a filtered system
- Significantly reduces shop mess
- Filtration from 5 to 100 micron
- 115 VAC 140 GPH pump
- 10 Gallon plus capacity
- Heavy duty Polyethylene
- Space saving 12" x 14" x 15"
- Dual Chamber
- SumpPAK 1000 comes with a 5 gallon bucket, pump hanger, pump and all tubes to connect filtration system to machine. Can be used with bowls or tubs.
- NOTE: ALWAYS WEAR PROTECTIVE EYE, FACE, ARM, LEG AND BODY GEAR WHEN USING ANY GRINDER, POLISHER, BUFFER OR OTHER ROTATING MACHINERY.
- Manufacturer
- Specifications
- Custom Freight
BURR KING M15 1.3 cu. ft. VibraKING Medium Vibratory Bowl
ITEM: 1.3 cu. ft. VibraKING Medium Vibratory Bowls
MAKE: BURR KING
MODEL: M15
Manufacturer:
Burr King
Machine Type
Machine Category:
Vibratory Bowls
SKU #
|
15110
|
15210
|
Timer / stand
|
Included
|
|
Speed Variable
|
No
|
Yes
|
Volt / Phase
|
120/1
|
|
HZ
|
60
|
50-60
|
HP
|
1/2
|
|
Ship WT. (lbs.)
|
195
|
210
|
GENERAL SPECIFICATIONS
|
||
Height max (in.)
|
40
|
|
Width max (in.)
|
22
|
|
Depth max (in.)
|
23
|
|
Total volume cu. ft.
|
1.3
|
|
Working volume cu. ft.
|
1.0
|
|
Bowl diameter, inside (in.)
|
17.5
|
|
Bowl depth inside (in.)
|
9.5
|
|
Part length max (in.)
|
12
|
|
Part width max (in.)
|
5.5
|
|
Load max (lbs.)
|
150
|
|
Horse power
|
1/2
|
|
RPM
|
1,725
|
|
SPECIFICATIONS - MODEL 15 VibraKING MEDIUM BOWLS COMBI PAKS |
SKU #
| 15120
| 15130
| 15220
| 15230
|
Timer / stand
| Included
| |||
Filter PAK 4001A
| Yes
| No
| Yes
| No
|
Sump PAK 1000
| No
| Yes
| No
| Yes
|
Speed Variable
| No
| No
| Yes
| Yes
|
Volt / Phase
| 120/1
| |||
HZ
| 60
| 50-60
| ||
HP
| 1/2
| |||
Ship Weight (lbs.)
| 215
| 205
| 227
| 220
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
