- Description
- MADE IN USA
- All model 20 disc grinders are available with magnetic starter options. The Model 20VB speed controller includes all control and overload features of a standard magnetic starter in addition to the solid state frequency controller and electronic brake.
- Three versatile versions available in popular 3 Phase, 60 Hertz electronic options
- Model 20: Disc Speed fixed at 1725 RPM
- Model 20B: Fixed speed with a 10 ft. lb. mechanical disc brake
- Model 20VB: Continuously adjustable from 170 to 1725 RPM with an adjustable electronic disc brake.
- Precise enough for pattern makers
- The ideal tool to shape, flat grind, contour metal, wood and plastic
- Rapidly grinds and deburrs castings or fabricated parts
- Up to 9000 SFPM disc speed
- Reversible disc rotationCast iron 3 horse power motors
- Rugged gray, ductile iron and aluminum castings
- Ready for a miter gauge

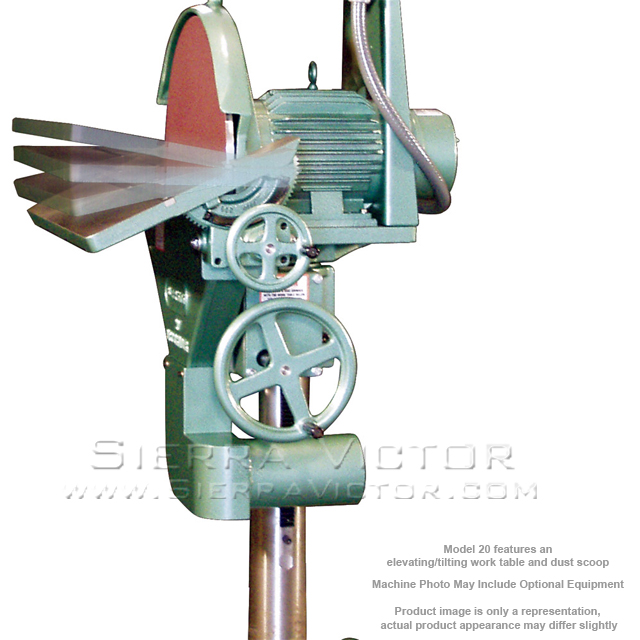

- Elevating & Tilting work table
- Premium gears, bearings and bushings
- Gear driven table lift & tilt
- Tilting disc safety guard
- Disc face run-out less than .005 TIR
- *Includes magnetic starter (NEMA 12) and controls without power cord.
- NOTE: ALWAYS WEAR PROTECTIVE EYE, FACE, ARM, LEG AND BODY GEAR WHEN USING ANY GRINDER, POLISHER, BUFFER OR OTHER ROTATING MACHINERY.
- Manufacturer
- Specifications
- Custom Freight

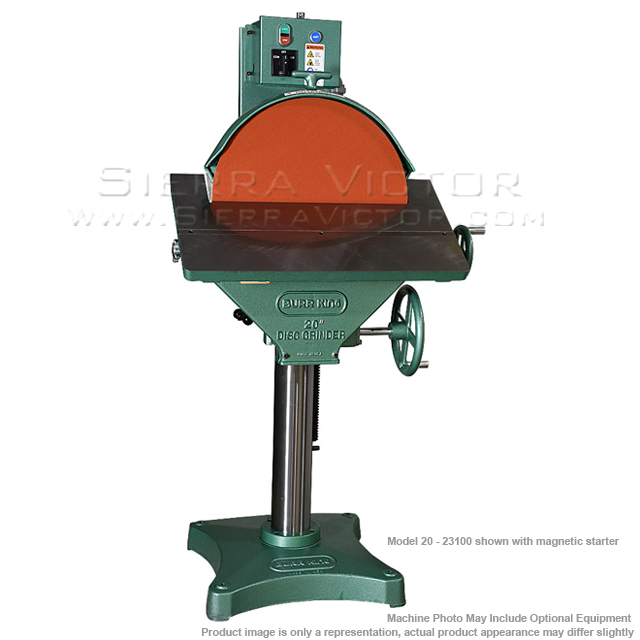

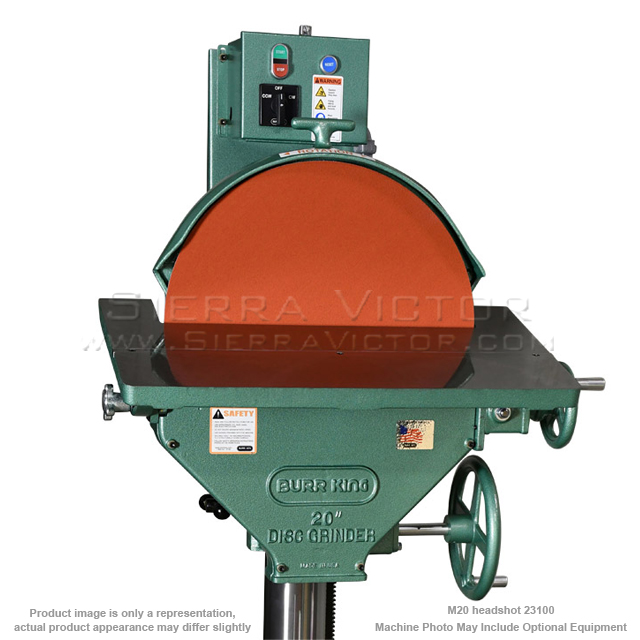

BURR KING 20" Disc Grinder MODEL 20B
ITEM: 20" Disc Grinder
MANUFACTURER: BURR KING
MODEL: 20 / 20B / 20VB
Manufacturer:
Burr King
Grinder/Sander Size:
20"+
Machine Type
Machine Category:
Grinders
Machine Sub-Category:
Disc
SKU |
Ship WT. (lbs.) |
HZ / HP |
Disc RPM |
Variable Disc RPM |
FWD/REV Switch |
Disc Brake |
MAG. Starter |
Volt/Phase |
23100 |
615 |
60 / 3 |
1,725 |
No |
Yes |
Yes |
Yes |
220/3* |
24103 |
645 |
— |
170-1725 |
N/A |
220/3 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
*Includes magnetic starter (NEMA 12) and controls without power cord.
