Prices Valid on In Stock Machines Only
- Description
- All steel forming head
- Hardened and ground shafts
- Case hardening steel forming rolls
- Machine cut gear and needle type roller bearing throughout
- MADE IN TAIWAN
- Manufacturer
- Specifications

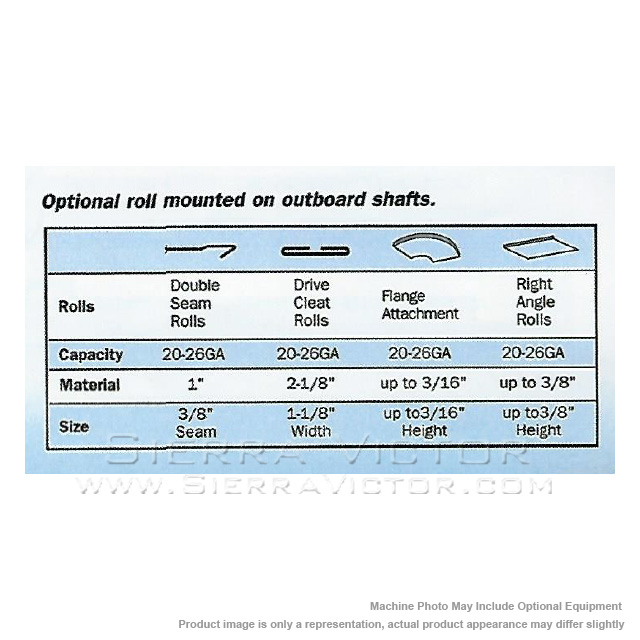

- Options/Accessories
- DSR-20: 20 Ga Double Seam Roll Set

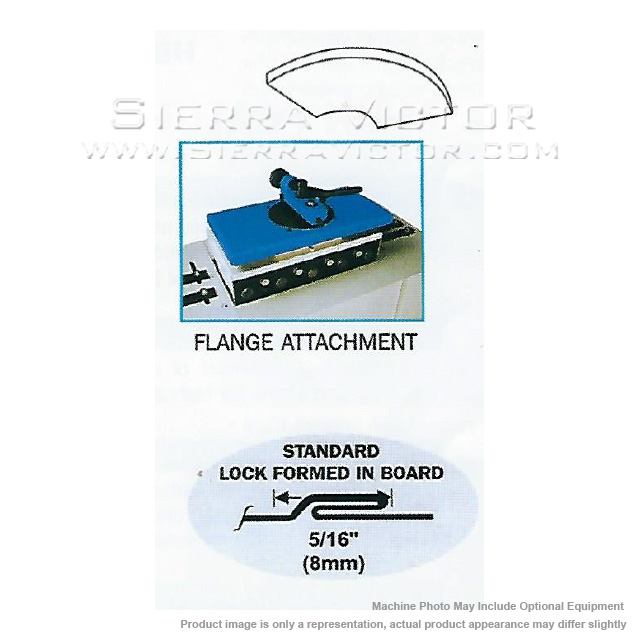

- FA-20: Flange attachment
- RAR-20: Right Angle Roll Set
- DCR-20: Drive Cleat Roll Set
- Custom Freight

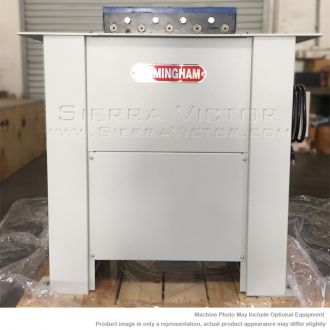

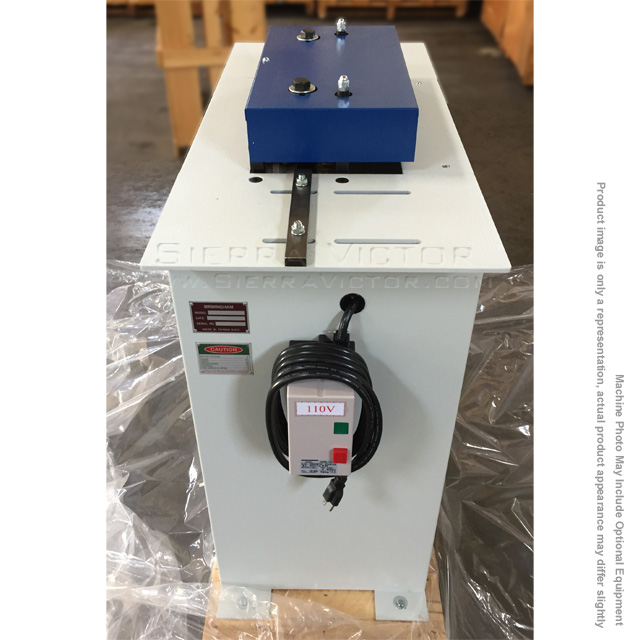

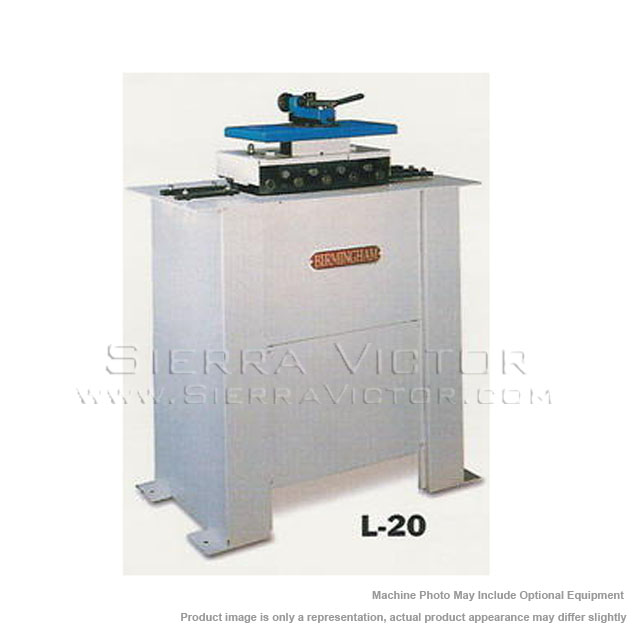

BIRMINGHAM 20-26 ga. Lock Forming Machine L-20
ITEM: 20 - 26 Ga. Lock Forming Machine
MANUFACTURER: BIRMINGHAM
MODEL: L-20
Manufacturer:
Birmingham
Machine Type
Machine Category:
Pittsburgh/Lock/Roll Formers
Metalworking
Mild Steel Capacity:
20 ga
|
Capacity
|
20 to 26 Ga. Use approximately 1" of material
|
|
Depth of pocket
|
5/16" width of hammer-over edge adjustable up to 3/8"
|
|
Speed
|
25 feed per minute
|
|
Motor
|
1 HP 110V, single phase
|
|
Drive
|
V-belt
|
|
Stand
|
ARC welded steel. Heavy top plate
|
|
Dimensions
|
36" x 16.5" x 36.5"
|
|
Net weight
|
Approximately 320 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
