- Description
- High carbon, high chrome shear blades
- Manual quick change blade gap adjustment
- Front controlled power backgauge
- Hydraulic, electrical overload protection
- Automatic swing - up backgauge
- Swing beam design
- Operator control console
- Low noise gear pump
- Pressure sensing hold-downs
- Hold-downs faced with anti-mar neoprene
- Shadow lighting
- Stroke counter
- Electric stroke adjustment
- Blade guard, micro switch protection
- Bolt on table segments
- 1" Ball transfers
- Squaring arm, 43-1/2" from blade to end
- 3 Support arms

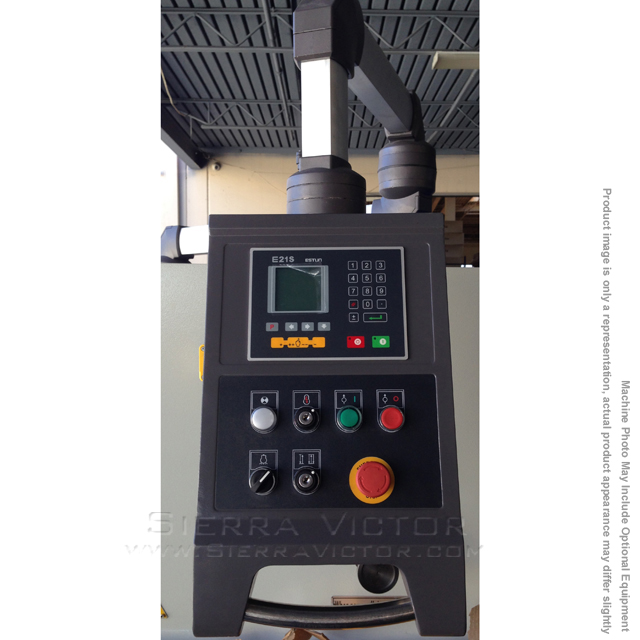

- E21S Front control Power Back gauge
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight
- Video

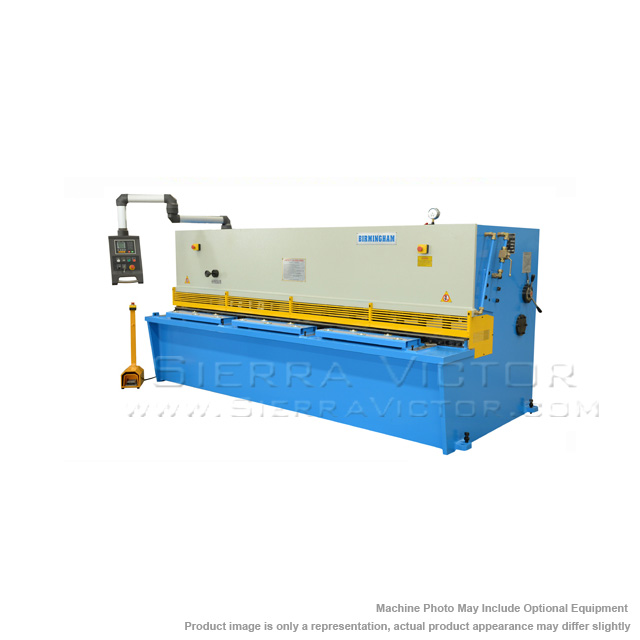

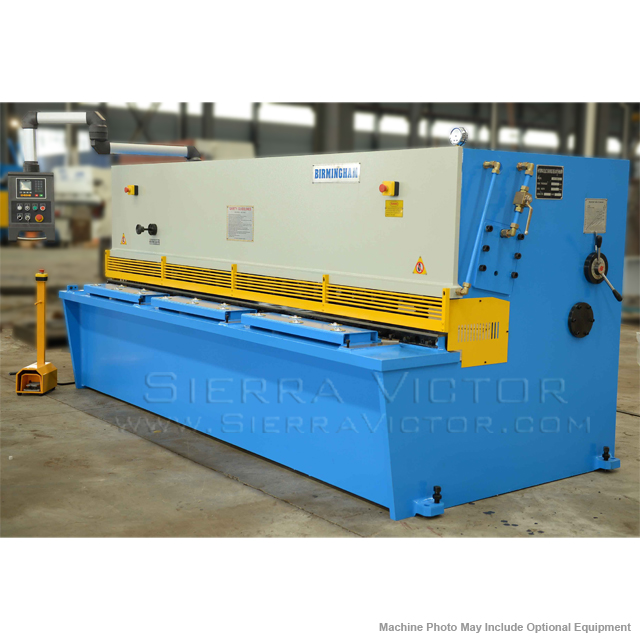

BIRMINGHAM 10' x 3/8" Heavy Duty Hydraulic Shear H-1095-C
EQUIPPED WITH:
ITEM: 10' x 3/8" Heavy Duty Hydraulic Shear
MANUFACTURER: BIRMINGHAM
MODEL: H-1095-C
Manufacturer:
Birmingham
Machine Type
Machine Category:
Shears
Power Source:
Hydraulic
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
3/8"
Shear Thickness
|
10' x 3/8"
|
||
Cutting Capacity
|
Smallest Thickness
|
Mild Steel
|
0.5mm
|
Stainless Steel
|
0.5mm
|
||
Aluminum
|
0.5mm
|
||
Biggest Thickness
|
Mild Steel
|
10mm
|
|
Stainless Steel
|
5mm
|
||
Aluminum
|
14mm
|
||
Shear Width
|
10 ft
|
||
Shear Angle
|
1 Deg. 30'
|
||
Height of the Work Table
|
35-3/8"
|
||
Number of Stroke
|
10
|
||
Range of back gauge
|
20~600mm (3/4" - 24")
|
||
Motor power
|
20 HP, 3PH, 220V/440V
|
||
Oil Tank Capacity
|
300L (80 ga)
|
||
Net weight (lbs)
|
18,300 lbs.
|
||
Dimensions (L x W x H)
|
151-1/2" x 72-7/8" x 69-1/4"
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL 386-304-3720 FOR MORE INFORMATION
