- Description
- Spring hold downs
- Two 24" front support arms
- 24" manual back gauge with wheel
- Safety full length finger guard
- High grade, high carbon / chrome
- Toolbox and leveling pads
- 2-edge upper blade & edge bottom
- Two 14" side gauges (R/L) with dual scales
- Removable foot control pedal with safety protection
- Fully hydraulic control and safety protection system

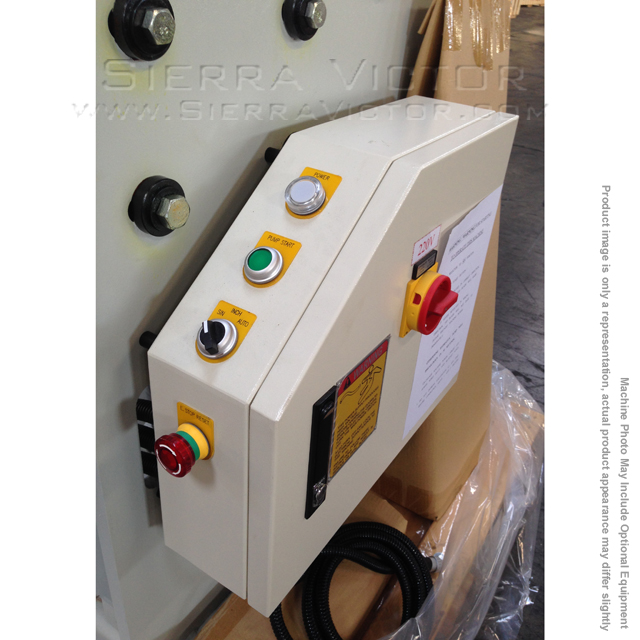

- Electrical control selection for single / continuous mode
- Blades
- 24" Manual back gauge
- (2) 24" Front support arms
- (2) 14" Side gauges (R/L) with dual scales
- Finger guard
- Spring hold downs
- Removable foot control pedal with safety protection and tools
- Manufacturer
- Specifications
- Custom Freight

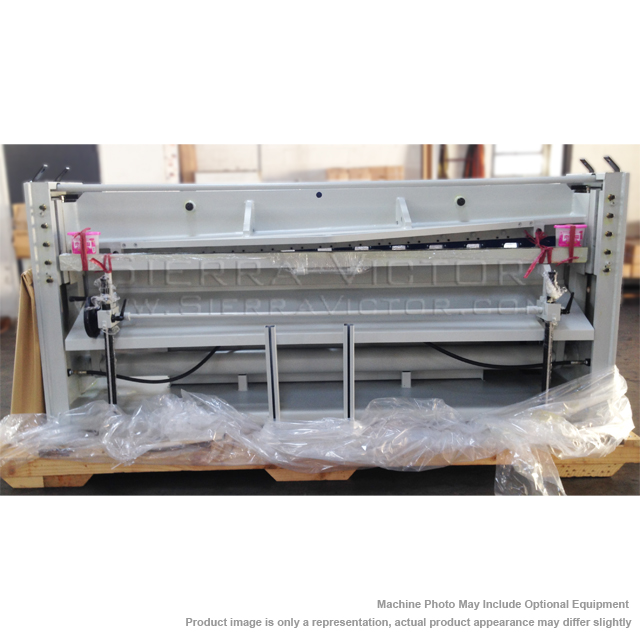

BIRMINGHAM 8' x 10 ga. Deluxe Hydraulic Shear H-8010
STANDARD ACCESSORIES:
BIRMINGHAM Deluxe Hydraulic Shear H-8010
ITEM: 81" x 10 ga Deluxe Hydraulic Shear
MANUFACTURER: BIRMINGHAM
MODEL: H-8010
Manufacturer:
Birmingham
Machine Type
Machine Category:
Shears
Power Source:
Hydraulic
Metalworking
Material Length:
5 ft (60 in.+)
Mild Steel Capacity:
10 ga
Stainless Steel Capacity:
13 ga
|
MODEL
|
H-8010
|
|
Cutting Length
|
81"
|
|
Mild Steel
|
10 GA
|
|
Stainless Steel
|
13 GA
|
|
Strokes Per Minute (S.P.M.)
|
24
|
|
Rake Angle
|
1° 40'
|
|
Front Gauge
|
24"
|
|
Back Gauge
|
24"
|
|
Motor
|
5 HP
|
|
Dimensions approx.
|
105" x 36" x 55"
|
|
Net Weight (lbs)
|
4,000
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
