- Description
- MADE IN TAIWAN
- Well balanced and sturdy welded machine frame provides constant stability and rigidity
- The centralized hydraulic logical system offers the best performance with a quiet hydraulic pump
- Independent hydraulic pressure hold-downs synchronized with upper blade, ensuring the work piece is securely clamped at the moment of cutting
- High grade carbon/chrome alloy steel blades ensure maximum accuracy cutting and longer blade life, 60hrc hardened
- Blade clearance (gap) setting can be easily and quickly done by adjusting handle. (Standard for H-0445 and heavier models)
- Hydraulic adjustable rake angle design is a standard feature for all models, this allows the operator to obtain best rake angle for each application and minimize possible bowing and twisting
- Adjustable cutting length and stroke
- Shadow line lighting covering full length of worktable, this is very helpful to operator for positioning and shearing work piece
- Worktable mounted with ball transfer type plates, for easier loading and moving work piece
- Full-length and full view safety finger guard, to protect operator from cutting hazard
- Removable foot remote pedal is fitted with safety protection, the upper blade beam will rise to top position immediately, when the operator removes off his foot from the pedal
- All motors and pumps are overload protected
- Jog, single, or continuous cutting modes
- Blades
- 24" Manual Back Gauge
- 40" Front Support Arm
- 40" Squaring Arm
- Finder Guard
- Foot Pedal
- Shadow Line Lighting
- High grade, high carbon/chrome 2-edge upper blade, and 4-edge bottom blade, 60hrc.
- Hydraulic rake angle adjustment.
- Two 40” front support arms with front setters
- One 40” squaring arm with dual scale
- 24” manual back gauge with dual scales and crank wheel
- Full length finger guard and shadow line lighting
- Hydraulic independent hold-downs
- Overload protected hydraulic system
- Removable foot control pedal with safety protection
- Full electrics & cabinet with operation panel
- Tool box and leveling pads.
- Manufacturer
- Product Features
- MADE IN TAIWAN
- Well balanced and sturdy welded machine frame provides constant stability and rigidity
- The centralized hydraulic logical system offers the best performance with a quiet hydraulic pump
- Independent hydraulic pressure hold-downs synchronized with upper blade, ensuring the work piece is securely clamped at the moment of cutting
- High grade carbon/chrome alloy steel blades ensure maximum accuracy cutting and longer blade life, 60hrc hardened
- Blade clearance (gap) setting can be easily and quickly done by adjusting handle. (Standard for H-0445 and heavier models)
- Hydraulic adjustable rake angle design is a standard feature for all models, this allows the operator to obtain best rake angle for each application and minimize possible bowing and twisting
- Adjustable cutting length and stroke
- Shadow line lighting covering full length of worktable, this is very helpful to operator for positioning and shearing work piece
- Worktable mounted with ball transfer type plates, for easier loading and moving work piece
- Full-length and full view safety finger guard, to protect operator from cutting hazard
- Removable foot remote pedal is fitted with safety protection, the upper blade beam will rise to top position immediately, when the operator removes off his foot from the pedal
- All motors and pumps are overload protected
- Jog, single, or continuous cutting modes
- Blades
- 24" Manual Back Gauge
- 40" Front Support Arm
- 40" Squaring Arm
- Finder Guard
- Foot Pedal
- Shadow Line Lighting
- High grade, high carbon/chrome 2-edge upper blade, and 4-edge bottom blade, 60hrc.
- Hydraulic rake angle adjustment.
- Two 40” front support arms with front setters
- One 40” squaring arm with dual scale
- 24” manual back gauge with dual scales and crank wheel
- Full length finger guard and shadow line lighting
- Hydraulic independent hold-downs
- Overload protected hydraulic system
- Removable foot control pedal with safety protection
- Full electrics & cabinet with operation panel
- Tool box and leveling pads.
- Specifications
- Custom Freight
- Video

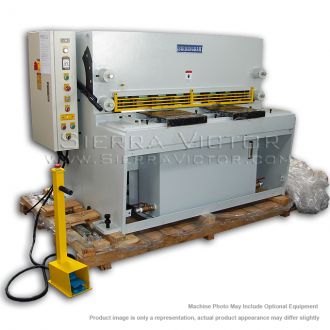

BIRMINGHAM Heavy Duty Hydraulic Shear H-0465
STANDARD ACCESSORIES:
EQUIPPED WITH:
BIRMINGHAM Heavy Duty Hydraulic Shear H-0465
ITEM: 4' x 1/4" Heavy Duty Hydraulic Shear
MANUFACTURER: BIRMINGHAM
MODEL: H-0465
Manufacturer:
Birmingham
Machine Type
Machine Category:
Shears
Power Source:
Hydraulic
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
1/4"
STANDARD ACCESSORIES:
EQUIPPED WITH:
|
MODEL
|
H-0465
|
|
Cutting Capacity
|
4'
|
|
Mild Steel
|
1/4"
|
|
Dimensions approx.
|
91" x 48" x 63"
|
|
Net Weight (lbs)
|
4,800
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
