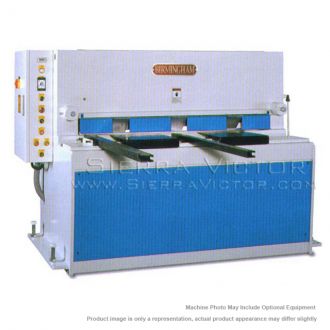

BIRMINGHAM 4' x 7 ga. Hydraulic Shear H-0445

• MADE IN TAIWAN
• Well balanced and sturdy welded machine frame provides constant stability and rigidity
• The centralized hydraulic logical system offers the best performance with a quiet hydraulic pump
• Independent hydraulic pressure hold-downs synchronized with upper blade, ensuring the work piece is securely clamped at the moment of cutting
• High grade carbon/chrome alloy steel blades ensure maximum accuracy cutting and longer blade life, 60hrc hardened
• Blade clearance (gap) setting can be easily and quickly done by adjusting handle. (Standard for H-0445 and heavier models)
• Hydraulic adjustable rake angle design is a standard feature for all models, this allows the operator to obtain best rake angle for each application and minimize possible bowing and twisting
• Adjustable cutting length and stroke
• Shadow line lighting covering full length of worktable, this is very helpful to operator for positioning and shearing work piece
• Worktable mounted with ball transfer type plates, for easier loading and moving work piece
• Full-length and full view safety finger guard, to protect operator from cutting hazard
• Removable foot remote pedal is fitted with safety protection, the upper blade beam will rise to top position immediately, when the operator removes off his foot from the pedal
• All motors and pumps are overload protected
• Jog, single, or continuous cutting modes

STANDARD ACCESSORIES:

• Blades
• 24" Manual Back Gauge
• 40" Front Support Arm
• 40" Squaring Arm
• Finder Guard
• Foot Pedal
• Shadow Line Lighting

EQUIPPED WITH:

• High grade, high carbon/chrome 2-edge upper blade, and 4-edge bottom blade, 60hrc.
• Hydraulic rake angle adjustment.
• Two 40” front support arms with front setters
• One 40” squaring arm with dual scale
• 24” manual back gauge with dual scales and crank wheel
• Full length finger guard and shadow line lighting
• Hydraulic independent hold-downs
• Overload protected hydraulic system
• Removable foot control pedal with safety protection
• Full electrics & cabinet with operation panel
• Tool box and leveling pads.
