- Description
- All rolls are made of polished, turned, and ground high grade carbon steel
- Gear-driven rolls
- Rigid construction for long life and precision operation.
- Front mounted handle to life upper toll for easy workpiece removal.
- Standard three wire grooves.
- Manufacturer
- Specifications
- Options/Accessories
- Stand for X-5016-C: $198
- Custom Freight

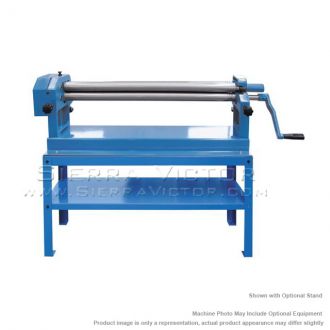

BIRMINGHAM Manual Slip Rolls X-5016-C
ITEM: 50" x 16 ga. Manual Slip Rolls
MANUFACTURER: BIRMINGHAM
MODEL: X-5016-C
Manufacturer:
Birmingham
Machine Type
Machine Category:
Slip Rolls
Control:
Manual
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
MODEL |
X-5016-C
|
Forming Width (inches) |
50
|
Capacity Mild Steel (gauge) |
16
|
Diameter of Roll (inches) |
3
|
3 Wire Grooves |
5/16, 3/8, 1/2
|
Forming Radius Min.(inches) |
1-1/2
|
Overall Dimensions (inches, LxWxH) |
67 x 17 x 22
|
Net Weight (lbs.) |
430 |
Gross Weight |
485 |
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
