- Description
- Made in Taiwan
- All three rolls are driven by hydraulic power
- Pinch roll cylinders are adjusted synchronously
- Pinch roll is hydraulic powered up/down with digital counter for showing pinch roll position
- All rolls are made of top-grade alloy steel hardened up to HRC55°
- Rigid construction for precise and smooth operation, and long life time usage

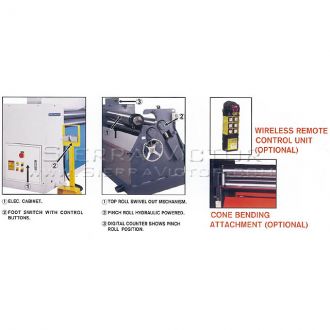

- The top roll can be swiveled out for easy removal of the finished workpiece
- Removable foot control pedal for forward/reverse, fitted with a protective housing
- NOTE: Bigger Model R-0835H and R-0850H are available on request .
- Manufacturer
- Specifications
- Options/Accessories
- Cone bending attachment
- Section bending attachment with profile roller
- Custom Freight
- Video

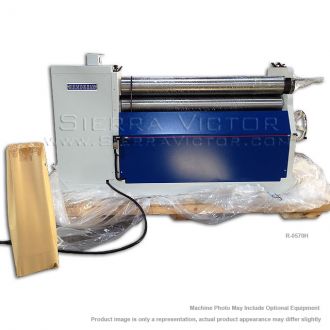

BIRMINGHAM 5' (60") x 9/32" Hydraulic Plate Roll R-0570H
ITEM: 5' (60") x 9/32" Hydraulic Plate Roll
MANUFACTURER: BIRMINGHAM
MODEL: R-0570H
Manufacturer:
Birmingham
Machine Type
Machine Category:
Plate Bending Rolls
Power Source:
Hydraulic
Metalworking
Material Length:
5 ft (60 in.+)
Mild Steel Capacity:
9/32"
|
Mild Steel Capacity
|
5'1' x 9/32"
|
|
Roll Length & Diameter
|
7" |
|
Hydraulic Powered Pinch adjustment
|
Standard
|
|
Motor
|
5 HP, 3 PHASE, 220V/440V
|
|
Roll Speed
|
2.37 m/min
|
|
Shipping Crate Size
|
108" x 47" x 59"
(2750 x 1200 x 1500mm) |
|
Shipping Weight
|
5,650 lbs. |
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
