- Description
- Made in Taiwan
- All three rolls are driven by hydraulic power
- Pinch roll cylinders are adjusted synchronously
- Pinch roll is hydraulic powered up/down with digital counter for showing pinch roll position
- All rolls are made of top-grade alloy steel hardened up to HRC55°
- Rigid construction for precise and smooth operation, and long life time usage

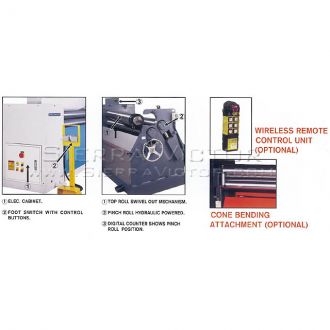

- The top roll can be swiveled out for easy removal of the finished workpiece
- Removable foot control pedal for forward/reverse, fitted with a protective housing
- NOTE: Bigger Model R-0835H and R-0850H are available on request .
- Manufacturer
- Specifications
- Options/Accessories
- Cone bending attachment
- Section bending attachment with profile roller
- Custom Freight
- Video

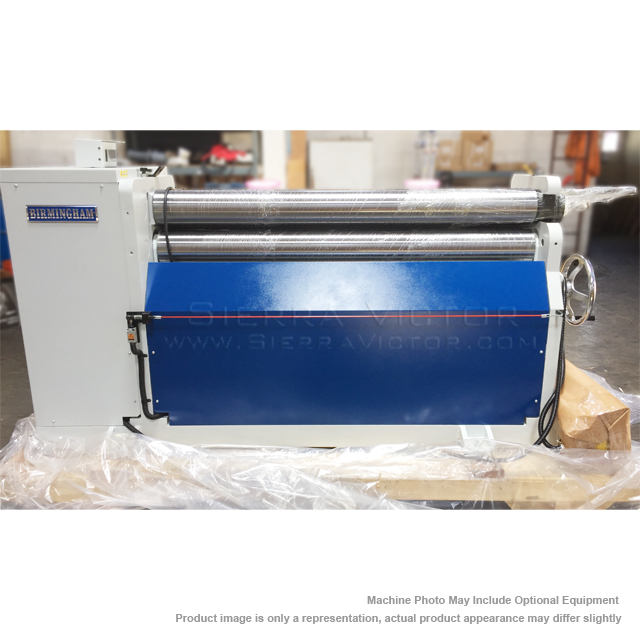

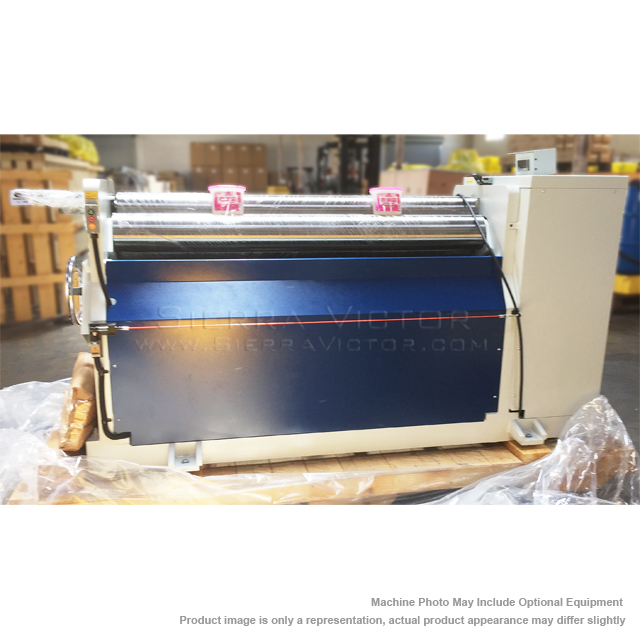

BIRMINGHAM 5' x 7 ga (3/16") Hydraulic Plate Bending Roll R-0545H
ITEM: 5' x 7 ga (3/16") Hydraulic Plate Bending Roll
MANUFACTURER: BIRMINGHAM
MODEL: R-0545H
Manufacturer:
Birmingham
Machine Type
Machine Category:
Plate Bending Rolls
Power Source:
Hydraulic
Metalworking
Material Length:
5 ft (60 in.+)
Mild Steel Capacity:
7 ga
|
Mild Steel Capacity
|
5'1" x 7 ga (3/16")
|
|
Roll Length & Diameter
|
5-7/8"
|
|
Motor
|
3 HP, 3 PHASE, 220V/440V
|
|
Pinch Adjustment
|
Standard
|
|
Shipping Crate Size
|
94" x 32" x 51"
|
|
Net Weight
|
5,400 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
