- Description
- R8 Spindle
- 9" x 49" Table
- Variable Speeds
- High Grade Cast Iron Frame
- Dovetail Guideways
- Ground work Table T-slots
- Hardened & Ground Ways
- Hardened & Ground Table
- Built-in Coolant Body
- Tilting & Rotating Head
- Chromed Ground Quill
- Hand & Power Spindle Feeds
- Tool Box - 1 set
- Front chip guard - 1 pc
- Rear chip guard - 1 pc
- Draw bar - 1 pc
- One shot lube
- Manufacturer
- Specifications
- Options/Accessories
- Coolant System
- Power Feed for X, Y, Z
- Halogen Work Light
- Electric Control Box
- Cutter Holder
- Clamping Kit Set
- Digital Readout
- Base Coolant Drop Pan
- Power Air Draw Bar Unit
- Vise
- NMTB #30 Spindle
- Custom Freight

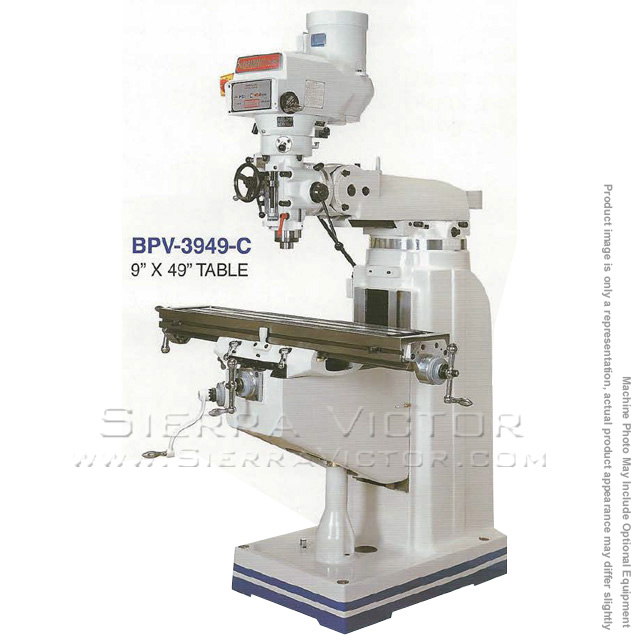

BIRMINGHAM 9" x 49" Variable Speed Vertical Knee Mill BPV-3949-C
EQUIPPED WITH:
ITEM: 9" x 49" Variable Speed Vertical Knee Mill
MANUFACTURER: BIRMINGHAM
MODEL: BPV-3949-C
Manufacturer:
Birmingham
Machine Type
Machine Category:
Mills
Machine Sub-Category:
Vertical Knee
Control:
Variable Speed
Metalworking
Mill Capacity:
9" x 49"
|
Table Size
|
9" x 49"
|
|
Table Load Capacity
|
600 lbs.
|
|
Table T-slot Size
|
5/8" x 3
|
|
Longitudinal Travel (Hand Only)
|
35-1/2"
|
|
Longitudinal Travel (w/ Power Feed)
|
33"
|
|
Cross Travel
|
13-1/4"
|
|
Vertical Travel
|
16"
|
|
Ram Travel
|
12"
|
|
Quill Feed Speeds
|
0.0015", 0.003", 0.006"/rev
|
|
Quill Travel
|
5"
|
|
Spindle Taper
|
R8
|
|
Quill Diameter
|
3-3/8"
|
|
Head Swivel RH/LH
|
90° / 90°
|
|
Head Tilting F/B
|
45° / 45°
|
|
Ram Turret Swivel
|
360°
|
|
Spindle Motor
|
3HP, 3Ø (3HP, 1Ø) specify
|
|
Power
|
220V/440V dual, 3Ø (220V, 1Ø) specify
|
|
Spindle Speeds Type
|
Vari-speed
|
|
Spindle Speeds (RPM)
|
60 - 4,300 (Vari)
|
|
Overall Dim. (LxWxH)
|
86" x 69" x 67"
|
|
Net Weight
|
2,600 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
