- Description
- R8 Spindle
- 10" x 54" Table
- Step pulley, 16 Speeds (8 speeds for 1Ø)
- High Grade Cast Iron Frame
- Box ways on Y axis & Z column
- Ground work Table T-slots
- Hardened & Ground Ways
- Hardened & Ground Table
- Ground work table T-Slots
- Built-in Coolant Body
- Tilting & Rotating Head
- Chromed Ground Quill
- Hand & Power Spindle Feeds
- Tool Box - 1 set
- Front chip guard - 1 pc
- Rear chip guard - 1 pc
- Draw bar - 1 pc
- One shot lube
- Manufacturer
- Specifications
- Options/Accessories
- Coolant System
- Power Feed for X, Y, Z
- Halogen Work Light
- Electric Control Box
- Cutter Holder
- Clamping Kit Set
- Digital Readout
- Base Coolant Drop Pan
- Power Air Draw Bar unit
- Vise
- NMTB #30 Spindle
- Custom Freight

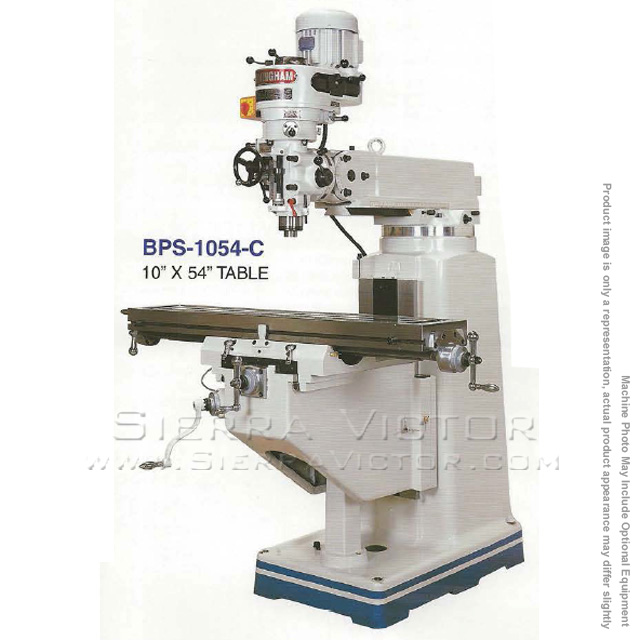

BIRMINGHAM 10" x 54" Step Pulley Vertical Knee Mill 16 Speed BPS-1054-C
STANDARD EQUIPMENT:
ITEM: 10" x 54" Step Pulley Vertical Knee Mill 16 Speed
MANUFACTURER: BIRMINGHAM
MODEL: BPS-1054-C
Manufacturer:
Birmingham
Machine Type
Machine Category:
Mills
Machine Sub-Category:
Vertical Knee
|
Table Size
|
10" x 54"
|
|
Table Load Capacity |
800 lbs. |
|
Table T-slot Size |
5/8" x 3 |
|
Longitudinal Travel (Hand Only)
|
38"
|
|
Longitudinal Travel (w/ Power Feed)
|
34-1/4"
|
|
Cross Travel
|
18"
|
|
Vertical Travel
|
18"
|
|
Ram Travel
|
18" |
|
Quill Feed Speeds
|
0.0015", 0.003", 0.006"/rev |
|
Quill Travel |
5" |
|
Spindle Taper |
R8 |
|
Quill Diameter |
3-3/8" |
|
Head Swivel RH/LH |
90 ° / 90 ° |
|
Head Tilting F/B |
45 ° / 45 ° |
|
Ram Turret Swivel |
360 ° |
|
Spindle Motor |
3HP 3Ø (2 HP, 1Ø 8 Speeds) specify |
Power |
220V or 440V, 3Ø (220V,1Ø) specify |
|
Spindle Speeds Type |
Step Pulley |
|
Spindle Speeds (RPM) |
90 - 5,600 (16 Speeds) |
90 - 2,800 (8 Speeds) |
|
|
Overall Dim. (LxWxH) |
89" x 81" x 72" |
|
Net Weight |
3,500 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEARS - Parts
CALL FOR PRICE:
