- Description
- 10" 3 JAW CHUCK
- 12" 4 JAW CHUCK
- FACE PLATE
- 5-1/8" STEADY REST W/ ROLLER JAWS
- 4-8/9" FOLLOW REST
- GAP
- 4 WAY TOOL POST
- THREADING CHASING DIAL
- ( 2 ) DEAD CENTERS
- REDUCING SLEEVE
- FULL LENGTH SPLASH GUARD
- ONE PIECE CAST IRON BASE
- FOOT BRAKE
- HALOGEN WORK LIGHT
- COOLANT SYSTEM
- LEVELING PADS
- 4 POSITION AUTO KICK-OUT LONGITUDINAL CARRIAGE TOOL BOX
- TAPER TURN ATTACHMENT
- Manufacturer
- Specifications
- Options/Accessories
- 5C COLLET CHUCK (FRONT OPERATE) D1-6 MOUNT
- * DIGITAL READOUT: " NEWALL DP-700 " OR " UNIQ IMPORT"
- Custom Freight

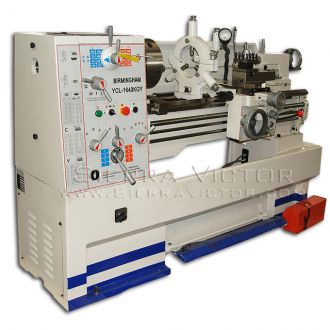

BIRMINGHAM 16" x 60" Precision Gap Bed Lathe YCL-1660KGY
ITEM: 16" x 60" Precision Gap Bed Lathe
MANUFACTURER: BIRMINGHAM
MODEL: YCL-1660KGY
STANDARD EQUIPMENT:
Manufacturer:
Birmingham
Lathes
Lathe Size:
16" x 60"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Gap Bed
MODELS |
YCL-1660KGY |
|
CAPACITY |
Swing over bed |
16" (410mm) |
Swing Over Cross Slide |
10" |
|
Swing in gap |
23-1/4" (590mm) |
|
Distance between centers |
60" |
|
Center height |
42.2" (1073mm) |
|
Width of bed |
10" |
|
HEADSTOCK |
Spindle nose |
D1-6 |
Spindle nose |
2" (52mm) |
|
Taper of spindle bore |
No.6 Morse |
|
Range of spindle speeds |
16 changes 45-1800r/min |
|
THREADS & FEEDS |
Max. travel of compound rest |
4" |
Max. travel of cross slide |
8-1/4" |
|
Leadscrew pitch |
4 T.P.I. |
|
Max. Section of tool |
13/16" |
|
Longitudinal feeds range |
0.05-1.7mm/rev |
|
Cross feeds range |
0.025-0.85mm/rev |
|
Metric threads range |
39 kinds 0.2-14mm |
|
Inch threads range |
45 kinds 272 T.P.I. |
|
Diametrical pitches range |
21 kinds 8-44 D.P. |
|
Module pitches range |
18 kinds 0.3-3.5 M.P. |
|
TAILSTOCK |
Travel of tailstock sleeve |
4-3/4" |
Morse taper of tailstock sleeve |
No. 4 Morse |
|
Cross adjustment |
±12" (±13mm) |
|
MOTOR |
Power of main motor |
6 HP / 3 PH, 220V |
Power of coolant pump |
1/8 HP, 3 ph |
|
WEIGHT & DIMENSIONS |
Gross Weight |
4,500 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL THE PRICE:
