- Description
- 5 HP Main Motor (7-1/2 HP Optional)
- One-piece cast iron base
- No change gears required
- 12 Speeds from 25 - 2,000 RPM
- D1-6 Spindle with 2-9/32" bore
- 60 kinds of inch threads from 112-2 TPI
- Main spindle hardened & precision ground
- Bed made of fine grain high tensile cast iron
- Bedways induction hardened & precision ground
- All gears & shafts hardened & precision ground
- Main spindle supported at 3-point by precision bearings
- Follow Rest
- 14" Face Plate
- 7-1/2" Steady Rest
- 10" 3-Jaw Chuck
- 12" 4-Jaw Chuck
- Operation and Parts Manuals
- Coolant System
- Halogen Work Light
- Removable Gap
- 4-way Tool Post
- Thread Chasing Dial
- Hand Oil Pump for Ways
- Centers and Sleeve
- Tool Kit wih Tools
- Automatic Kick-Out Longitudinal Carriage Stop
- Full Length Foot Brake
- Full Length Splash Guard
- Manufacturer
- Specifications
- Options/Accessories
- 2 Axis DRO...... $1,750 FREE Install
- Taper Turning Attachment
- Quick Tool Changer
- 5-C Lever Type Collect Closer
- Custom Freight

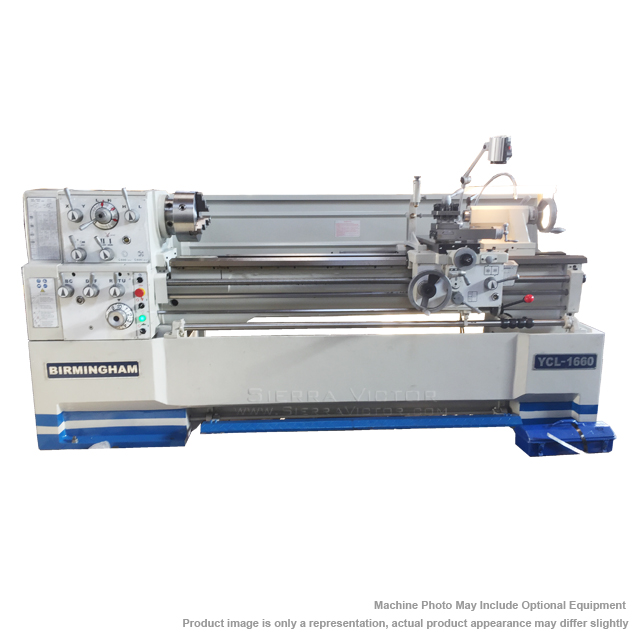

BIRMINGHAM 16 x 40 - 60 in. Precision Gap Bed Lathes YCL-1640 / YCL-1660
STANDARD EQUIPMENT:
ITEM: 16 x 40 - 60 in. Precision Gap Bed Lathes
MANUFACTURER: BIRMINGHAM
MODEL: YCL-1640 / YCL-1660
Manufacturer:
Birmingham
Lathes
Lathe Size:
16" x 40"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Gap Bed
SPECIFICATIONS - YCL-1640
SPECIFICATIONS - YCL-1660
CAPACITY
|
Max. swing over bed
|
16-1/8"
|
Max. length of workpiece
|
40"
|
|
Max. swing over carriage
|
8-13/16"
|
|
Max. swing in gap
|
25-3/16"
|
|
Effective length in gap
|
9-1/2"
|
|
Width of bed
|
11-13/16"
|
|
HEADSTOCK
|
Spindle nose
|
D1-6
|
Diameter of spindle thru bore
|
2-9/32"
|
|
Taper of spindle center
|
MT #6 (sleeve #6 / #4)
|
|
Spindle speeds
|
25 - 2000 rpm, 12 steps
|
|
FEEDS & THREADS
|
Longitudinal feeds
|
.0011" - .0633" / rev., 42 kinds
|
Cross feeds
|
.00033" - .01837" / rev., 42 kinds
|
|
Metric threads
|
0.1 - 14mm, 41 kinds
|
|
Inch threads
|
112 - 2 TPI, 60 kinds
|
|
Module threads
|
0.1 - 7mm, 34 kinds
|
|
Diametral pitch threads
|
112 - 4 DP, 50 kinds
|
|
CARRIAGE
|
Max. travel of cross slide
|
12-3/16"
|
Max. travel of top slide
|
5"
|
|
TAILSTOCK
|
Diameter of tailstock quill
|
2-3/8"
|
Taper of tailstock quill center
|
MT #4
|
|
Max. travel of tailstock quill
|
4-13/16"
|
|
MOTORS
|
Power of main motor
|
5 HP (7-1/2 HP optional)
|
Power of coolant pump
|
1/8 HP
|
|
MISCELLANEOUS
|
Overall dimensions approx.
(L x W x H) |
86" x 41" x 53"
|
Net weight, approx (lbs.)
|
4,100
|
CAPACITY
|
Max. swing over bed
|
16-1/8"
|
Max. length of workpiece
|
60"
|
|
Max. swing over carriage
|
8-13/16"
|
|
Max. swing in gap
|
25-3/16"
|
|
Effective length in gap
|
9-1/2"
|
|
Width of bed
|
11-13/16"
|
|
HEADSTOCK
|
Spindle nose
|
D1-6
|
Diameter of spindle thru bore
|
2-9/32"
|
|
Taper of spindle center
|
MT #6 (sleeve #6 / #4)
|
|
Spindle speeds
|
25 - 2000 rpm, 12 steps
|
|
FEEDS & THREADS
|
Longitudinal feeds
|
.0011" - .0633" / rev., 42 kinds
|
Cross feeds
|
.00033" - .01837" / rev., 42 kinds
|
|
Metric threads
|
0.1 - 14mm, 41 kinds
|
|
Inch threads
|
112 - 2 TPI, 60 kinds
|
|
Module threads
|
0.1 - 7mm, 34 kinds
|
|
Diametral pitch threads
|
112 - 4 DP, 50 kinds
|
|
CARRIAGE
|
Max. travel of cross slide
|
12-3/16"
|
Max. travel of top slide
|
5"
|
|
TAILSTOCK
|
Diameter of tailstock quill
|
2-3/8"
|
Taper of tailstock quill center
|
MT #4
|
|
Max. travel of tailstock quill
|
4-13/16"
|
|
MOTORS
|
Power of main motor
|
5 HP (7-1/2 HP optional)
|
Power of coolant pump
|
1/8 HP
|
|
MISCELLANEOUS
|
Overall dimensions approx.
(L x W x H) |
107" x 41" x 53"
|
Net weight, approx (lbs.)
|
5,100
|
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
