- Description
- No change gear in tool box.
- The thread category complete, not only cutting metric thread and imperial thread, but also cutting diametric thread and module thread.
- Minimum Cross feed 0.01mm/rev, Minimum Longitudinal feed 0.046mm/rev.
- No remove gap
- Has no taper turn attachment
- Reduction Sleeve 5/3#
- Center MT3#(Dead Center, Alloy Center)
- Three Jaw Chuck 160mm
- Four Jaw Chuck
- Chip Tray
- Splash Guard
- Tool Box & Tools 1set
- Face Plate
- Steady Rest
- Follow Rest
- Brake
- Coolant System
- Work Light
- Manufacturer
- Specifications
- Options/Accessories
- Quick Change Tool Post
- Taper Turning Attachment
- Live Center
- Drill Chuck
- Chuck Cover
- Tool Post Cover
- Leadscrew Cover
- Driving Plate
- Custom Freight
- Video

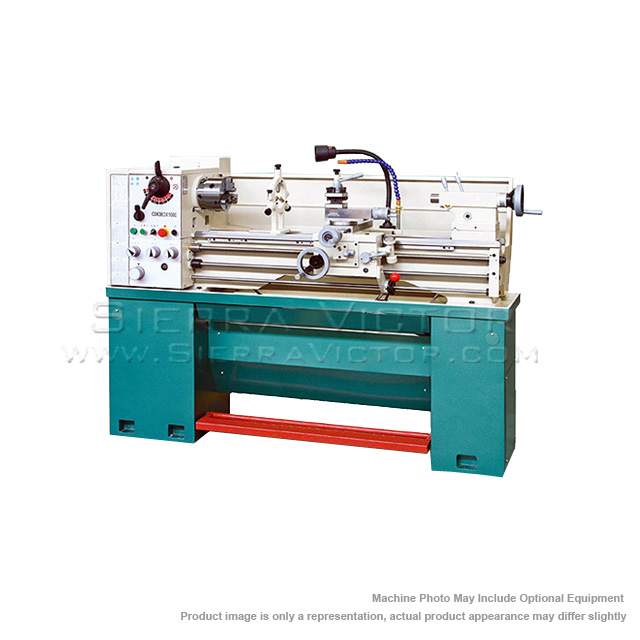

BIRMINGHAM 14" x 40" Precision Gear Head Lathe YCL-1440KGY
STANDARD EQUIPMENT:
ITEM: 14" x 40" Precision Gear Head Lathe
MANUFACTURER: BIRMINGHAM
MODEL: YCL-1440KGY
Manufacturer:
Birmingham
Lathes
Lathe Size:
14" x 40"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Geared Head
|
Swing over bed
|
14"
|
|
Swing over cross slide
|
8-13/16"
|
|
Center height
|
7"
|
|
Admits between
|
750mm (30") or 1000mm (40")
|
|
Spindle bore
|
1-1/2"
|
|
Spindle nose
|
D1-4 or D1-5
|
|
Taper in nose
|
No 5 Morse
|
|
Speeds number
|
8
|
|
Speeds range
|
70-2000 r/min
|
|
Cross slide travel
|
170mm (6-11/16")
|
|
Compound rest travel
|
95mm (3-9/16")
|
|
Lead screw thread
|
8T.P.I. or 3mm pitch
|
|
Feed rod diameter
|
3/4"
|
|
Cutting tool max section
|
5/8" x 5/8"
|
|
Threads imperial pitches
|
42 Nos. 4-112T.P.I
|
|
Threads metric pitches
|
44 Nos. 0.1-7mm
|
|
Threads diametral pitches
|
25 Nos. 16-112DP
|
|
Threads module pitches
|
34 Nos. 0.1-1.75MP
|
|
Longitudinal feeds imperial
|
24 Nos. 0.00168-0.1175"/rev
|
|
Longitudinal feeds metric
|
24 Nos. 0.046-3.249 mm/rev
|
|
Cross feeds imperial
|
32 Nos. 0.00046-0.03231"/rev
|
|
Cross feeds metric
|
24 Nos. 0.01-0.703 mm/rev
|
|
Quill diameter
|
32mm(1-1/4") or 42mm (1-21/32")
|
|
Quill travel
|
100mm (3-15/16")
|
|
Quill taper
|
Quill taper
|
|
Main motor power
|
2 HP, 220V, 1ph or 3ph (specify)
|
|
Coolant pump power
|
1/16 HP
|
|
NG/GW (kg)
|
510/630 or 540/645
|
|
Packing size (cm)
|
168 ×76 ×153 (750mm)
or 193×76×153 (1000mm) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEARS - Parts
