- Description
- Bending angle adjustable mechanism, angle range from 0-135 degrees.
- 24" manual back gauge with slide and lock for all hydraulic box and ban brakes
- Adjustable table crowning mechanism, for 3.5mm thickness models
- Rigid machine base design for 3.5mm thickness models
- Manufacturer
- Specifications
- Custom Freight
- Video

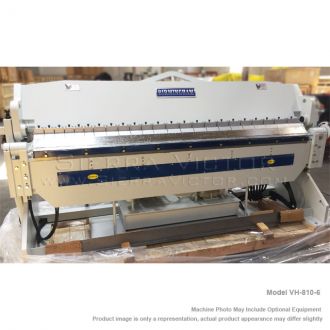

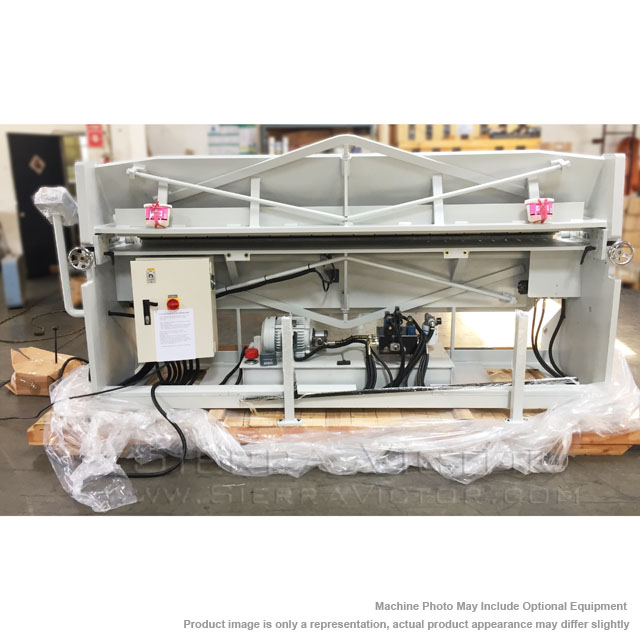

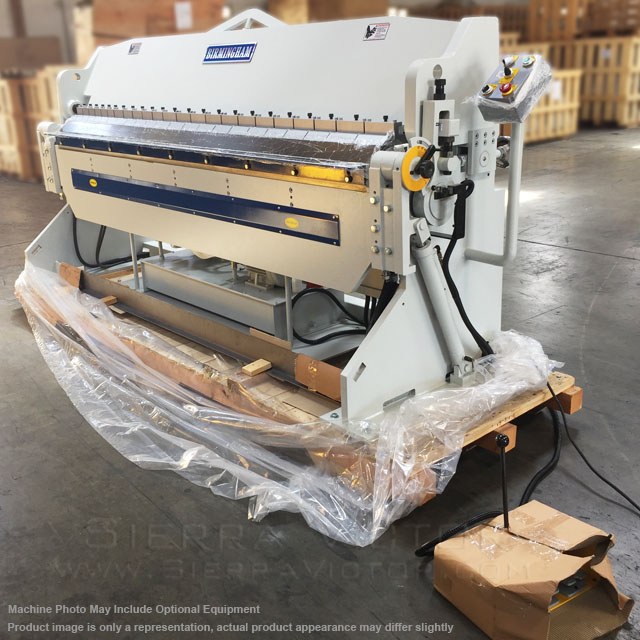

BIRMINGHAM Hydraulic Box and Pan Brake VH-812-6
ITEM: 8' (96") x 12 ga Hydraulic Box and Pan Brake
MANUFACTURER: BIRMINGHAM
MODEL: VH-812-6
Manufacturer:
Birmingham
Machine Type
Machine Category:
Brakes - Box & Pan
Power Source:
Hydraulic
Metalworking
Material Length:
8 ft (96 in.+)
Mild Steel Capacity:
12 ga
|
Bending Capacity
|
Bending Length
|
96" (8')
|
|
Mild steel
|
12 ga
|
|
|
Stainless steel
|
16 ga
|
|
|
Bending angle
|
0-135°
|
|
|
Beam adjustment
|
1"
|
|
|
Min. reverse bend
|
1/2"
|
|
|
Motor
|
3 HP
|
|
|
Packing size, inch
|
132" x 46" x 66"
|
|
|
Net weight, lbs
|
5,600
|
|
| STANDARD FINGER ASSORTMENT, WIDTH AND NUMBER OF FINGERS |
|
MODEL
|
VH-812-6
|
|
|
Size
|
3"
|
6
|
|
4"
|
4
|
|
|
5"
|
10
|
|
|
6"
|
2
|
|
|
TOTAL
|
22
|
|
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
