- Description
- Bending angle adjustable mechanism, angle range from 0-135 degrees.
- 24" manual back gauge with slide and lock for all hydraulic box and ban brakes
- Adjustable table crowning mechanism, for 3.5mm thickness models
- Rigid machine base design for 3.5mm thickness models
- Manufacturer
- Specifications
- Options/Accessories
- 32 in. Single axis, NC programmable power backgauge with Germany ELGO# P8511
- CE Conformity
- Metric specification machine on request
- Custom Freight
- Video

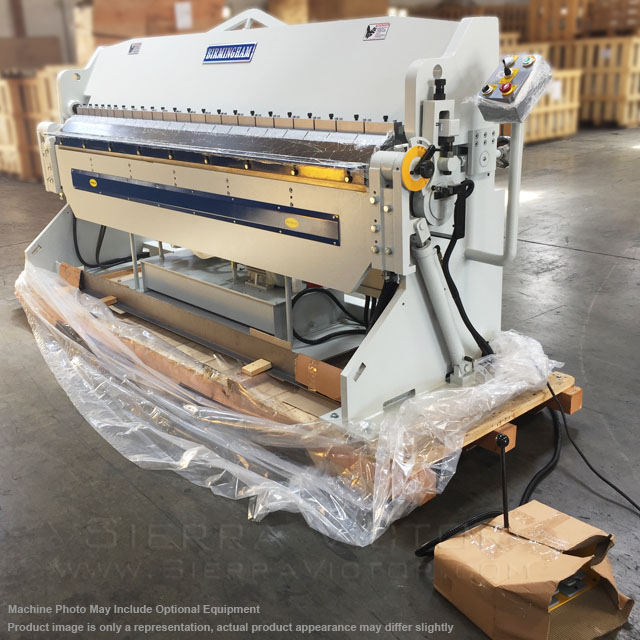

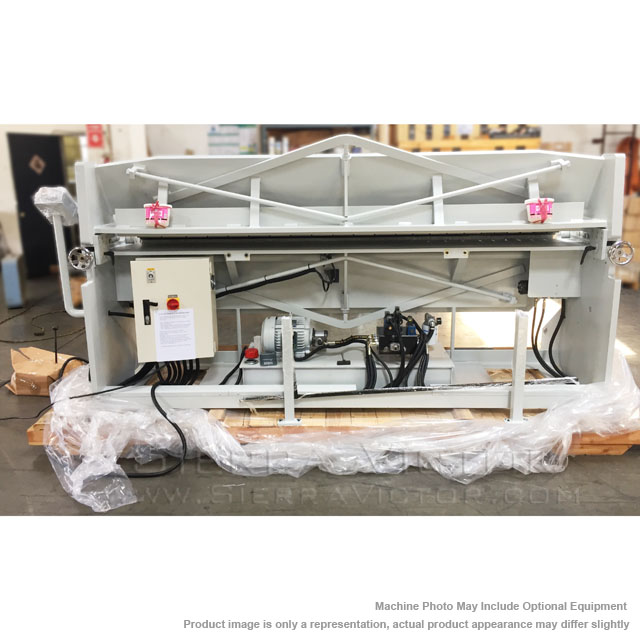

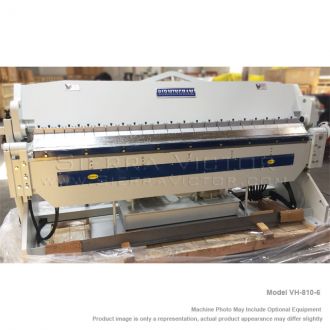

BIRMINGHAM 8 ft x 10 ga. Hydraulic Box and Pan Brake VH-810-6
ITEM: 8' (96") x 10 ga Hydraulic Box and Pan Brake
MANUFACTURER: BIRMINGHAM
MODEL: VH-810-6
Manufacturer:
Birmingham
Machine Type
Machine Category:
Brakes - Box & Pan
Power Source:
Hydraulic
Metalworking
Material Length:
8 ft (96 in.+)
Mild Steel Capacity:
10 ga
MODEL
|
VH-810-6 |
|
Bending Capacity |
Bending Length |
96 in. |
Mild steel |
10 ga |
|
Stainless steel |
12 ga |
|
Bending angle |
0-135° |
|
Beam adjustment |
1 in. |
|
Min. reverse bend |
5/8 in. |
|
Motor |
5 HP, 3-ph, 220/440v |
|
Packing size, inch |
132 x 46 x 71in. |
|
Net weight, lbs |
6,400 |
|
| STANDARD FINGER ASSORTMENT, WIDTH AND NUMBER OF FINGERS |
|
MODEL
|
VH-810-6
|
|
|
Size
|
3"
|
6
|
|
4"
|
4
|
|
|
5"
|
10
|
|
|
6"
|
2
|
|
|
TOTAL
|
22
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
