- Description

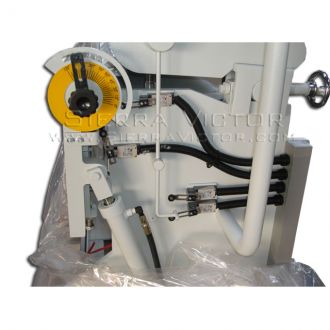

- Bending angle adjustable mechanism, angle range from 0-135 degrees.
- 24" manual back gauge with slide and lock for all hydraulic box and ban brakes
- Adjustable table crowning mechanism, for 3.5mm thickness models
- Rigid machine base design for 3.5mm thickness models
- Manufacturer
- Specifications
- Options/Accessories
- 32 in. Single axis, NC programmable power backgauge with Germany ELGO# P8511
- CE Conformity
- Metric specification machine on request
- Custom Freight
- Video

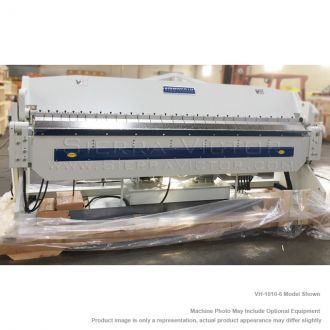

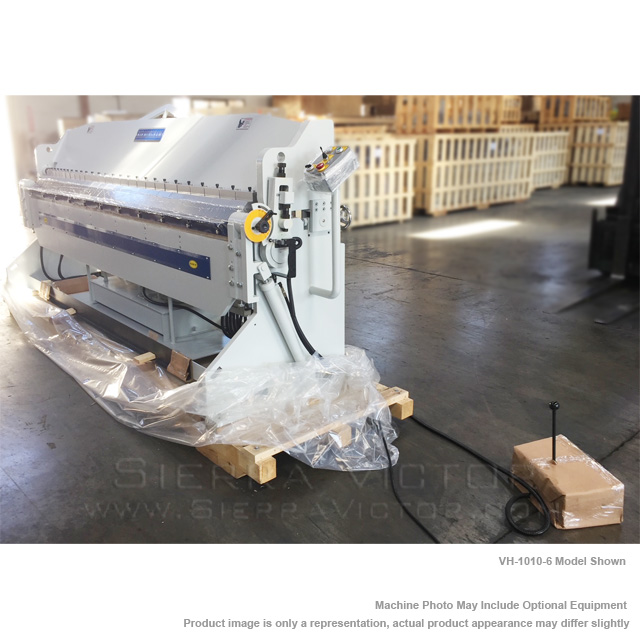

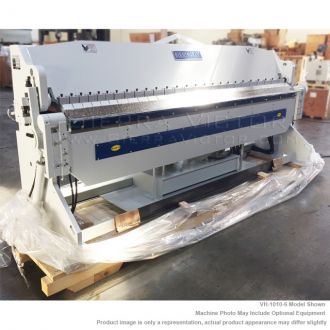

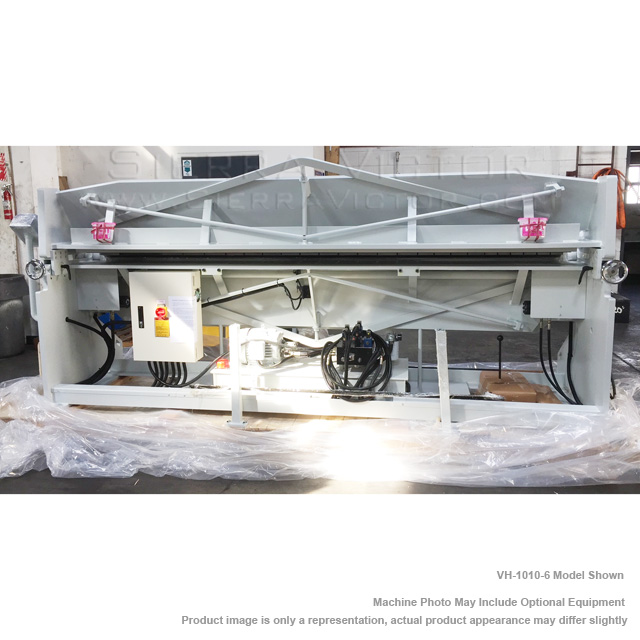

BIRMINGHAM Hydraulic Box and Pan Brake VH-1014-6
ITEM: 120" (10') x 14 ga Hydraulic Box and Pan Brake
MANUFACTURER: BIRMINGHAM
MODEL: VH-1014-6
Manufacturer:
Birmingham
Machine Type
Machine Category:
Brakes - Box & Pan
Power Source:
Hydraulic
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
14 ga
Stainless Steel Capacity:
18 ga
MODEL
|
VH-1014-6 |
|
Bending Capacity |
Bending Length |
120 in. |
Mild steel |
14 ga |
|
Stainless steel |
18 ga |
|
Bending angle |
0-135° |
|
Beam adjustment |
1 in. |
|
Min. reverse bend |
1/2 in. |
|
Motor |
3 HP, 3-ph, 220/440v |
|
Packing size, inch |
154 x 46 x 66 in. |
|
Net weight, lbs |
6,400 lbs. |
|
| STANDARD FINGER ASSORTMENT, WIDTH AND NUMBER OF FINGERS |
|
MODEL
|
VH-1014-6
|
|
|
Size
|
3"
|
6
|
|
4"
|
4
|
|
|
5"
|
10
|
|
|
6"
|
6
|
|
|
TOTAL
|
26
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
CALL FOR PRICE:
