Prices Valid on In Stock Machines Only
Limited Time Special - Only 1 In Stock!
- Description
- 2 HP wheel spindle motor
- Fine graduation on travels
- High precision cartridge wheel spindle
- High precision and smooth roller way table
- Auto lubrication on leadscrews and ways
- Fine grain high tensile casting construction
- Grinding wheel
- Grinding wheel flange
- Wheel balance arbor
- Diamond wheel dresser
- Working light system
- Tool box
- Hoisting set
- Leveling Pads
- Coolant/Dust system
- Standard permanent magnet chuck
- Manufacturer
- Specifications
- Options/Accessories
- Fineline magnet chuck
- Electrical magnet chuck with demagnet system
- Custom Freight

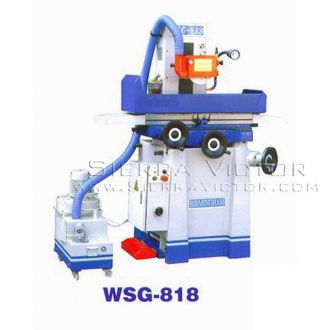

BIRMINGHAM 8" x 18" Manual Surface Grinder WSG-818
STANDARD EQUIPMENT:
ITEM: 8" x 18" Manual Surface Grinder
MANUFACTURER: BIRMINGHAM
MODEL: WSG-818
Manufacturer:
Birmingham
Machine Type
Machine Category:
Grinders - Surface
Control:
Manual
MODEL
|
WSG-818
|
Table size
|
8" x 18"
|
Max. Length to be ground
|
19-3/4"
|
Max. width to be ground
|
8-1/4"
|
Max. Height to be ground
|
19-3/4"
|
Max. distance from spindle center to table
|
15-3/4"
|
Max. Longitudinal travel
|
21-5/8"
|
Max. cross travel
|
9"
|
Longitudinal travel per revolution
|
3-15/16"
|
Cross Travel per revolution
|
0.2"
|
Cross travel per graduation
|
0.0008"
|
Vertical travel per revolution
|
0.05"
|
Vertical travel per graduation
|
0.00025"
|
Peripheral speed of wheel
|
110 ft/s
|
Spindle speed
|
3,600 RPM
|
Grinding Wheel Size
|
8" x 1/2" x 1-1/4"
|
Spindle Motor
|
2 HP
|
Dust Collector Motor
|
1/2 HP
|
Coolant Pump
|
0.05 HP
|
Lubrication Pump
|
0.02 HP
|
Net Weight
|
2,350 lbs.
|
Overall Dimensions (L x W x H)
|
59" x 47" x 72"
|
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
